Fuses and circuits
Fuse panel located in the passenger compart-
ment
27
28
29
30
31
32
33
20
21
22
23
24
25
26
13
14
15
16
17
18
19
6
7
8
9
10
11
12
1
2
3
4
5

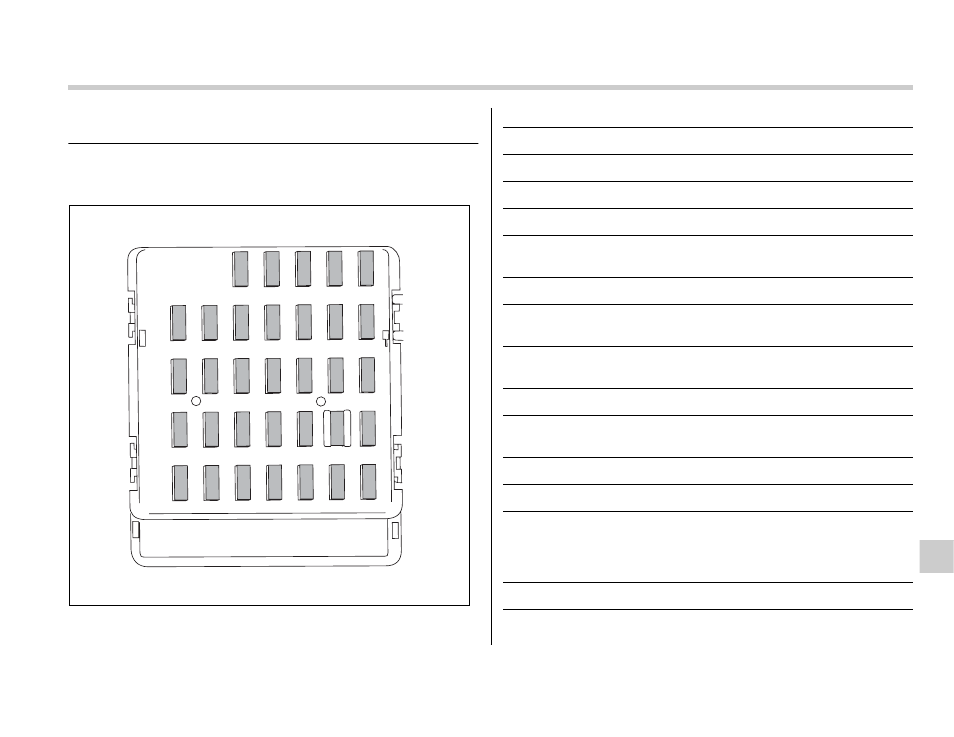

C00004
Fuse panel
Fuse rating
Circuit
1
20A
y
Trailer hitch connector
2
Empty
3
15A
y
Door locking
4
7.5A
y
Front wiper deicer relay
y
Moonroof
5
7.5A
y
Combination meter
6
7.5A
y
Remote control rear view mirrors
y
Seat heater relay
7
15A
y
Combination meter
y
Integrated unit
8
20A
y
Stop light
9
20A
y
Mirror heater
y
Front wiper deicer
10
7.5A
y
Power supply (Battery)
11
7.5A
y
Turn signal unit
12
15A
y
Automatic transmission unit
y
SRS airbag system (Sub)
y
Engine control unit
y
Integrated unit
13
20A
y
Cargo socket
