7
Your New Plasma Display Panel (continued)
ENG
➢
The actual configuration on your PDP may be different,
depending on your model.

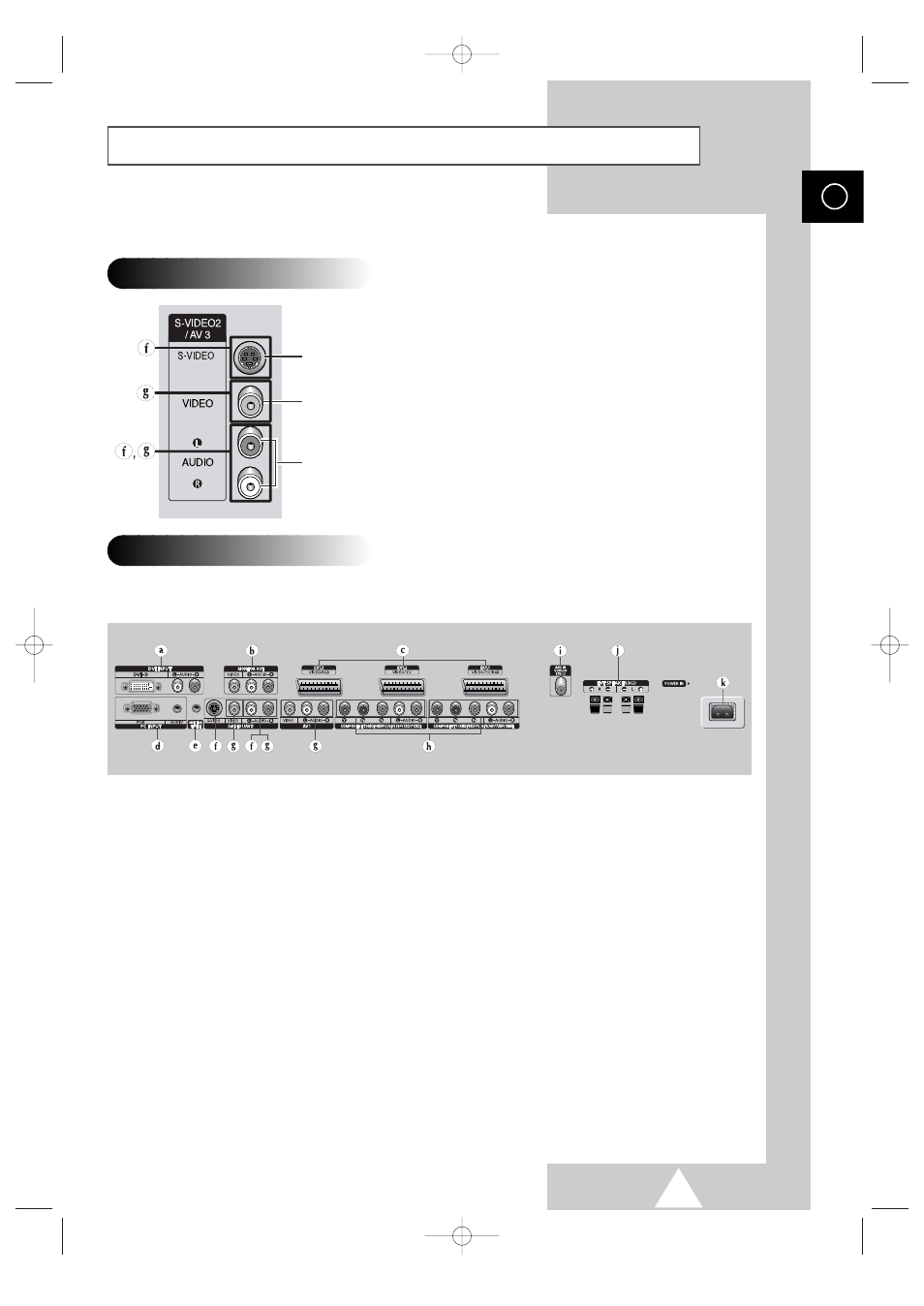

Rear Panel
Side of the TV
➢
For further details about connection, refer to pages 55~59.
Audio Input (L, R)
Video Input
S-Video Input
a) DVI INPUT (DVI-D / L-AUDIO-R)
Connect to the digital video and audio output jack
for device with DVI output.
b) MONITOR OUT (VIDEO / L-AUDIO-R)
Outputs for external devices.
c) Ext.1, Ext.2, Ext.3
Inputs or outputs for external devices, such as
VCR, DVD, video game device or video disc
players.
d) PC INPUT (RGB IN / AUDIO)
Connect to the video and audio output jack on
your PC.
e) ONLY FOR SERVICE
Connector for service only.
f) AV2, AV3
(S-VIDEO1 or S-VIDEO2 / L-AUDIO-R)
Video and audio inputs for external devices with
an S-Video output, such as a camcorder or VCR.
g) AV1, AV2, AV3
(VIDEO / L-AUDIO-R )
Video and audio inputs for external devices, such
as a camcorder or VCR.
h) COMPONENT1, COMPONENT2
Video (Y/Pb/Pr) and audio (L-AUDIO-R) inputs for
Component.
i) ANT IN VHF/UHF (75Ω)
75Ω Coaxial connector for Aerial/Cable Network.
j) EXT SPEAKER (8Ω)
Connectors for external rear speakers.
k) POWER IN
Connect the supplied power cord.
