Installing the Speakers
(continued)
ENG
Parts
The actual product may differ
slightly from the illustration.
Speakers
2 EA

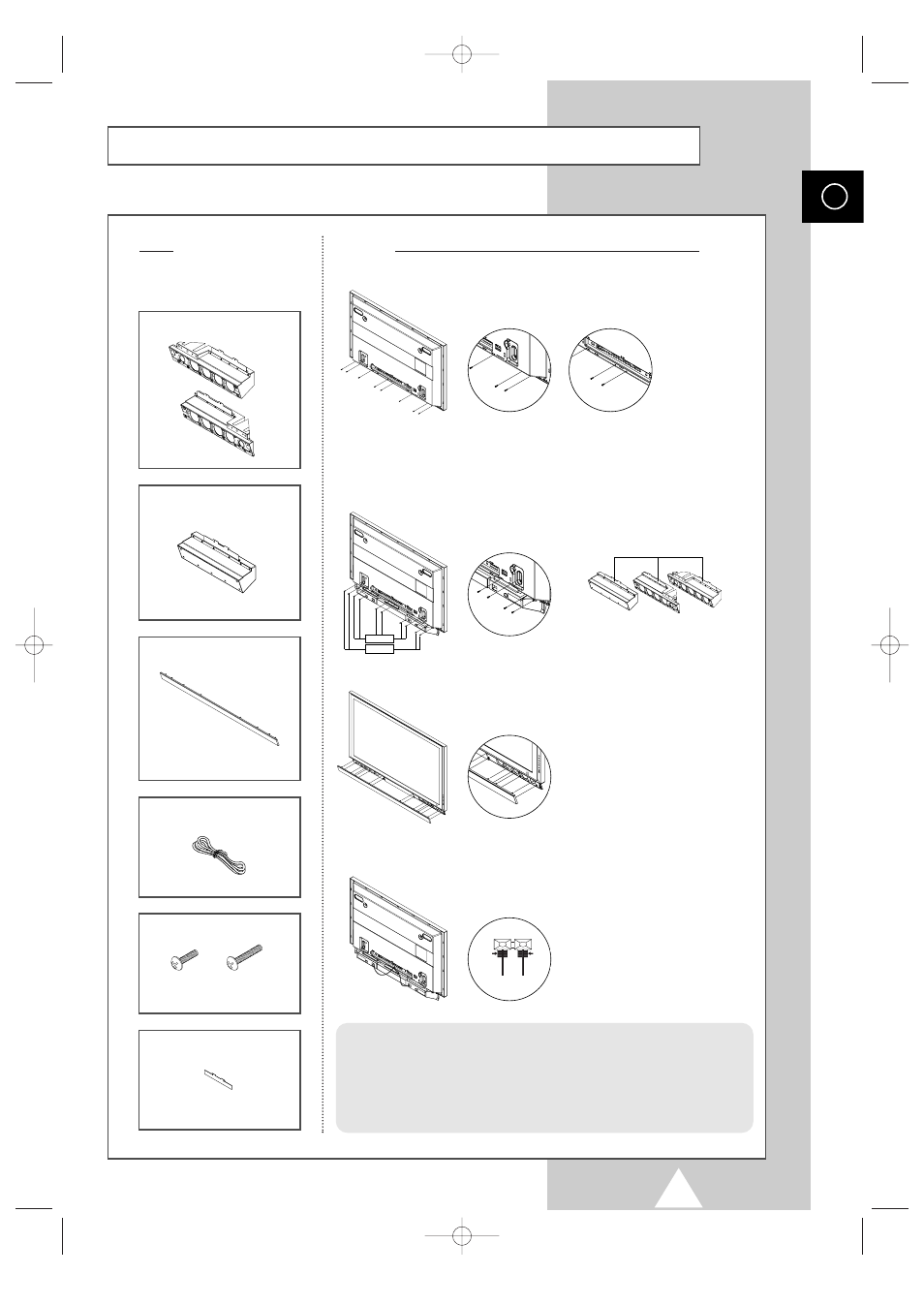

How to Assemble the Speakers (Wall Mount)
① Remove the screws indicated on the rear of the PDP (6 screws on the
left and right sides, 2 screws on the center).
③ Secure the Speaker Dust Cover by setting it into the grooves
located on the front side of the speakers.
④ Connect the speakers to the PDP using the speaker cable.
The connection terminals are on the rear side of both the PDP and
the speakers. (Match the color coded terminals and cables.)
Bracket Pads
② Attach the Bracket Pads to the Speaker’s Guide Bracket.
Set the Speaker Guide Bracket into the square grooves located on
either side of the PDP’s bottom rear and secure it with the provided
screws
① , ➁ . Secure the Middle Cabinet to the center of the PDP
with a screw ① . (Always use the proper screws, as indicated.)
Middle Cabinet
(Wall Mount Only)
1 EA
Speaker Dust Cover
1 EA
Speaker Cable
Screws
Screw ①
: 6EA
Screw ➁
: 4EA
3 EA
Bracket Pads
BLACK
BLACK RED
RED
WARNING
1. When moving the PDP with the speakers attached, be sure to hold on to the PDP
to prevent damage. (Damage may occur to the speaker connecting brackets or
the speakers.)
2. Speakers of 8 Ω Impedance, 15W Nom. Power, 30W Max. Power is recommended.
Screw ①
Screw ②
