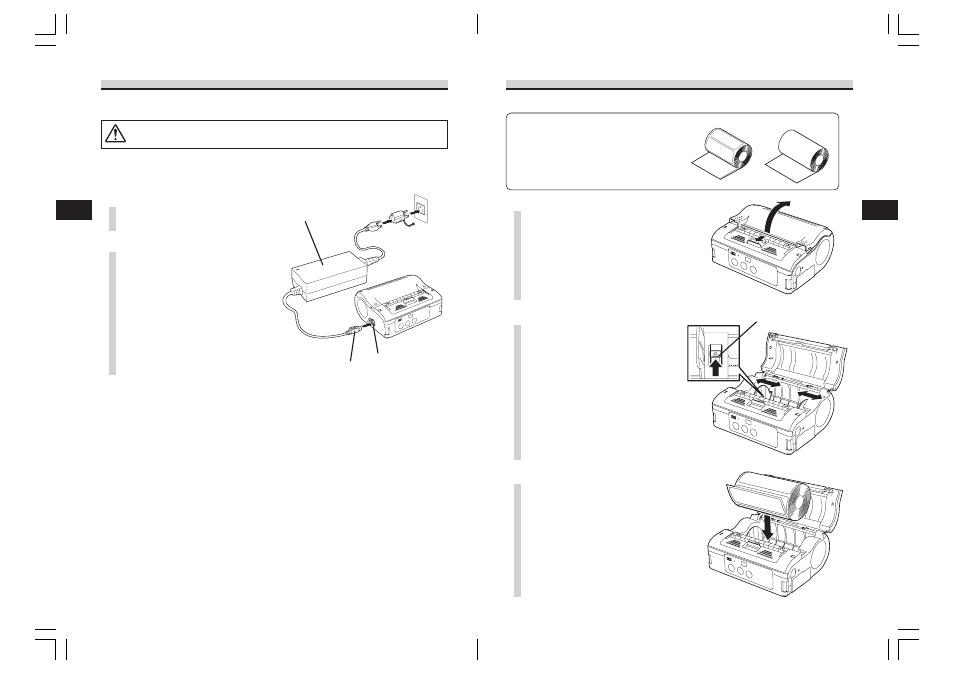

Preparing for First-time Operation

Remove the DC input terminal
cover, and insert the DC output
terminal into the input terminal.

Loading Labels

The label installation method differs by printing mode.

Continuous printing mode

Label paper

Journal paper

(See figure on P. 40)

Label guide stopper

Using AC Adapter

Install the specialized AC adapter (optional) on the printer for use.

The AC adapter set provided for this printer is specific to this printer. Do not use it
for other electric equipment.

• Use AC ADAPTER: Model No. TG-5001+19v

(LEAD YEAR ENTERPRISE Co.,LTD.)

DC output terminal

AC adapter

DC input terminal

Connect the AC adapter into the
outlet.

* Be sure to turn the printer power off before detaching the DC output

terminal for the AC adapter, or disconnecting the power supply.

Note that disconnecting the power supply in ways other than described
above may prevent the printer from correctly storing any settings in
memory.

No battery pack is necessary when the AC adapter is used. When the
battery pack and AC adapter are used simultaneously, charging begins if
the battery is not fully charged. The display becomes normal when fully
charged (See P. 14).

Slide the cover release lever in
the arrow direction to open the
cover.

First, slide the dispenser unit to the
continuous printing mode position.
(See P. 21)

While pressing the label guide
stopper, slide the label guide to
the label size to be used.

Load the paper in the printer.

Make sure the roll is oriented correctly.
