airClient™ Nexus PRO TOTAL User Guide

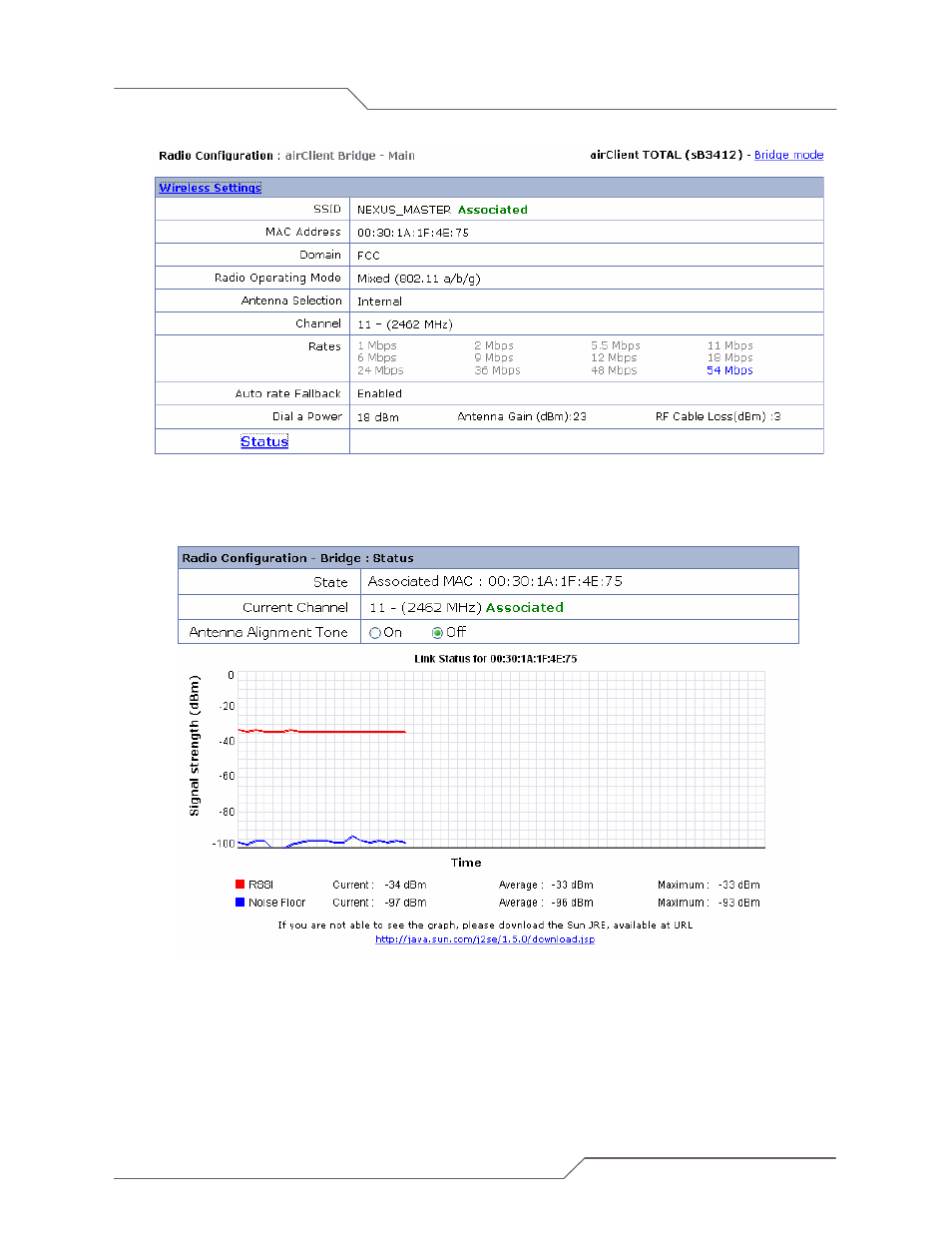

Figure 2-11 Radio Main (Wireless Settings Page) - Associated
Click on ‘Status’ to view the association link-status graph.
Figure 2-12 Link Status
Noise Floor is the measure of the signal created from the sum of all the noise sources and unwanted
signals within a measurement system.
Note: If the association status window does not appear, click on the Java link to download the JRE.
