i n t e l l i g e n t w i r e l e s s p l a t f o r m
airClient™ Nexus PRO TOTAL User Guide
2.3. Using the Configuration Pages
The aCNPT Nexus configuration system comprises several pages for configuring each parameter. A
common navigation menu bar is provided at the top of each page for easy navigation as shown in the
figure below.

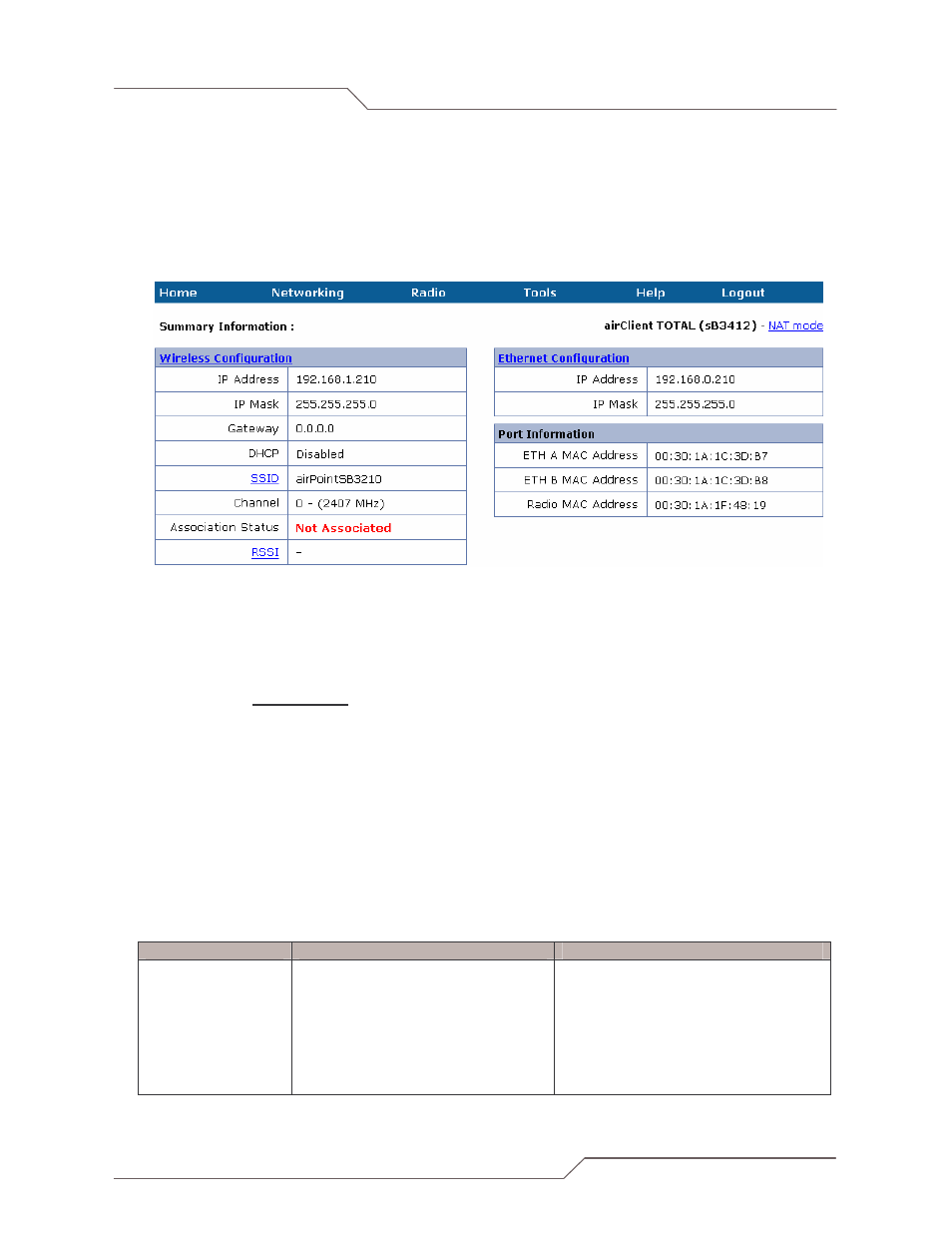

Figure 2-5 Navigation Menu Bar showing editable boxes for parameters
System configuration information is displayed as read-only in each page. As shown in the ’Summary
Information’ page in the above figure, ’Ethernet Configuration’, ’Wireless Configuration’ and ‘Port
Information’ parameters are displayed as read only.
Clicking on the UNDERLINED parameter heading allows you to edit the configuration parameters. To
change the ’Ethernet Configuration’ parameters, click on the ’Ethernet Configuration’ link. Similarly,
clicking on the ‘Wireless Configuration’ link, the ‘Radio Configuration page’ will be displayed to edit any
wireless settings. The figure below shows the ’Ethernet Configuration’ parameters in editable boxes.
To save the changes to the system, click on the ’Apply Changes’ button.
Note: Clicking the web browser's Back button returns to the previous screen without saving any
changes. Changes are saved only when the user clicks the ’Apply Changes’ button
The Navigation menu bar contains menu items that allow user to go to different configuration pages. The
following table summarizes functionalities available for the menu item links.
Table 2-2 Description of Menus
Menu Item Menu Sub-items Description
Home Summary Information Displays summary page with
information such as Ethernet and
Wireless IP settings.
Allows user to set the IP settings for
Ethernet (wired side) and Wireless
interfaces depending on the device
operational mode.
