MP6612i
5
FRONT SP
Purple Purple/Black
Stripe
Gray Gray/Black
Stripe
White/Black
Stripe
White Green/Black
Stripe
Green
Left Speaker
(Front)
Right Speaker
(Front)
Left Speaker
(Rear)
Right Speaker
(Rear)
Black
Yellow
Blue
Red
REAR SP
Front Line out R (Red)
L (White) Black
Power Antenna
Connect to power antenna or amplifier.
If not used, tape bare end of wire.
Accessory/Ignition
Connect to existing radio wire
or radio fuse.
Ground
Connect to ground terminal
or clean, unpainted part of chassis.
Memory/Battery
Connect to battery or 12 volt power
source that is always live. The radio will
not work if this wire is not connected.
jLink iPod Cable
(Sold Separately)
iPod Nano iPod Mini iPod iPod Video
Rear Line out R (Red)
L (White) Gray
3.5mm Audio Only
SAT L SAT R SAT
DATA BUS
DATA BUS

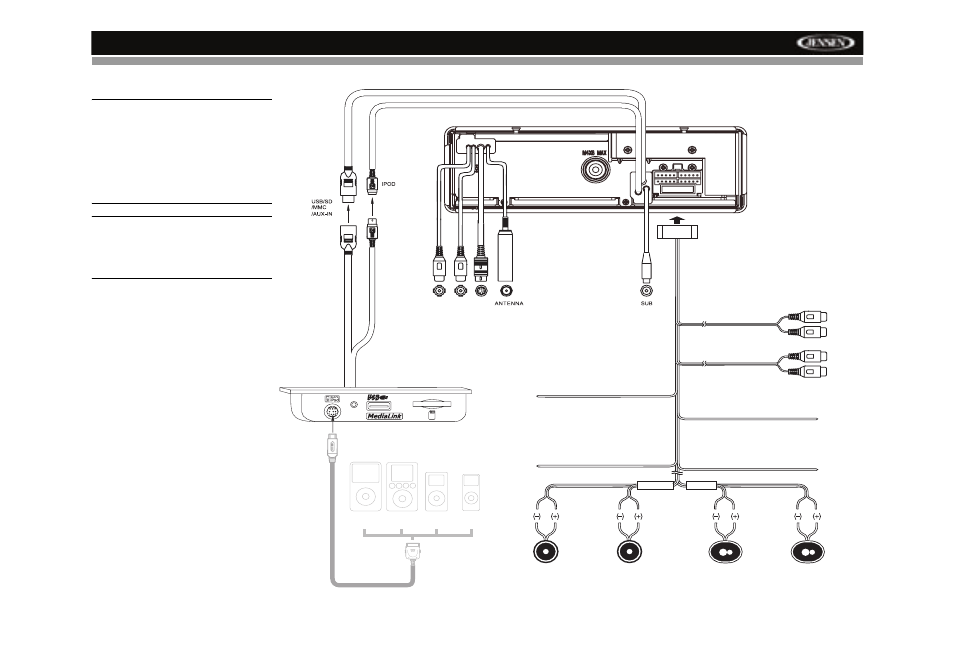

WIRING
NOTE: The amplifier in this radio
is only designed for use with four
speakers. Never combine (bridge)
outputs for use with two
speakers. Never ground negative
speaker leads to chassis ground.
Failure to wire exactly as shown
may cause electrical damage to
the radio.
NOTE: Only connect speakers
with a nominal impedance of 4
ohms. Speakers with a load
impedance less than 4 ohms
could damage the unit.
