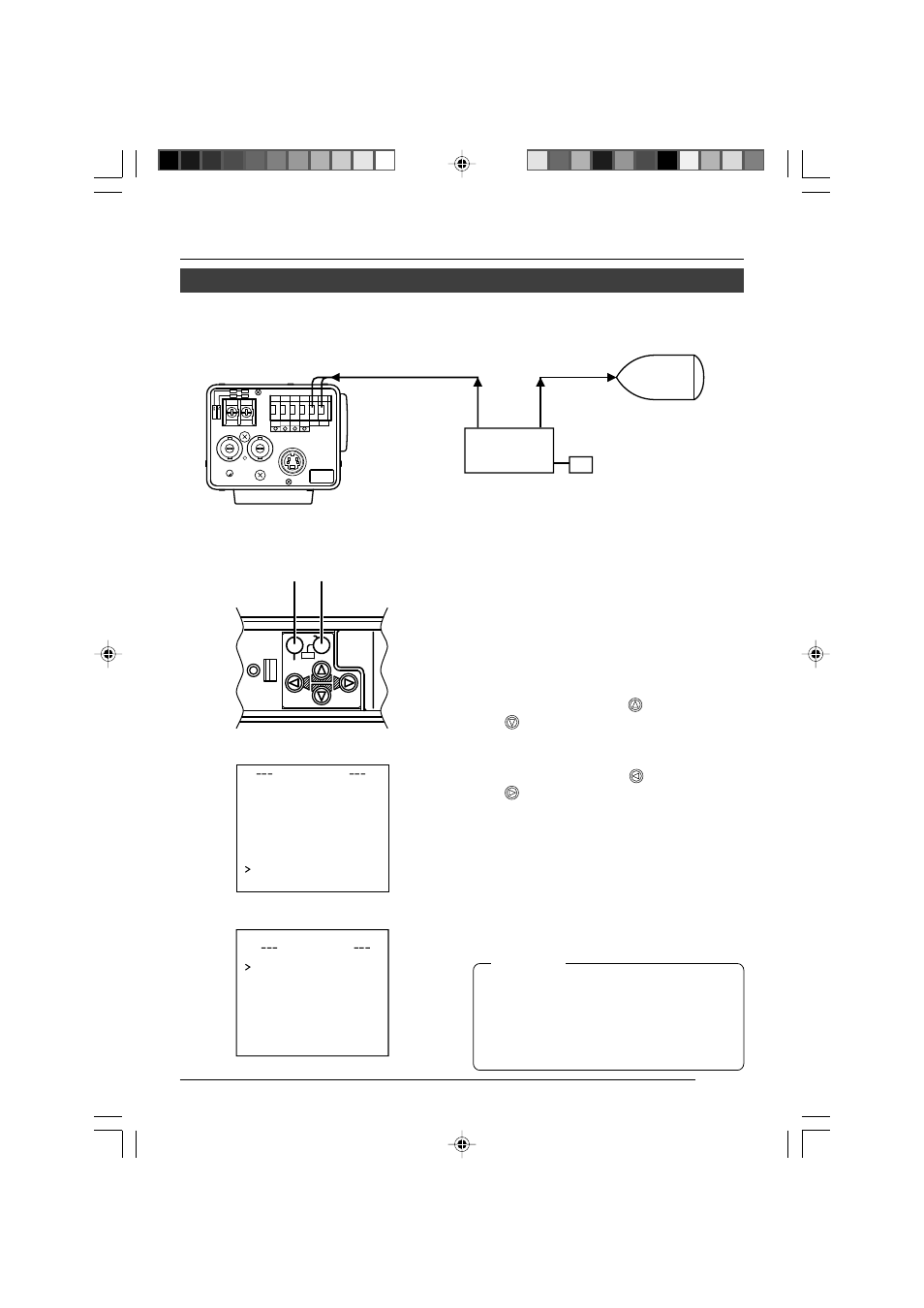

Control by Black-White/Colour switching signal from the outside
Carry out the following setting when you link in motion the black-white/colour switching of this
unit and infrared illumination, etc., using the switching signal from the outside control device.
Ⅲ Set the B&W item to AUX.
1. Select B&W/COLOUR MODE on
the ALC SETTING screen.
2.
Press the SET button.
• The B&W/COLOUR MODE screen
appears.
3.
Press either the button or the
button and select the B&W
item.
4.
Press either the button or the
button and set to “AUX”.
Then, the AUX TERMINAL item on the
MODE SELECT screen is automatically
set to (B&W IN). Refer to
੬ Page 33.
5.
Upon completion of setting,
press the MENU button.
• Then, the ALC SETTING screen is
brought back.
L A C SE T T I NGS
I I R S L E V E L NORMAL
A E V RA E G : P E AK 8 2 :
A C G MODE 2 d B 0
S UT H T ER E x DR / N RMAL O
P I O R R I T Y
B C L E D
S NS E E U P O F F
T I ON
T 1
MO
I
L L U O X MODE O F F
B&W/COLOUR MODE . .
CAMERA
SETUP
SET
MENU
AWC
SET button MENU button
B&W
N ORMAL
A UT O
B&W/COLOUR MODE
AU TO L E V E L
B&W: Make signal
COLOUR: Break
signal
Switching
signal
Infrared illumination, etc.
Sensor or switch
Outside control device
CAUTION:
When you use near infrared ray illumi-
nations, use a lens that is compatible
with the near infrared ray illuminations.
Any lens other than the compatible one
can result in out-of-focus due to such
characteristics.
It is requested that you consult our JVC dealer about connecting
devices, etc.
