Page 15
English

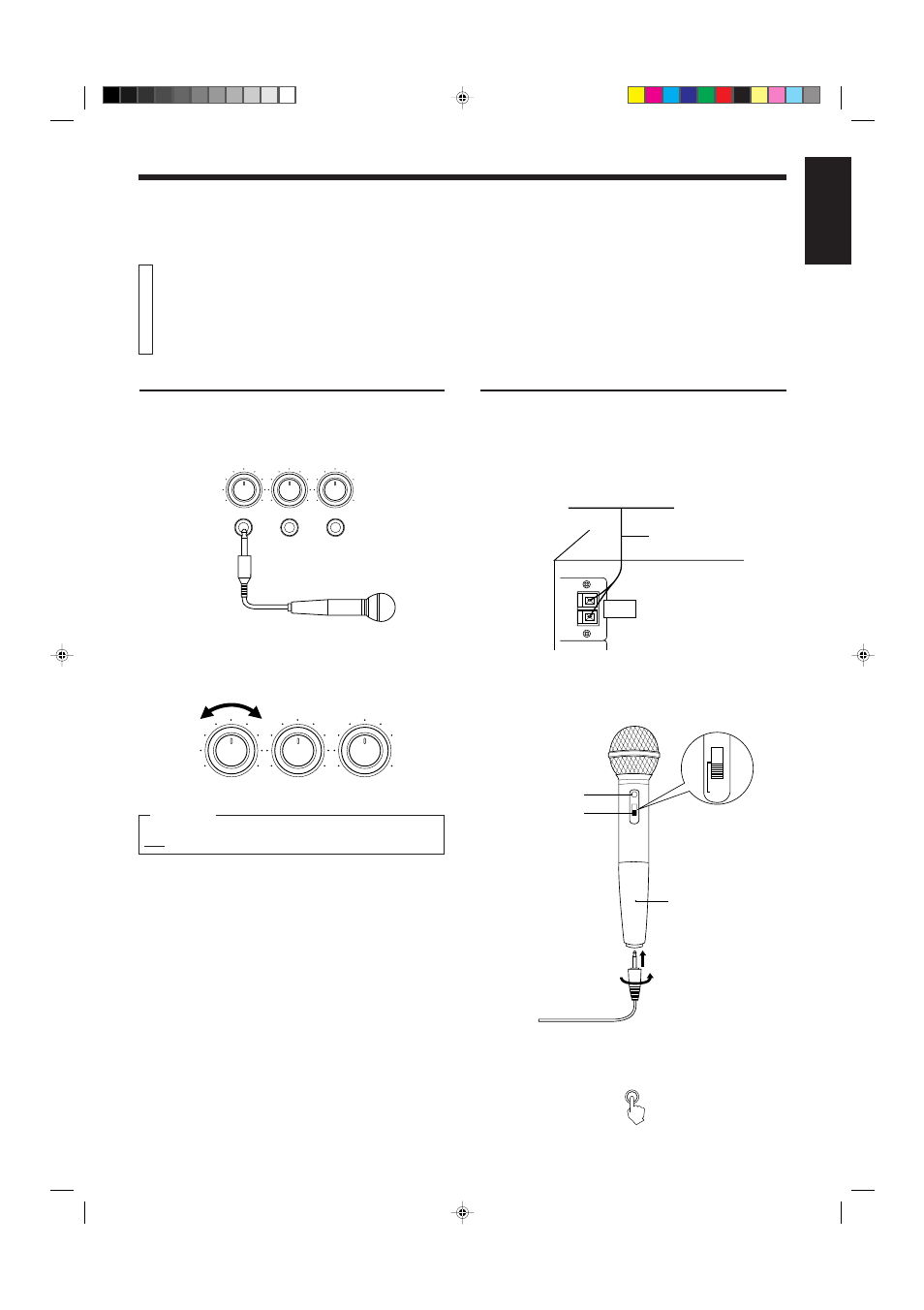

VARIOUS UNIQUE FUNCTIONS
Using a microphone
Using a wired microphone
Operation
1. Insert the connector cable to the end of the microphone.
2. Up to three (3) microphones can be connected to the MIC jacks
on the front panel.
MIN MAX
MIC 1
MIN MAX
MIC 2
MIN MAX
MIC 3
3. Switch the microphone’s power on.
4. Turn the MIC 1 through MIC 3 knobs clockwise (level up) or
counterclockwise (level down) as desired.
MIN MAX
MIC 1
MIN MAX
MIC 2
MIN MAX
MIC 3
ATTENTION
When you are not using the microphone, to set the MIC switch to
OFF; otherwise the batteries will discharge even when not in use.
Using a wireless microphone
Antenna preparations
You need to connect the FM antenna to the back of the player.
•
Open the FM antenna wire connectors by pushing them to the side,
insert the FM antenna wires, and close them by pushing them back
into their original position.
• Attach the FM feeder antenna to the wall behind the player so that
the wire forms a “T” as illustrated.
WIRELESS
MIC ANT.
FM feeder antenna
(Rear panel)
Microphone operation
1. Insert the antenna cable into the end of the microphone as
illustrated and turn it clockwise to secure it.
Battery compartment cap
FREQ. ADJUST screw
MIC SELECT switch
OFF
WIRED
WIRE-
LESS
Antenna cable
* Be sure to set
the switch to
OFF when
you insert the
antenna cable.
2. Press the WIRELESS MIC button on the front panel.
WIRELESS MIC
