77

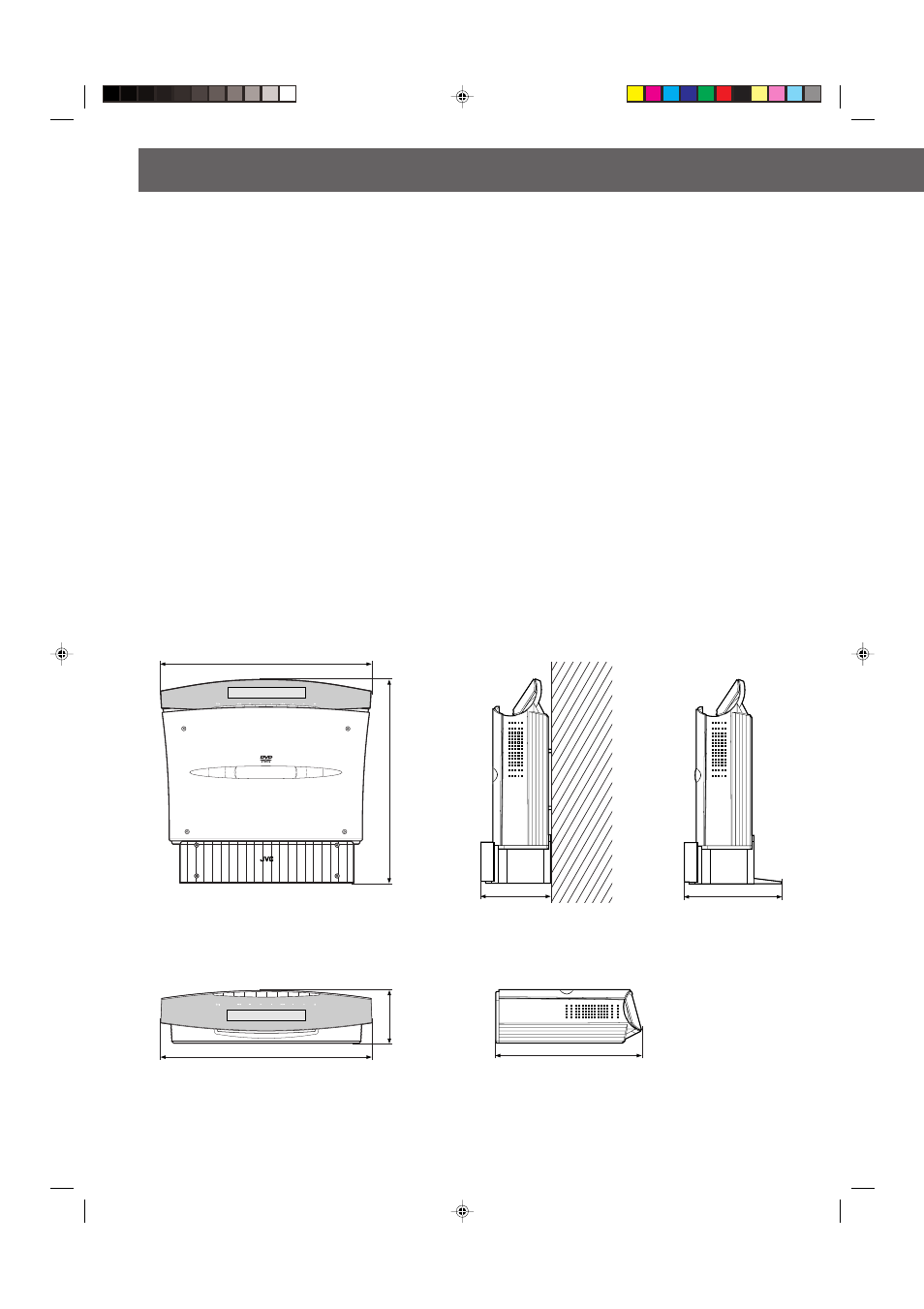

Dimensions for installation
Placed vertically
Placed horizontally
Specifications
7 Center unit (XV-THV70R)
Audio section
Total Harmonic Distortion 0.02 %
NOTE: This value is measured at System cord CONNECTOR for
reference.
Audio input sensitivity/Impedance (at 1 kHz)
Analog input:
AUX IN : 290 mV/47 k Ω
Digital input*:
DIGITAL IN (OPTICAL): –21 dBm to –15 dBm (660
nm ±30 nm)
* Corresponding to Linear PCM, Dolby Digital, and DTS
Digital Surround (with sampling frequency — 32 kHz,
44.1 kHz, 48 kHz)
Video section
Color System: PAL
Horizontal Resolution: 500 lines
Signal-to-Noise Ratio: 66 dB
(Composite signal when “RGB” is selected)
Output Level
Composite:
1.0 V(p-p)/75 Ω
S-video-Y: 1.0 V(p-p)/75 Ω
S-video-C: 0.286 V(p-p)/75 Ω
SOURCE VOL
SOURCE VOL
D V D D I G I T A L C I N E M A S Y S T E M
T H - V 7 0 R
(On a wall) (With the legs)
325 mm
311.5 mm
86 mm
105.5 mm 140 mm
325 mm 237 mm
Tuner section
Tuning Range
FM: 87.50 MHz – 108.00 MHz
AM (MW): 522 kHz – 1 629 kHz
General
Power Requirements: AC 230 V Ó, 50 Hz
Power Consumption: 23 W (at operation)
1.7 W (in standby mode)
Dimensions** (W × H × D): 325 mm × 86 mm × 237
mm
Mass**: 2.95 kg
** Without Stand and Legs
