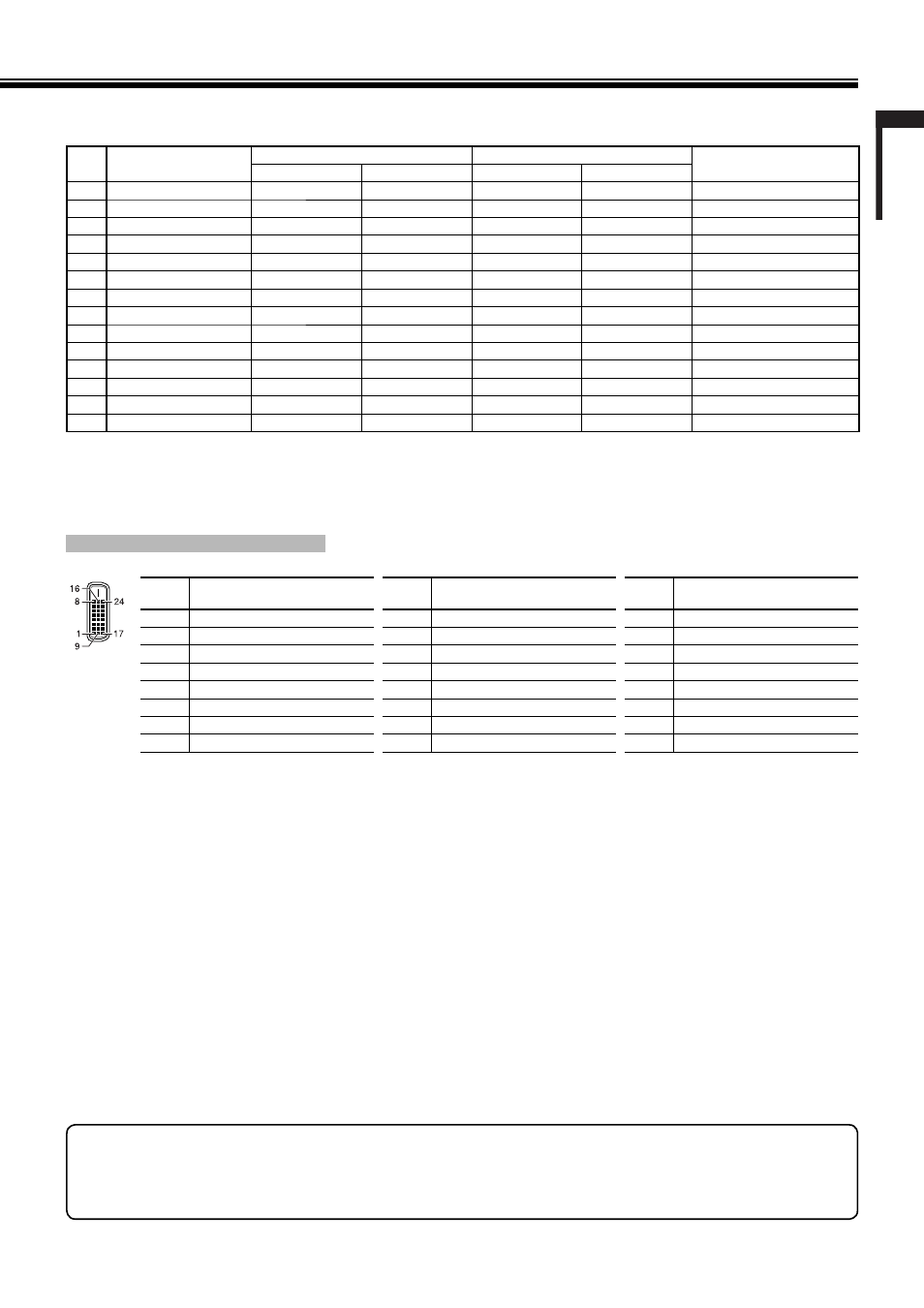

Computer signals (preset)
DVI-D (HDCP) terminals
No. Signal name
Resolution Frequency
Scan system
Horizontal Vertical Horizontal (kHz) Vertical (Hz)
1 VGA60 640 480 31.5 59.9 Non-interlace
2 WVGA60 852 480 31.5 59.9 Non-interlace
3 SVGA60 800 600 37.9 60.3 Non-interlace
4 XGA60 1024 768 48.4 60.0 Non-interlace
5 WXGA (1280) 1280 768 47.8 60.0 Non-interlace
6 WXGA+60* 4 1440 900 55.9 60.0 Non-interlace
7 SXGA60* 4 1280 1024 64.0 60.0 Non-interlace
8 WSXGA+60* 4 1680 1050 65.2 60.0 Non-interlace
9 UXGA60* 4 1600 1200 75.0 60.0 Non-interlace
10 WUXGA60* 4 1920 1200 74.0 60.0 Non-interlace
11 720/60p 1280 720 45.0 60.0 Non-interlace
12 1080/60p* 4 1920 1080 67.5 60.0 Non-interlace
13 720/50p 1280 720 37.5 50.0 Non-interlace
14 1080/50p* 4 1920 1080 56.25 50.0 Non-interlace
*4 For DT-R17L4D: When No. 6-10, 12 or 14 signals come in, thin lines will become obscured because their signal resolution is higher than the
screen resolution.
Non-preset signals may not be displayed normally even if their frequency is within the acceptable range ( ☞ “Horizontal/vertical frequency
(computer signal)” on page 24).
When a preset signal comes in, the signal format is shown on the status display. For other signals, the resolution is shown.
Specification of the DVI-D (HDCP) terminal
Connect it to the DVI-D output terminal on a personal computer.
Pin
No.
Input signal
Pin
No.
Input signal
Pin
No.
Input signal
1 T.M.D.S Data 2– 9 T.M.D.S Data 1– 17 T.M.D.S Data 0–
2 T.M.D.S Data 2+ 10 T.M.D.S Data 1+ 18 T.M.D.S Data 0+
3 T.M.D.S Data 2 shield 11 T.M.D.S Data 1 shield 19 T.M.D.S Data 0 shield
4 NC 12 NC 20 NC
5 NC 13 NC 21 NC
6 DDC Clock 14 +5 V Power 22 T.M.D.S Clock shield
7 DDC Data 15 GND 23 T.M.D.S Clock+
8 NC 16 Hot Plug Detect 24 T.M.D.S Clock–
•
•
