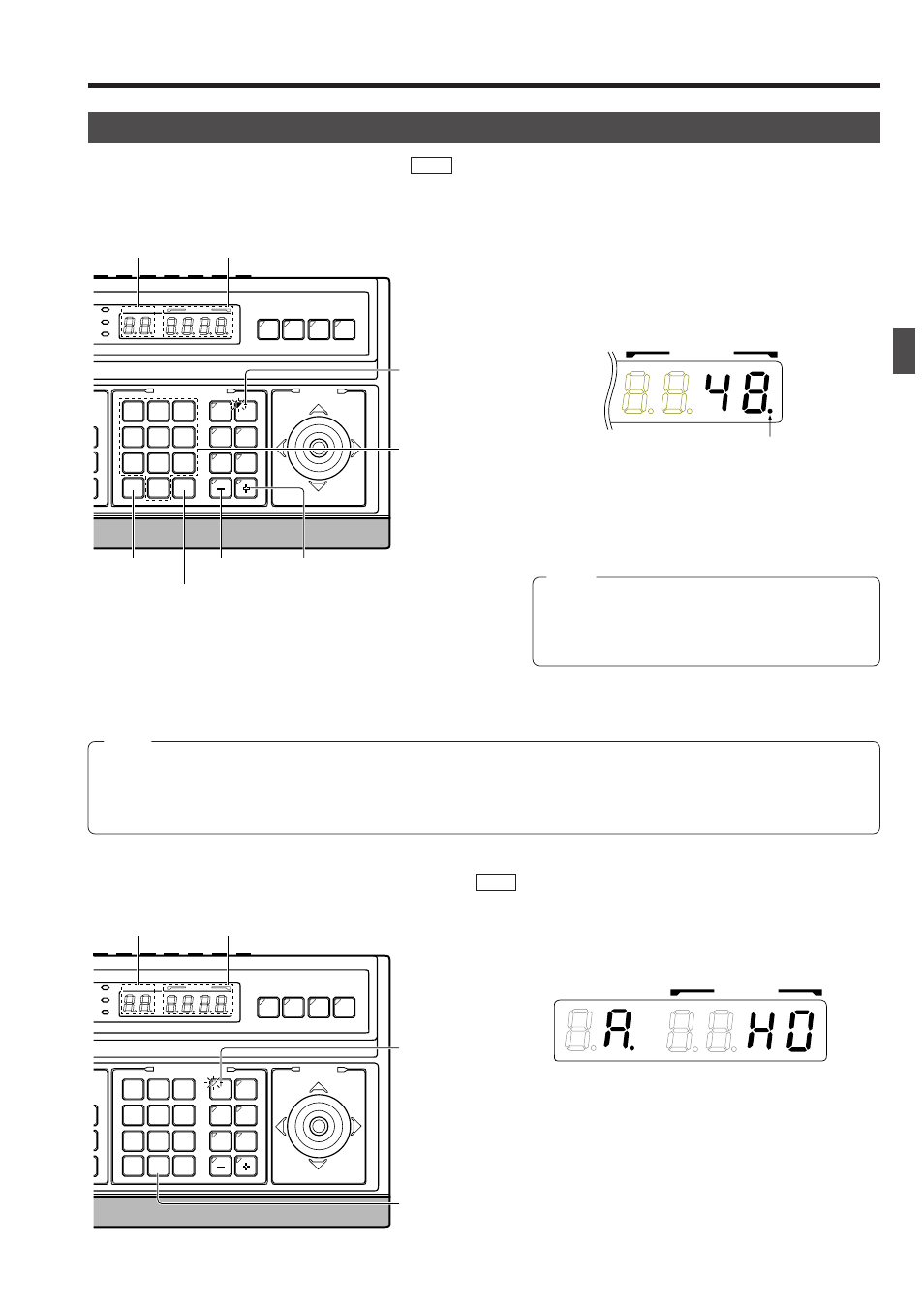

Selecting a Desired Preset Position
( REF. : Page 27 for the position presetting.)
2. BASIC OPERATIONS
POSITION SELECTION
1.
Press the POSITION button so that the indicator lights up.
2.
Input the position number using the numeric keys (0 to 9).
The input figure is shown in the POSITION display to-
gether with a period after it.
(Example: When “48” is input)
To clear the input figure, press the CLEAR button.
NOTE
When TK-C675B cameras are used, make sure that the lower 4 digits inscribed on the serial number on their rear panels are as
shown below. Otherwise the cameras cannot be moved to the desired positions.
TK-C675BU: #0060 or after
When the serial number of a camera is other than the above, please consult your nearest JVC-authorized service agent.
4.
To view the video of the next recorded position number,
press the + button. To view the video of the previous re-
corded position number, press the – button.
3.
Press the ENTER button to enter the input position number.
The video of the selected position will be output from the
MONITOR OUTPUT connectors on the rear panel.
At this time, the period in the POSITION display disap-
pears.
NOTE
When a position number that has not been preset is
selected, the POSITION display shows the selected
position number but the video is not switched to that
position.
CLEAR
/HOME
7
4
1
8
0
5
2
9
6
3
ENTER
AUTO
AUTO
PAN
PAN
OPTION
1
OPTION
2
CAMERA
CAMERA
POSI-
TION
AUTO
AUTO
PATROL
PATROL
AUTO
F-1
F-2
F-3
PAN/TILT
CAMERA/POSITION
CAMERA/POSITION
CAMERA
POSITION
REMOTE CONTROL UNIT
REMOTE CONTROL UNIT
RM-P2580
RM-P2580
ALARM
ALARM
PO
POWER
WER
K
EY LOCK
K
EY LOCK
POSITION
button
Numeric key
buttons
+ button
CLEAR button
ENTER button
- button
CAMERA display
POSITION display
POSITION
Period
Setting All Cameras to the Home Positions
( REF. : Page 27 for the home position presetting.)
1.
Press the CAMERA button so that the indicator lights up.
2.
Press the HOME button. The CAMERA display shows “
A
”
and POSITION display shows “
H0
”.
3.
Press the ENTER button to move all the cameras into
their home positions.
When the cameras have moved to the home positions,
the CAMERA display shows the camera number that was
selected before the HOME button was pressed.
