Tally lamp
Lights when the tally control signal is ON. The tally control
signal is input through the REMOTE (external control)
remote terminal. For details, refer to Page 18.
Chroma/Phase button
[
CHROMA/ PHASE]
Press this button to activate the picture color density
adjustment mode or picture hue adjustment mode. Each
time you press the button, the adjustment item changes.
Picture color density f Picture hue
Adjust the value with the VOLUME/SELECT buttons
4
.
Also used as a control button in the menu function mode.
Contrast/Brightness button
[CONTRAST
/ BRIGHT ]
Press this button to activate the picture contrast adjustment
mode or picture brightness adjustment mode. Each time
you press the button, the adjustment item changes.
Picture contrast f
Picture brightness
Adjust the value with the VOLUME/SELECT buttons
4
.
Also used as a control button in the menu function mode.
Volume/Select buttons
[VOLUME/SELECT –
+]
Adjusts the speaker volume. Also used as a control
button in the menu function mode.
Menu button [MENU]
Displays and disappears the
2
with the Menu
button depressed will display the
screen.
Under Scan button [UNDER SCAN]
Reduces the screen size to display the entire image.
Press the button again to cancel Under Scan.
When selected, the Under Scan button lights.
Color Off button [COLOR OFF]
Cuts color signals to display a black and white image.
Press the button again to restore the original color.
When selected, the COLOR OFF button lights.
Note:
● This function is invalid with RGB input.
CONTROLS AND FEATURES
FRONT VIEW
Blue Check button [BLUE CHECK]
Cuts red and green signal components. Only blue signal
components are shown. Press the button again to
restore the normal image.
When selected, this button lights.
Aspect button [ASPECT]
Press this button to change the aspect ratio from 4:3 to
16:9.
Input A (VIDEO) button [INPUT SELECT A]
Selects the video and audio signals input to the VIDEO A
*
and AUDIO A
q
terminals on the rear panel. The
button lights when selected.
Input B (VIDEO Y/C) button [INPUT SELECT B]
Selects the video and audio signals input to the VIDEO B
(
or VIDEO B (Y/C)
)
and AUDIO B
w
terminals on
the rear panel. The button lights when selected.
Note:
● The VIDEO B terminals include a video terminal (BNC
connector) and a Y/C terminal (mini-DIN 4-pin connector).
The Y/C (S-video) terminal has priority.
Input C/D (Slot) buttons [INPUT SELECT C/D
(SLOT)]
Selects the signals to be input via the input cards installed
in the rear panel card slots.
C, D:Selects the image from the input card in the slot.
For details on input connectors and using the INPUT
SELECT button, refer to page 7.
Power indicator
Unlit : The main power is OFF.
Orange : The main power is ON, but the monitor’s power
is OFF (in the stand-by mode).
Green : The main power is ON, and the monitor’s power
is ON (in the normal operation mode).
Power switch [POWER ]
Press the power switch to turn the monitor’s power ON or
OFF when the main power is ON.
Note:
● When RUSH DELAY is set to SLOW, it takes about
three seconds before power is actually supplied after
the power switch is pressed.
Speaker
A built-in speaker is located inside the right side panel
when the monitor is viewed from the front.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
4
POWER CHROMA MENU ASPECT
INPUT SELECT
UNDER SCAN COLOR OFF BLUE CHECK
PHASE TM-H1950CG BRIGHT CONTRAST VOLUME/SELECT A B SLOT C D
15
1
4 8 9 10 11 12 14 13 7
POWER CHROMA MENU ASPECT
INPUT SELECT
UNDER
SCAN
COLOR
OFF
BLUE
CHECK
PHASE BRIGHT
CONTRAST VOLUME/SELECT A B C D
2 3 5 6
SLOT
15

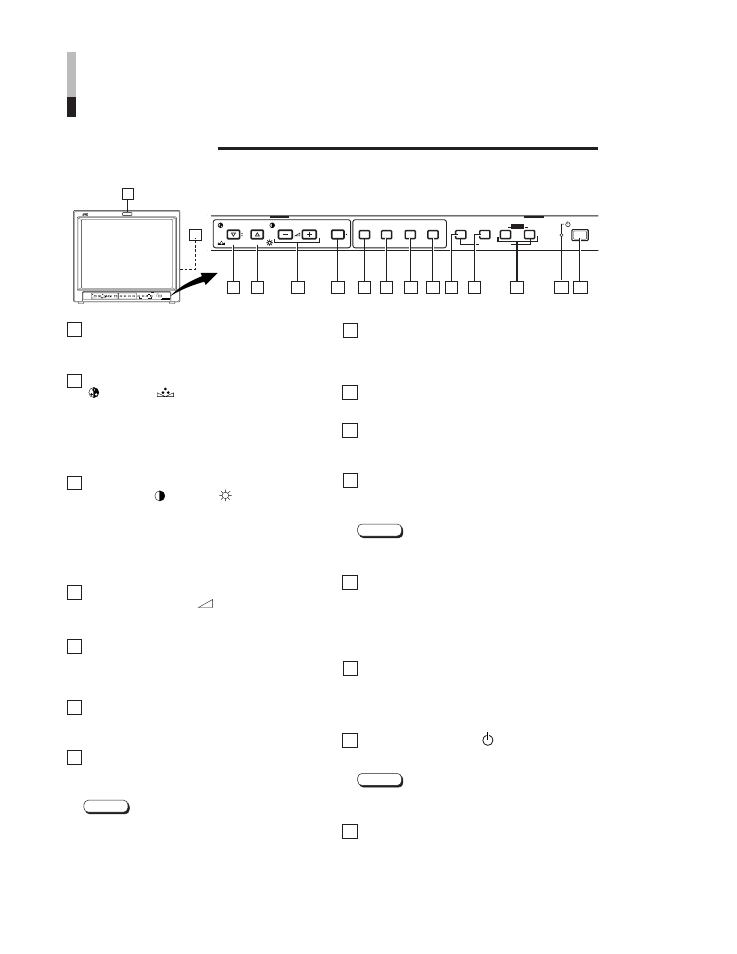

(Front view of TM-H1950CG shown)
