3
Front panel
Display window
Rear panel

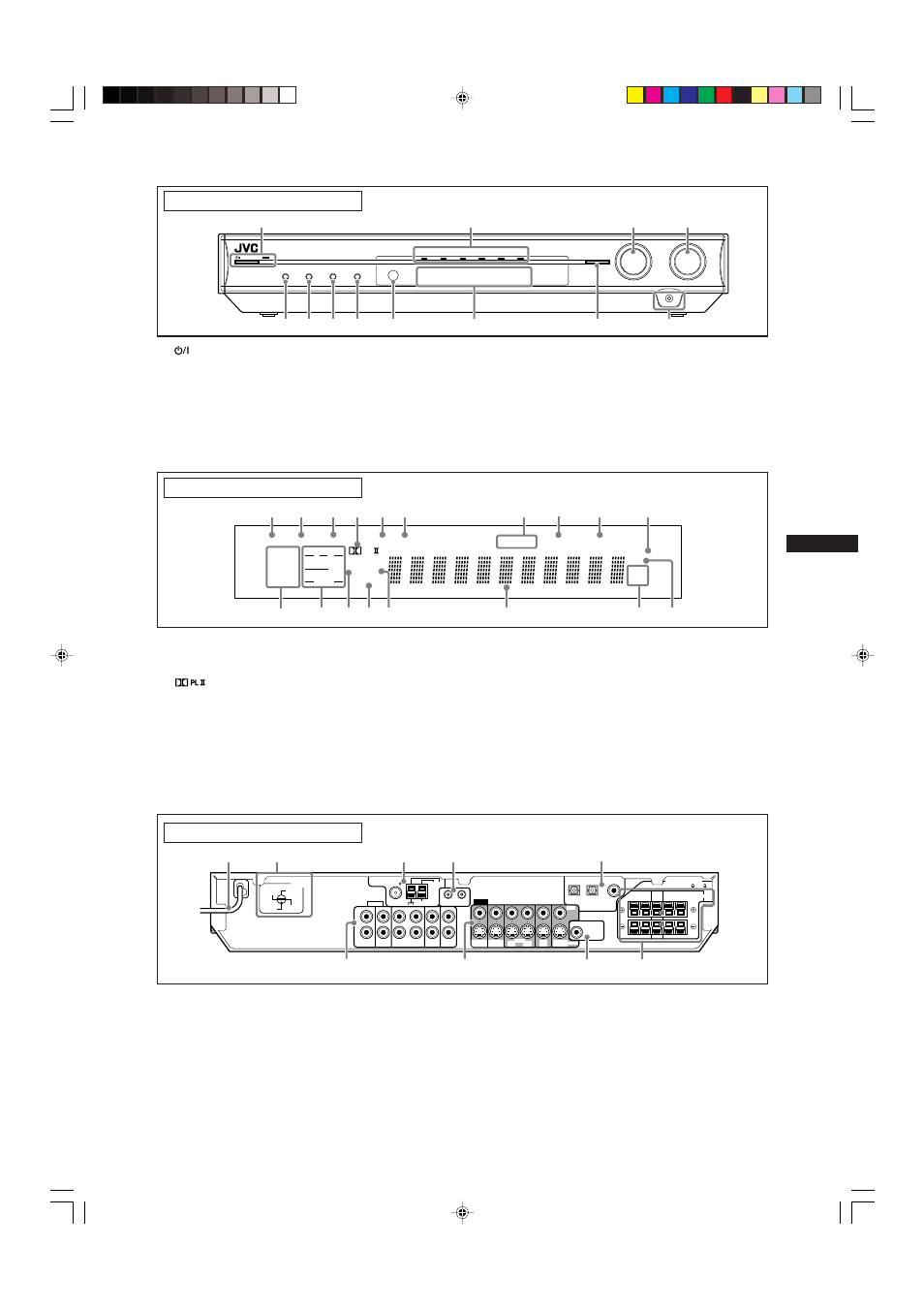

See pages in parentheses for details.
P
a
rts identification
STANDBY / ON
DIMMER
ADJUST
SETTING
SURROUND
HOME CINEMA CONTROL CENTER
DVR / DVD
VCR
DBS
TV
AM
FM
SET / TUNER PRESET
SOURCE
SELECTOR
/ MULTI JOG
MASTER
VOLUME
PHONES
RX-E11
6
7
8
5
q
3
4
9
2
w
p
1
1
STANDBY/ON button and standby lamp (10, 23)
2 Source lamps
DVR/DVD, VCR, DBS, TV, FM, AM
3 • SOURCE SELECTOR (10, 24)
• MULTI JOG (16, 20, 24, 29)
4 MASTER VOLUME control (11)
5 DIMMER button (12)
6 SETTING button (16, 23)
7 ADJUST button (20, 23)
8 SURROUND button (29)
9 Remote sensor (4)
p Display window (see below)
q • SET button (16, 20)
• TUNER PRESET button (24)
w PHONES jack (11)
EQ
LPCM
L
LS SB RS
S . WFR
PL
NEO : 6
DSP 3D
LFE
C
R
DOLBY D
DTS AAC
96 / 24
AUTO SR
C.TONE VIRTUAL SB AUDIO P. BASS
TA NEWS INFO RDS
TUNED ST
SLEEP
AUTO MUTING
AUTO MODE
ATT
HP
MHz
kHz
1
2
3
5 6
7
0
-
#
! @
=
$
%
4
~
8
9
1 EQ indicator (22)
2 C.TONE indicator (21)
3 VIRTUAL SB indicator (18, 25, 26)
4
indicator (25)
5 AUDIO P. (position) indicator (12)
6 BASS indicator (22)
7 Tuner operation indicators (23)
TUNED, ST (stereo)
8 AUTO MUTING indicator (24)
9 SLEEP indicator (13)
0 ATT (attenuator) indicator (22)
- Digital signal format indicators (11)
LPCM (Linear PCM), DOLBY D (Dolby Digital), DTS, 96/24
= Signal and speaker indicators (13)
~ DSP indicator (26, 27)
! AUTO SR (surround) indicator (19)
@ 3D indicator (26, 27)
# Main display
$ Frequency unit indicators
MHz (for FM station), kHz (for AM station)
% HP (headphones) indicator (11, 26, 27)
110V
127V
220V
230 -
240V
VOLTAGE
SELECTOR
TV
VCR
DBS
AV COMPU LINK
IN
IN
IN
(PLAY)
OUT
(REC)
DVR
OUT (REC)
DVR/DVD
IN (PLAY)
L
R
VIDEO
DBS
IN
VCR
MONITOR
OUT
VIDEO
OUT
(REC)
IN
(PLAY)
S-VIDEO
SUBWOOFER
OUT
2(DBS)
3(VCR)
1(DVR/DVD)
DIGITAL IN
CENTER
SURROUND
SPEAKERS
LEFT
RIGHT
LEFT
RIGHT
FRONT
CAUTION:SPEAKER
IMPEDANCE 6 - 16
ANTENNA
AUDIO
COAXIAL
AM LOOP
FM 75
AM EXT
DVR/DVD
IN (PLAY)
DVR
OUT (REC)
9
2
4
3
1
5
6
8
7
1 Power cord (9)
2 VOLTAGE SELECTOR (4)
3 ANTENNA terminals (5)
4 AV COMPU LINK terminals (30)
5 DIGITAL IN terminals (9)
Coaxial: 1(DVR/DVD)
Optical: 2(DBS), 3(VCR)
6 AUDIO jacks (7, 8)
• Input: DVR/DVD IN (PLAY), VCR IN (PLAY), DBS IN, TV IN
• Output: DVR OUT (REC), VCR OUT (REC)
7 VIDEO terminals (7, 8)
VIDEO (composite video) jacks, S-VIDEO terminals
• Input: DVR/DVD IN (PLAY), VCR IN (PLAY), DBS IN
• Output: DVR OUT (REC), VCR OUT (REC), MONITOR OUT
8 SUBWOOFER OUT jack (6)
9 SPEAKERS terminals (6)
FRONT, CENTER, SURROUND
