11
Filter Bag Kit Assembly
If you purchased Model DC-1200BK or DC-1200BK-3
Dust Collector, this section describes the assembly
and installation of the contents of the 30 Micron Filter
Bag Kit (SN 708636F). These instructions also apply
to the optional 5 Micron Filter Bag Kit (SN 708636MF).
Filter Bag Installation

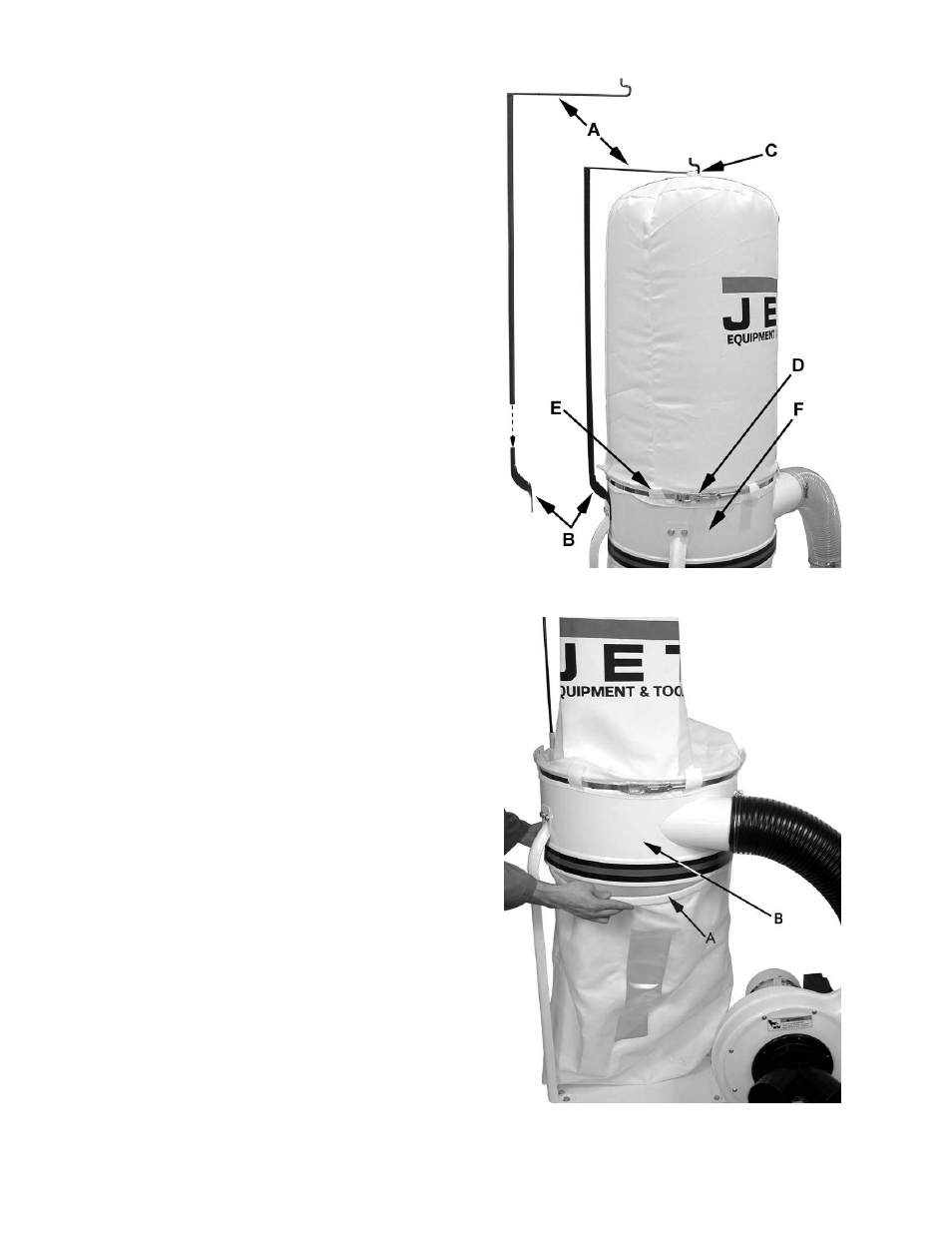

Referring to Figure 8:
1. Place the hanger (A) on the hanger bracket (B).
2. Slide the filter bag loop (C) over the hanger hook.
3. Feed the retainer strap (D) through the loops on
the filter bag (E) and fasten to the collector
housing
(F).
Collector Bag Installation
Referring to Figure 9:
4. Insert the ring of the collector bag (A) at an angle
into the housing (B) through the opening at the
bottom. Pull down on the bag to make sure it
“seats” in the housing.
5. Position the plastic window in front so that you can
easily see when the collector bag is full.
After completing the filter bag and collector bag
installation, proceed to Electrical Connections.
Figure 8
Figure 9
