Assembly - 25
ASSEMBLY
Assembly

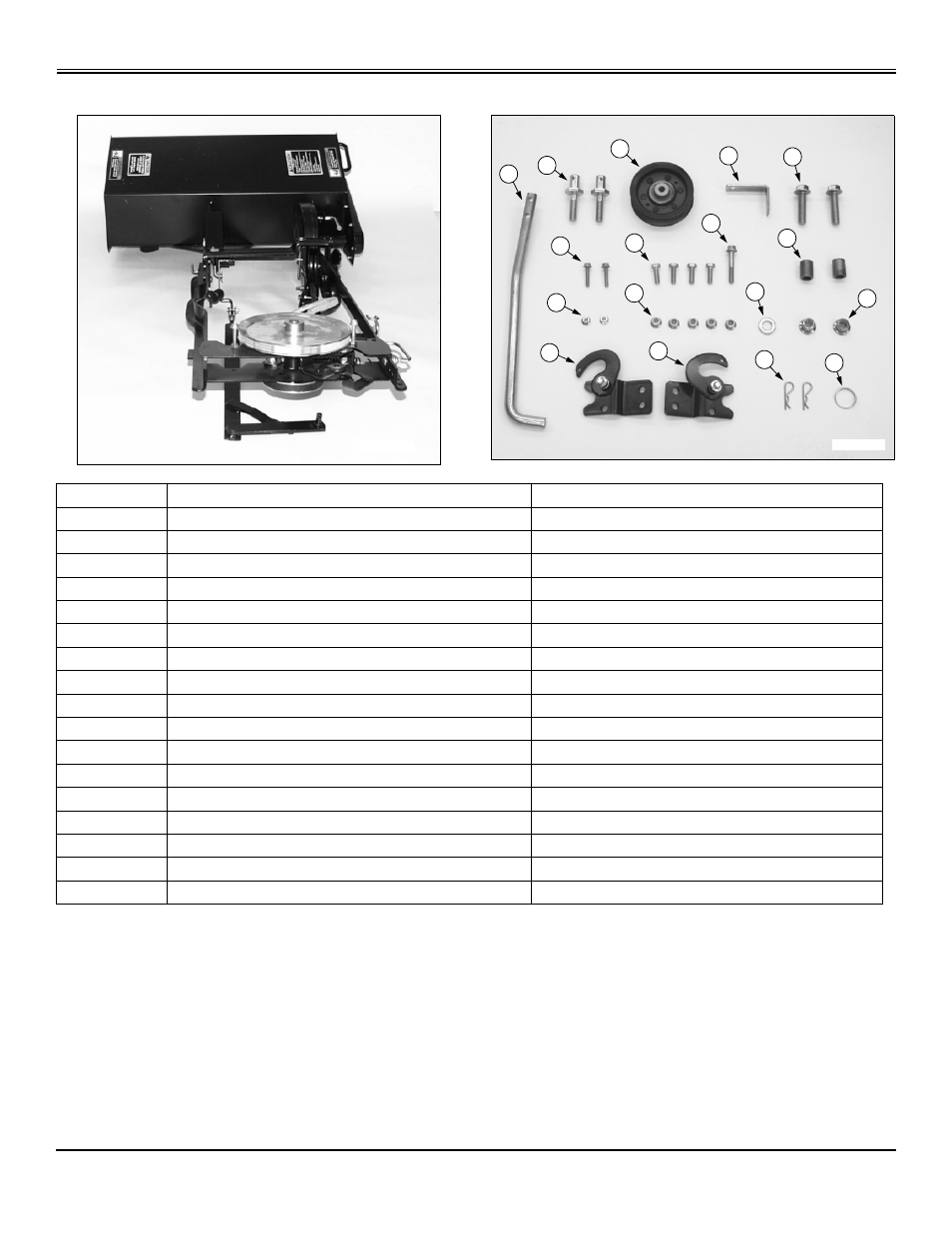

Identify Parts – 30 Inch Mechanical Tiller
Bag of Parts
M96256
B
C
D E
F G
H
L
I
O
K
J
A
M96254
M
N
P Q
Qty. Used Part Description Size
1 Handle, Lift (A)
2 Pin, Mounting (B)
1 Sheave, Idler (C)
1 Guide, Belt (D)
2 Bolt, Flange (E) M12 x 1.75 x 50 mm
2 Bolt, Flange (F) M6 x 1.00 x 30 mm
4 Bolt, Hex (G) M8 x 1.25 x 25 mm
1 Bolt, Flange (H) M8 x 1.25 x 50 mm
2 Spacer, Rear (I)
2 Nut, Flange (J) M6 x 1.00 mm
5 Locknut, Flange (K) M8 x 1.25 mm
1 Washer, Flat (L) M13 x 24 x 2.5 mm
2 Locknut, Flange (M) M12 x 1.75 mm
1 Tiller Clip, Left-Hand (N)
1 Tiller Clip, Right-Hand (O)
2 Pin, Spring Locking (P)
1 Ring, Spring Locking (Q)
