34
SECTION 6: PARTS SECTION

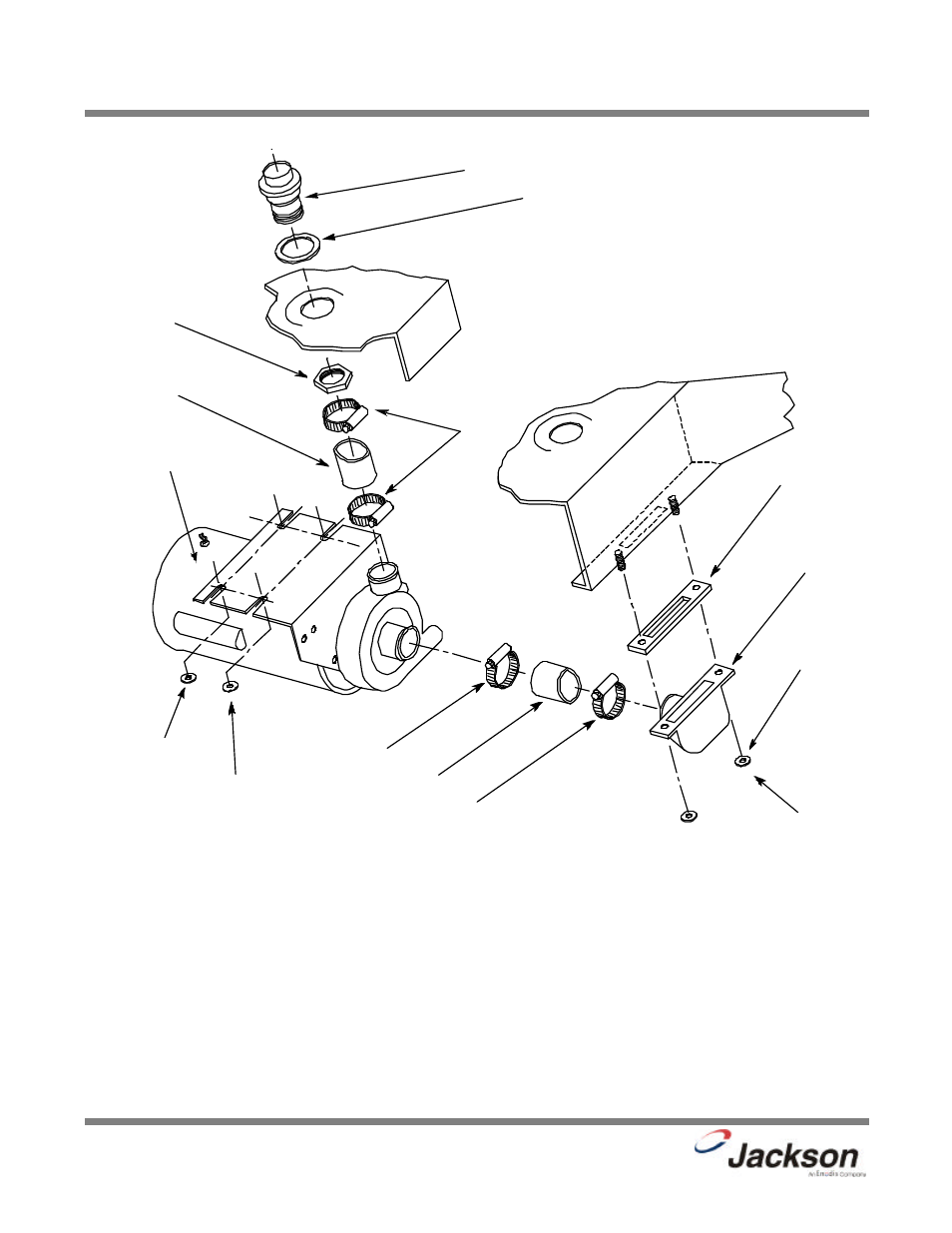

WASH MOTOR TO WASH TUB ASSEMBLY
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hub, Discharge Machined 05700-021-37-90
2 1 Gasket, 2” O.D. x 1 1/2” I.D. x 1/16” 05330-200-23-00
3 1 Nut, Jam 1 1/2”-12 NPT 05700-000-86-23
4 4 Hose Clamp, 1 1/16" - 2” 04730-719-18-00
5 1 Hose,1 1/4” x 2 1/4” Reinforced 05700-011-44-48
6 1 Motor, Wash 06105-121-60-06
7 1 Hose, Bottom Manifold Pump 05700-001-22-92
8 1 Gasket, Suction Adapter 05330-021-40-87
9 1 Casting, Suction Adapter 09515-031-39-86
10 4 Washer, S/S 1/4”-20 I.D. 05311-174-01-00
11 6 Locknut, 1/4”-20 S/S 05310-374-01-00
12 4 Washer, 1/4” I.D. x 3/4” O.D. S/S 05311-011-76-30
JP-24BPNSU Technical Manual
7610-002-38-50 Rev. D (11/11/2005)
1
2
3
5
4
6
12
4
7
4
8
9
10
11 - NOT SHOWN
11 - NOT SHOWN
