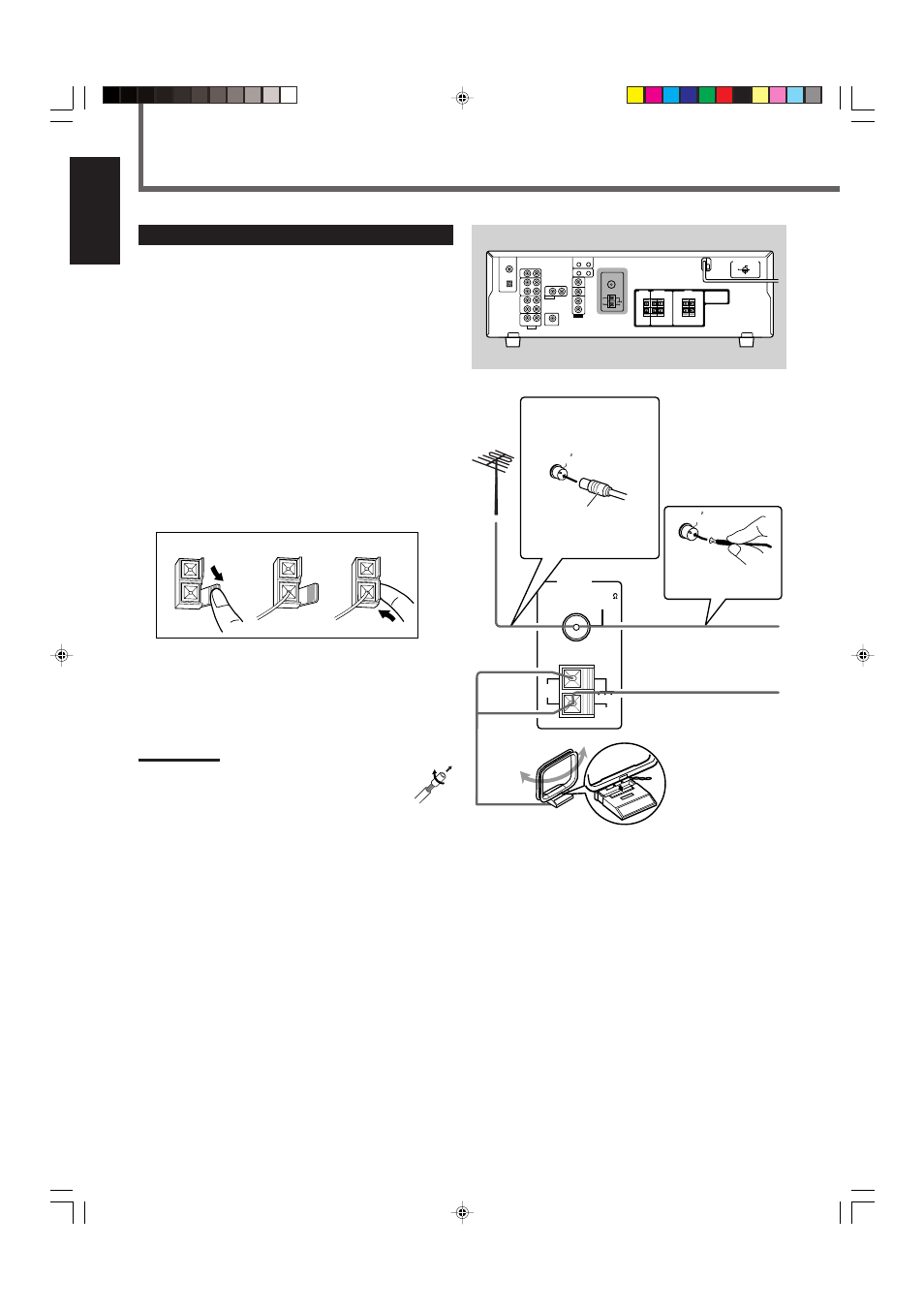

Connecting the AM and FM Antennas
AM antenna connection
Connect the supplied AM loop antenna to the AM LOOP
terminals.
Turn the loop until you have the best reception.
• If the reception is poor, connect an outdoor single vinyl-
covered wire (not supplied) to the AM EXT terminal. (Keep
the AM loop antenna connected.)
FM antenna connection
Connect the supplied FM antenna to the FM 75 Ω COAXIAL
terminal as a temporary measure.
Extend the supplied FM antenna horizontally.
• If the reception is poor, connect an outdoor FM antenna (not
supplied). Before attaching a 75 Ω coaxial cable with a
connector, disconnect the supplied FM antenna.
7 How to connect the AM antenna cord
1
Open the terminal.
2
Insert the AM antenna cord.
3
Close the terminal.
Notes:
• If the AM loop antenna wire is covered with vinyl, remove
the vinyl by twisting it as shown to the right.
• Make sure the antenna conductors do not touch any other
terminals, connecting cords, or power cord. This could
cause poor reception.
Getting Started
Rear panel
AM loop antenna
(supplied)
If AM reception is poor, connect
outdoor single vinyl-covered wire
(not supplied).
Extend the supplied FM
antenna horizontally.
1 2 3
FM antenna (supplied)
• If FM reception is poor,
connect an outdoor FM
antenna.
Snap the tabs on the
loop into the slots of
the base to assemble
the AM loop antenna.
75 Ω coaxial cable with a
connector (not supplied)
