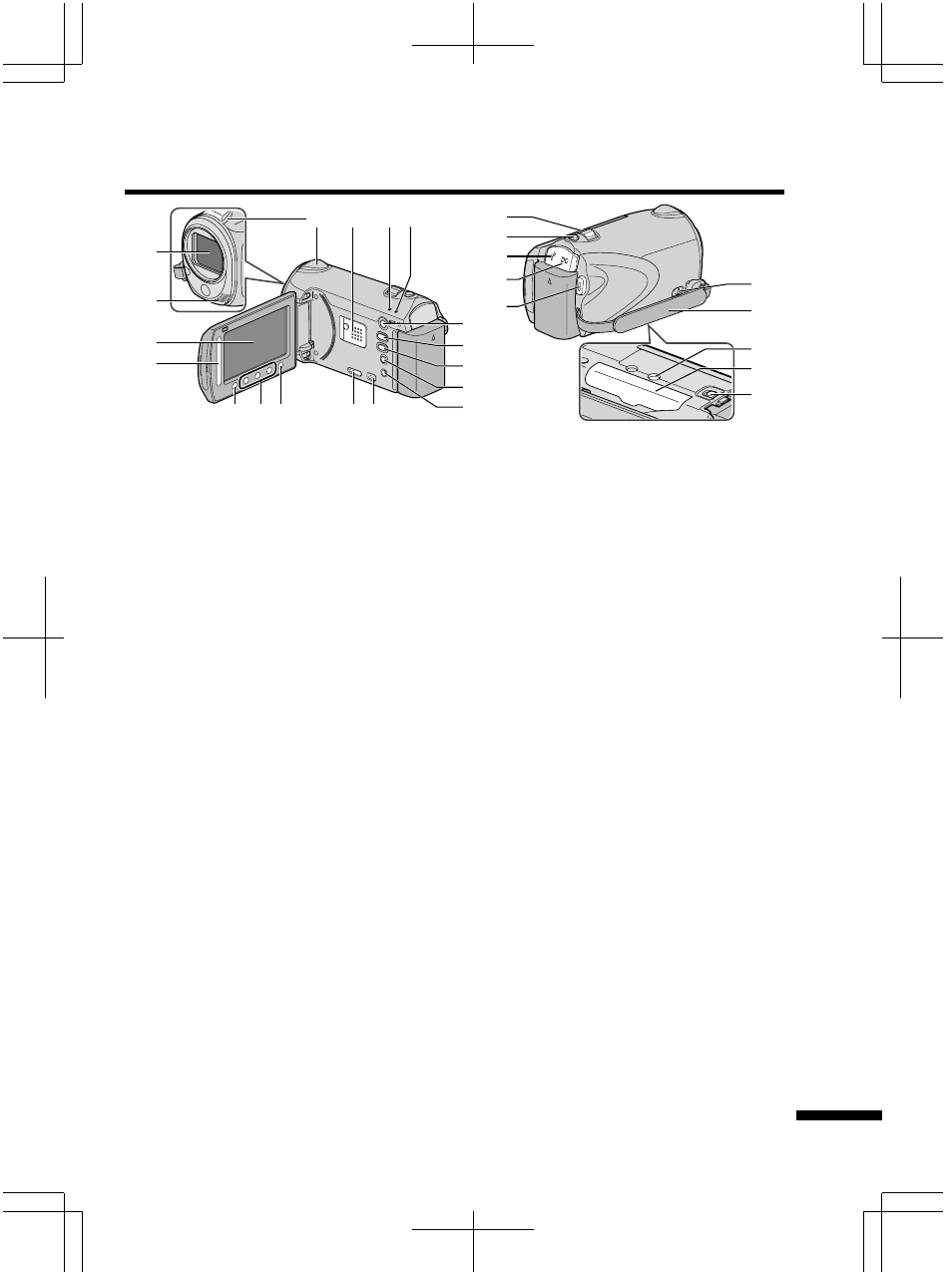

Names of Parts and Functions
AV
1
2
3
4
5 67
q
p
r
hg
9 8 0a
d
c
b
f
e
k
m
l
j
i
o
n
A Lens
B Stereo Microphone
C LCD Monitor
Turns the power on/off by opening and
closing.
D Slider
Selects an image or item.
E Button
Confirms the selected image or item.
F Operation Buttons
Functions differently according to the
operation.
G (menu) Button ( P.23)
H Camera Sensor
I Speaker
J ACCESS (Access) Lamp
Lights up/blinks during recording or
playback.
K POWER/CHARGE (Power/Charge)
Lamp ( P.6)
L + (Play/Record Mode) Button
Switches between recording and
playback modes.
M / (Video/Still Image) Button
Switches between video and still
image modes.
N UPLOAD (Upload) Button
Recording Takes videos in
YouTube
¥ format.
Playback Changes the video to
YouTube
¥ format.
O , (Power/Information) Button
Recording Displays the remaining
time as well as the
battery power during
continuous recording.
Playback Displays file information.
Press and hold to turn the power on/off
while the LCD monitor is opened.
P AV Terminal ( P.16, P.19)
Q COMPONENT (Component)
Connector ( P.16)
R HDMI Mini Connector ( P.16)
S Zoom/Volume Lever ( P.13, P.15)
T SNAPSHOT (Still Image Recording)
Button ( P.14)
U USB Terminal ( P.22)
V DC Terminal ( P.6)
W START/STOP (Video Recording)
Button ( P.13)
X Grip Belt Release Lever
Y Grip Belt ( P.7)
Z Tripod Mounting Hole
a SD Card Slot ( P.8)
b Battery Release Lever ( P.6)
For more information, refer to the Detailed User Guide
http://manual.jvc.co.jp/index.html/
