Playing Back on TV
1
Connect to a TV.
Refer also to the instruction manual of the TV.
** The component cable recommended is QAM1266-001.
● Press the Power button (,) for more than 2 seconds to turn off this unit.

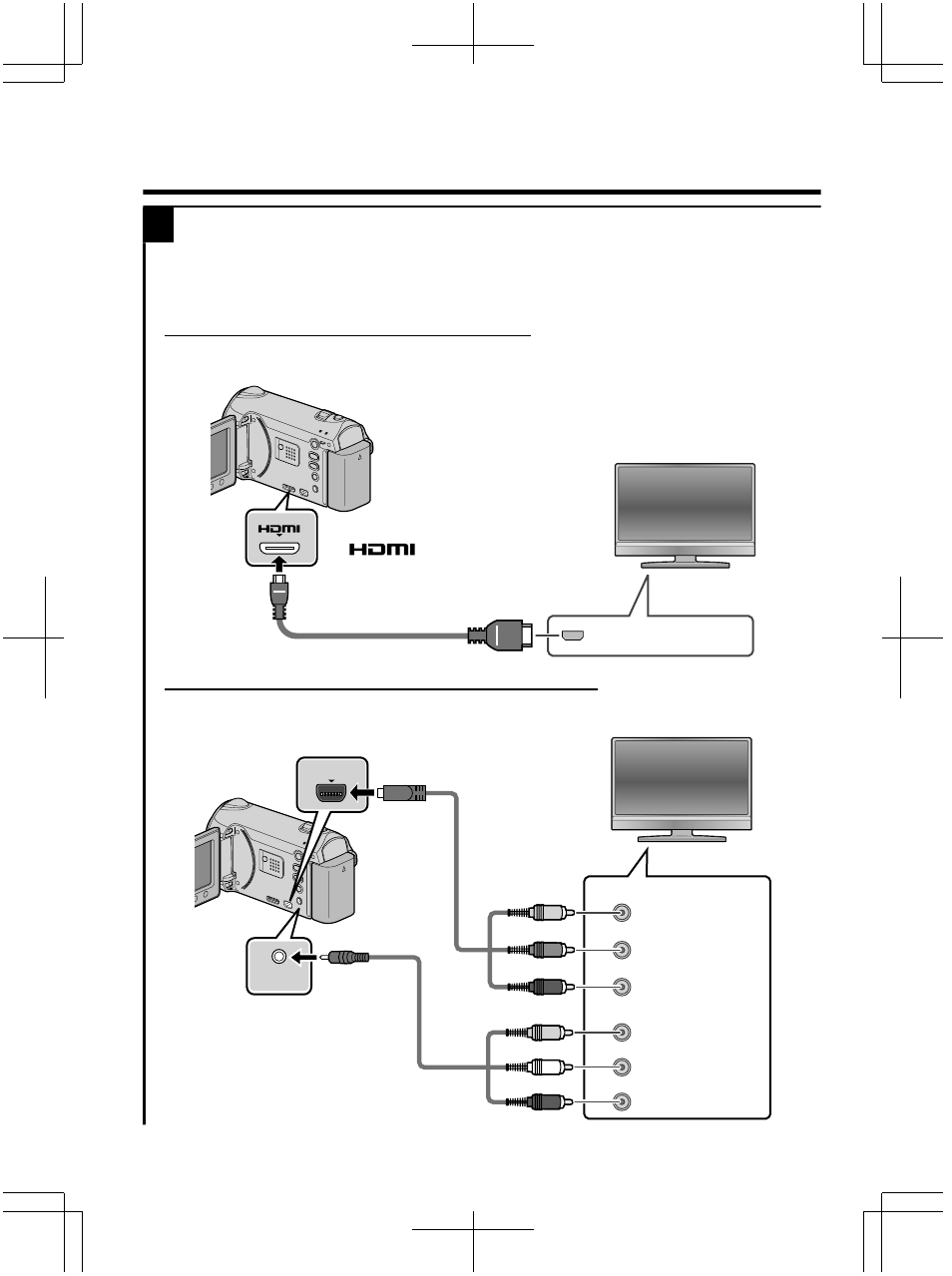

To connect using the HDMI mini connector
If you are using an HDTV, you can play back in HD quality by connecting to the HDMI
terminal.
AV
TV
HDMI Terminal Input
To (HDMI mini)
Terminal
HDMI Cable (Optional)
To connect using the COMPONENT/AV connector
If you are using an HDTV, you can play back in HD quality by connecting to the
COMPONENT terminal.
AV
AV
COMPONENT
Y
C B /P B
C R /P R
Green
Blue
Red
Component Video Input
Video Input
To COMPONENT
Terminal
TV
Video Input
Audio Input (L)
Audio Input (R)
White
* Yellow
Red
To AV Terminal
AV Cable
(Provided)
Component Cable**
(Optional)
* Do not connect the
yellow plug when
using component cable.
16 For more information, refer to the Detailed User Guide
