38
Connect the monitor for viewing the playback
image to the [VIDEO OUT] terminal.

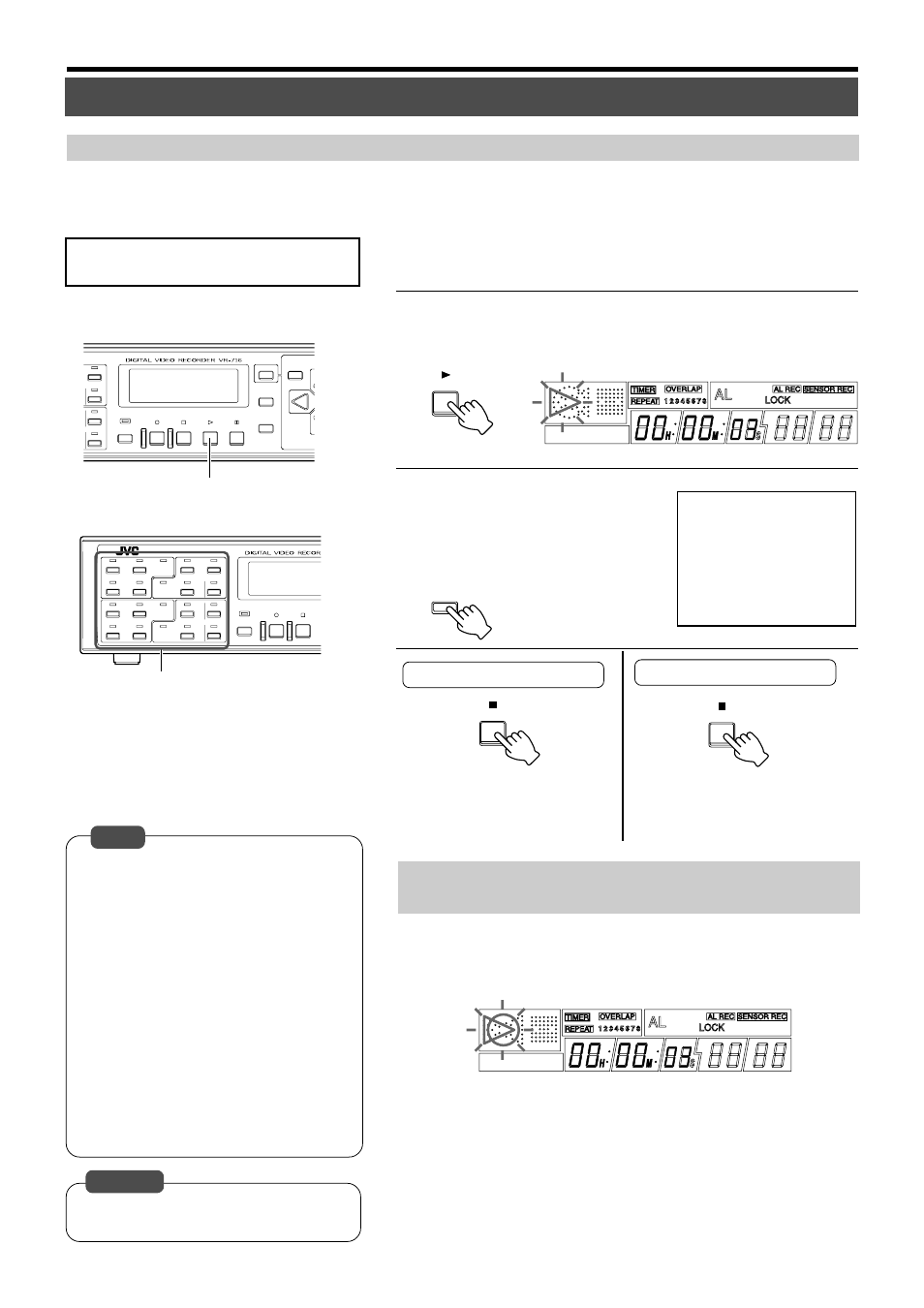

Viewing Recorded Images
Playing Back Recorded Images
Play back the recorded images. To do so, search according to the date of the image to be played back using “DATE/TIME SEARCH”
(
☞ page 40) or according to the time when alarm/sensor signals are received using the “ALARM/SENSOR SEARCH” feature (☞
page 41).
1.
Search for the image to view
• Search according to the date of the image. (
☞ page 40)
• Search according to alarm data. ( ☞ page 41)
2.
Press the [PLAY] button
• The playback mark [<] on the front display lights up and playback starts.
3.
Press the ‘Camera Selec-
tion’ button
• Select the camera no. for which its
image is to be displayed on the moni-
tor.
• Playback is possible regardless of the order
in Steps 1 and 2.
• When in the Simultaneous Playback mode that
enables playback and recording at the same
time, press the [STOP] button once to stop
playback, and press the [STOP] button again
to stop recording.
• If no matching image is found in the selected
camera no. during the specified date/time in
Step
2, the “SPECIFIED IMAGE IS NOT RE-
CORDED” and “JUMP WITH SKIP BUTTON”
messages will be displayed on the screen.
• When in the Simultaneous Playback mode and
playback is executed immediately after record-
ing starts, the “NO PLAYBACK POSSIBLE
IMAGES” message will appear on the screen.
In this case, press the [PLAY] button again
after recording has continued for about 1
minute.
Routine Uses (continued)
Playing Back During Recording (Simultaneous
Playback Mode)
To stop playback temporarily To stop playback
• Stops playback temporarily.
To restart playback, press the
[PLAY] button.
• Stops playback.
Upon stopping, the display
switches to the live camera im-
age. Image may be distorted for
an instant upon switching.
‘Camera Selection’
Notes
Front Display
Ⅵ The following modes of playback are possible
when in the Simultaneous Playback mode:
• Normal playback
• Direct Jump Playback
☞ Page 40 ‘Searching Image Accord-
ing to Date/Time’
• Jog/Shuttle Playback ☞ Page 42 ‘Adjusting Playback Speed’
• Skip Playback ☞ Page 43 ‘Viewing Recorded Images
in the Skip Mode’
Front Display
SEQUENCE MULTI REC STOP PLAY STILL
DISPLAY
CANCEL SEARCH
8
6
14
16
TIMER
2.
ALARM
SENSOR
SEQUENCE MULTI REC STOP
ALARM
SENSOR
ALARM SENSOR
ALARM
SENSOR
11 1
9 10
3 4
1 2
7 8
5 6
13 14
15 16
3.
PLAY
3
CAMERA 3
STILL STOP
Viewing of recorded images is possible when in the Recording mode.
This will not affect the images recorded.
• The playback mark [<] and the recording mark [_] on the front display
will blink alternately.
• Refer to the notes related to Summer Time.
( ☞ Page 116)
Caution
