Additional preparation

ENGLISH

AV32/28X25EU / AV32/28H20EU / AV28CH1EU / LCT1142-001A-U / English

Devices which can output the S-

VIDEO signal (Y/C signal) such as

a S-VHS VCR

Connect the device to an EXT terminal other
than the EXT-1 terminal.
You can choose a video input signal from the

S-VIDEO signal (Y/C signal) and regular
video signal (composite signal). For details
of how to operate the device, see “S-IN (S-

VIDEO input)” on page 22.

T-V LINK compatible VCR

Be sure to connect the T-V LINK compatible
VCR to the EXT-2 terminal. If not, the T-V
LINK function will not work properly.

• When connecting a T-V LINK compatible

VCR to the EXT-2 terminal, be sure to

connect the Decoder to the VCR. If not,
the T-V LINK function may not work
properly. After you have registered TV

channels to the Programme numbers (PR),
set the DECODER (EXT-2) function for
the Programme number (PR) to ON in

order to unscramble a scrambled TV
channel. For details of operation, see
“Using the DECODER (EXT-2)
function” on page 35.

Connecting headphones

Connect the headphones with a stereo mini-
jack (of 3.5 mm in diameter) to the
headphone jack at the TV front panel.

• When you connect the headphones, the

TV speakers issue no sound.

Video/sound signal output from

the EXT-2 terminal

You can arbitrarily change over the output of
the video/sound signal from the EXT-2

terminal. It is useful when you want to dub
the video/sound from another device on the
VCR connected to the EXT-2 terminal. For

details on how to do this operation, see
“DUBBING” on page 23.

TV output from the EXT-1 terminal

The output of video/sound signal of a TV

channel you are currently viewing is always
output from the EXT-1 terminal.

• Changing over a Programme number (PR)

also changes over the TV output from the
EXT-1 terminal.

• The video/sound signal from an EXT

terminal cannot be output.

• Teletext programmes cannot be output.

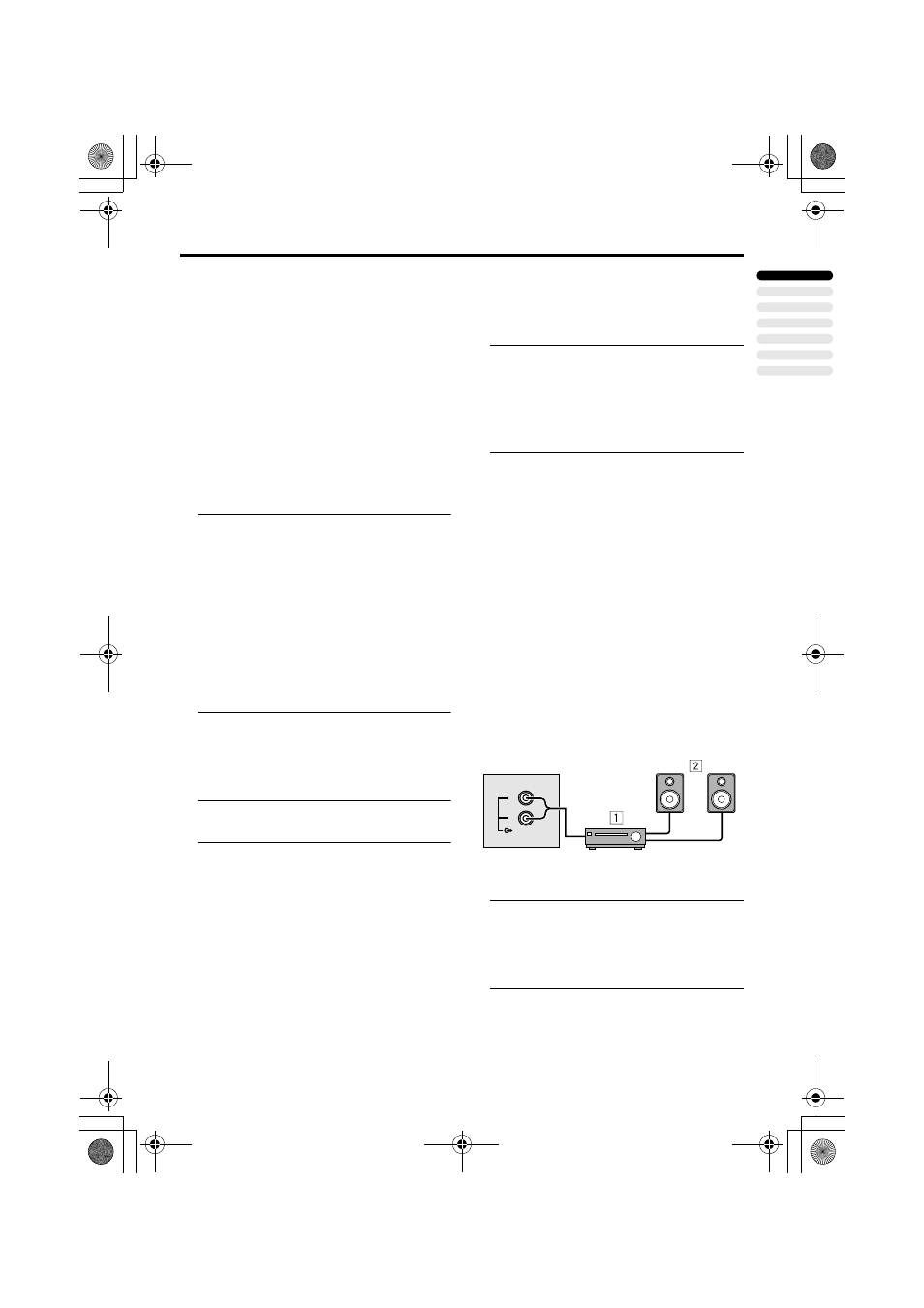

Connecting Speakers/Amplifier

(Excluding AV28CH1EU)

While referring to the Audio equipment
connection diagram, connect the audio
equipment you desire to the TV.

You can use external front speakers to listen
to the TV sound instead of the TV speakers.
Before connecting anything:

• Read the manuals provided with the

amplifier and speakers.

• Turn the TV and Amplifier off.
• To prevent magnetism from the speakers

adversely effecting the TV screen, use

magnetic-shielded speakers for the front
speakers.

• Note that connecting cables are not

supplied.

• The output from the AUDIO OUT

terminal is not interrupted by headphone
connection to the TV. You cannot cut the

sound from the front speaker even if you
connect a headphone to the TV.

AUDIO OUT

Back of the TV

Amplifier

Front speakers (Magnetic-shielded type)
