This
High-Lift Z-Bar Information with
Quick-Coupler and Bucket
544J
General Purpose General Purpose
Bucket Type/Size w/Bolt-On Edge w/Bolt-On Edge
Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 3.0 cu. yd. (2.3 m 3 ) 2.5 cu. yd. (1.9 m 3 )
Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 2.6 cu. yd. (2.0 m 3 ) 2.1 cu. yd. (1.6 m 3 )
Bucket Weight with Coupler. . . . . . . . . . . . . . . 3,595 lb. (1631 kg) 2,879 lb. (1306 kg)
Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 105.9 in. (2690 mm) 100.4 in. (2550 mm)
Breakout Force, SAE J732C . . . . . . . . . . . . . . . 17,557 lb. (7964 kg) 18,104 lb. (8212 kg)
Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 16,964 lb. (7695 kg) 17,687 lb. (8023 kg)
Tipping Load, 40-Degree Full Turn, SAE. . . . . . 14,202 lb. (6442 kg) 14,905 lb. (6761 kg)
Reach, 45-Degree Dump, 7-ft. (2.13 m)
Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 70.5 in. (1790 mm) 72.7 in. (1846 mm)
Reach, 45-Degree Dump, Full Height. . . . . . . . 43.0 in. (1092 mm) 43.4 in. (1102 mm)
Dump Clearance, 45 Degree, Full Height . . . . . 117.2 in. (2977 mm) 120.6 in. (3063 mm)
Overall Length, Bucket on Ground . . . . . . . . . . 25 ft. 11 in. (7905 mm) 25 ft. 7 in. (7807 mm)
Loader Clearance Circle, Bucket In Carry
Position . . . . . . . . . . . . . . . . . . . . . . . . . . 39 ft. 10 in. (12 151 mm) 39 ft. 4 in. (12 002 mm)
Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 28,836 lb. (13 080 kg) 28,122 lb. (12 756 kg)
Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 20.5R25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This
information is affected by tire size, ballast, and different attachments.
High-Lift Z-Bar Information with Quick-Coupler and Construction Fork
Tine Length 48 in. (1220 mm) 60 in. (1525 mm)
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . 26 ft. 8 in. (8139 mm) 27 ft. 8 in. (8442 mm)
Tipping Load, Straight (fork level, load
centered forward 24 in. [610 mm]
on 48-in. [1220 mm] tine and 30 in.
[762 mm] on 60-in. [1525 mm] tine) . . . . . 13,379 lb. (6069 kg)
12,651 lb. (5739 kg)
Tipping Load, 40-Degree Full Turn (fork
level, load centered forward 24 in.
[610 mm] on 48-in. [1220 mm]
tine and 30 in. [762 mm] on 60-in.
[1525 mm] tine) . . . . . . . . . . . . . . . . . . . . 11,345 lb. (5146 kg)
10,711 lb. (4858 kg)
Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 27,249 lb. (12 358 kg) 27,351 lb. (12 404 kg)

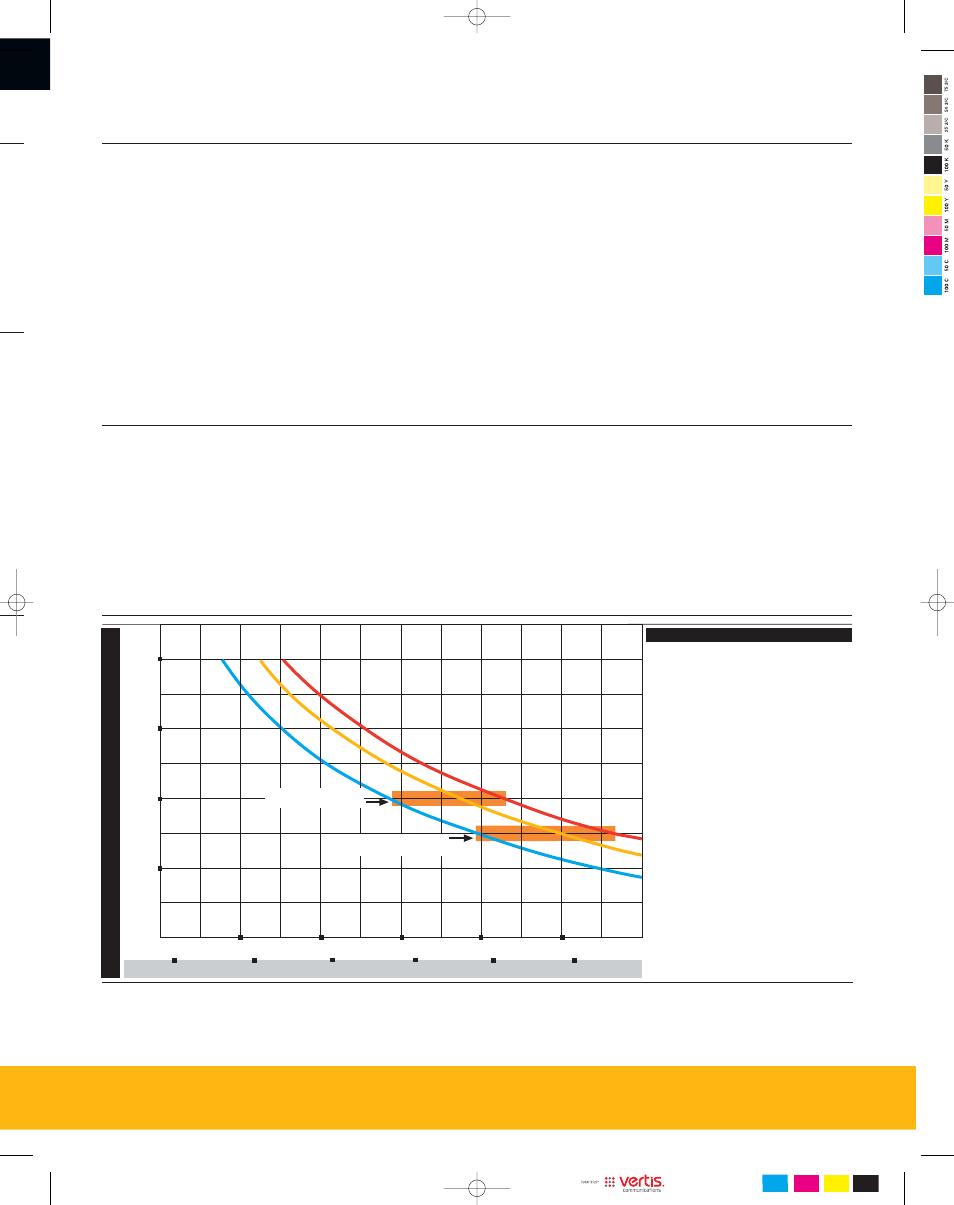

Standard Z-Bar Pin-On Bucket Selection Guide*
5.00
(3.8)
4.00
(3.0)
3.00
(2.3)
2.00
(1.5)
2,000 2,500 3,000 3,500
2100 1800 1500 1200
lb./cu. yd.
kg/m 3
This guide, representing bucket sizes not necessarily manufactured by Deere, will help you in selecting proper bucket size for material density, loader configuration, and operating conditions. Optimum bucket size is determined
after adding or subtracting all tipping load changes due to optional equipment. The “conservative load” line on this guide is recommended when operating in conditions such as soft ground and unlevel surfaces. The “maximum
load” condition on this guide is sometimes utilized when operating on firm ground and level surfaces. *
BUCKET SIZE cu.
yd.
(m
3
)
900
1,500
600
MATERIAL (Loose weight)
Caliche
Cinders
Clay and gravel, dry
Clay and gravel, wet
Clay, dry
Clay, natural bed
Clay, wet
Coal, anthracite, broken
Coal, bituminous, broken
Earth, dry, packed
Earth, loam
Earth, wet, excavated
Granite, broken or large crushed
Gravel, dry
Gravel, dry 1/2" to 2" (13 to 50 mm)
Gravel, pit run (graveled sand)
Gravel, wet 1/2" to 2" (13 to 50 mm)
Gypsum, crushed
Limestone, broken or crushed
Magnetite, iron ore
Phosphate rock
Pyrite, iron ore
Sand and gravel, dry
Sand and gravel, wet
Sand, dry
Sand, wet
Sandstone, broken
Shale
Slag, broken
Stone, crushed
Topsoil
lb./cu. yd.
2,100
1,000
2,400
2,600
2,500
2,800
2,800
1,850
1,400
2,550
2,100
2,700
2,800
2,550
2,850
3,250
3,400
2,700
2,600
4,700
2,160
4,350
2,900
3,400
2,400
3,100
2,550
2,100
2,950
2,700
1,600
kg/m 3
1250
590
1420
1540
1480
1660
1660
1100
830
1510
1250
1600
1660
1510
1690
1930
2020
1600
1540
2790
1280
2580
1720
2020
1420
1840
1510
1250
1750
1600
950
M
ax
im
um
Loa
d
No
rm
al
Lo
ad
Co
ns
erv
ativ
e
Lo
ad
Deere 3.0-cu.-yd. (2.3 m 3 )
General-Purpose Bucket
Deere 2.5-cu.-yd. (1.9 m 3 )
General-Purpose Bucket
