Names of parts and their functions

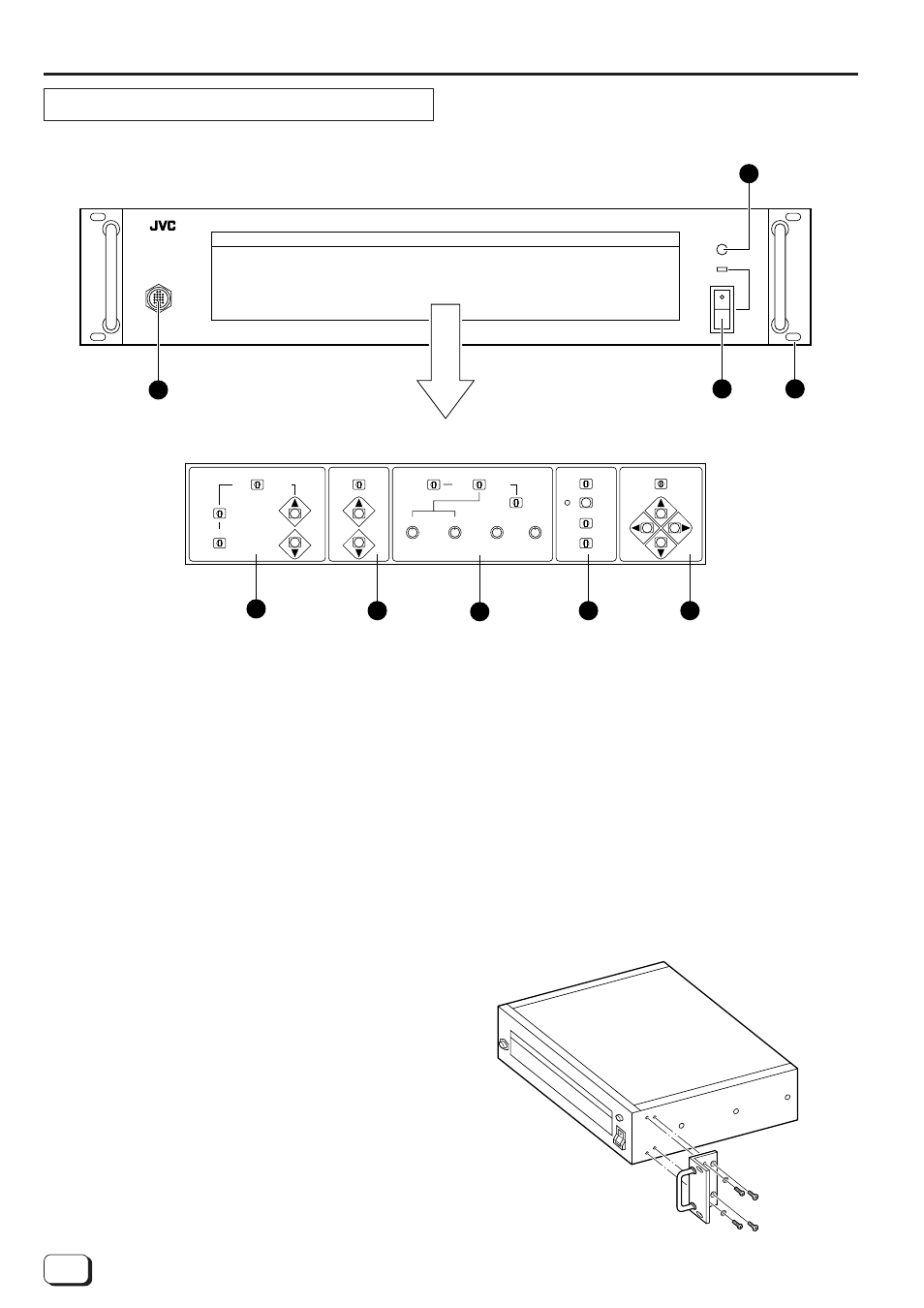

Camera control unit (front panel)
1 [POWER] power switch and
power indication LED
2 [PUSH OPEN] door button
Press to open the function box.
3 [CAMERA] camera cable connector
Connect to the camera head using the optional
camera cable.
4 Gain control section
Set for automatic or manual gain adjustment. Set
the automatic adjustment combining the gain and
shutter.
5 Shutter control section
Set the shutter speed of the electronic shutter.
When [ALC+EEI] is set in the gain control section,
the setting operation for the shutter control section is
disabled.
6 White balance control section
Adjust the white balance automatically or manually.
Perform the fine adjustment for red or blue.
7 Mode control section
Switch the signal output to the monitor among
camera, colour bar and 100% white. Also, switch
between the negative and positive or select whether
or not the date and time is displayed.
8 Menu control section
Display the menu to carry out various settings.
9 Handle (provided)
Use the screws and washers provided to secure the
handle to the Camera Control Unit.
Note: Be sure to attach the handle securely so that
you do not accidentally drop the unit.
Interior of the function box
Handle installation
