2

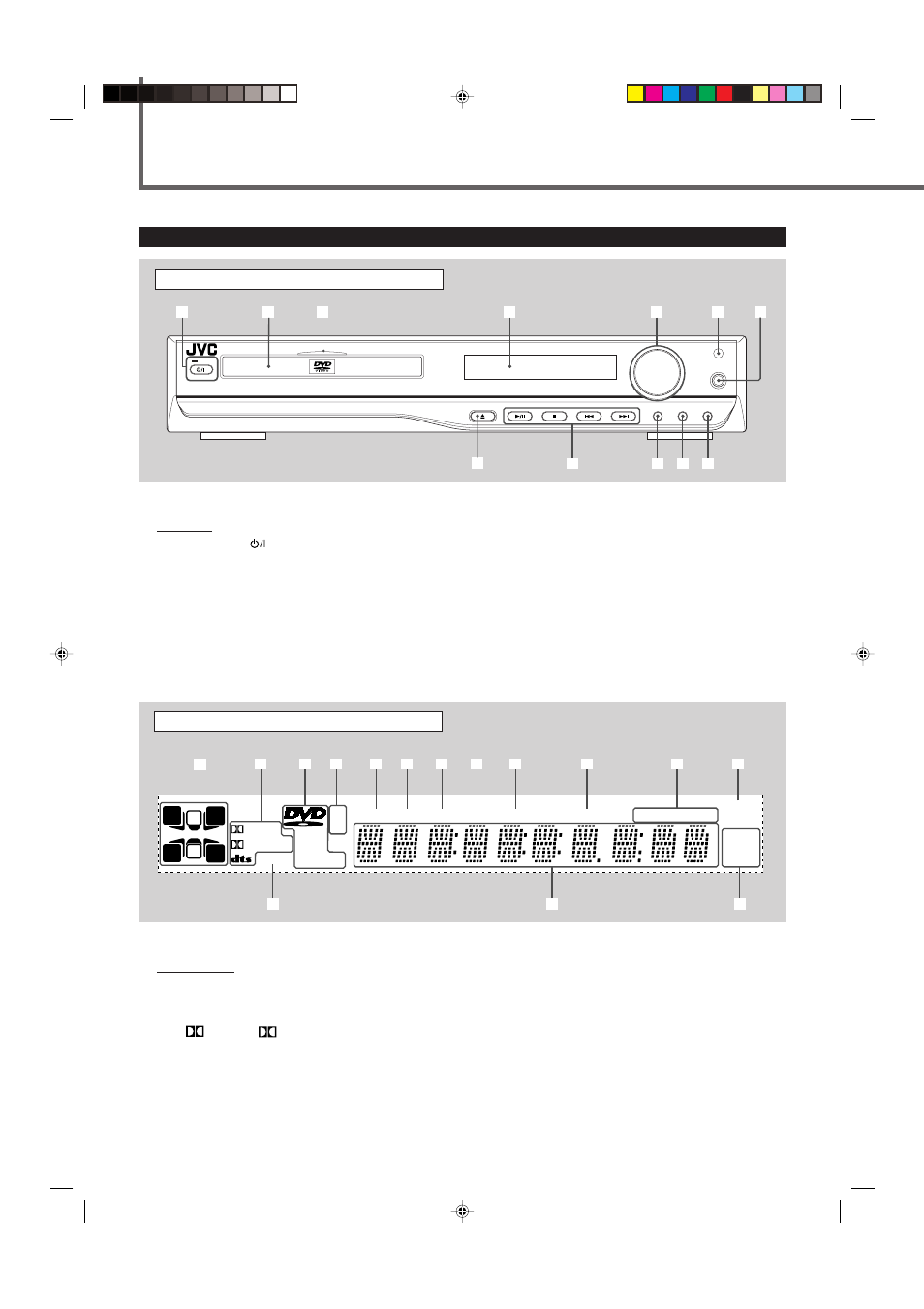

Parts Identification

Front Panel

See pages in the parentheses for details.

Display Window

1 Audio channel indicators

• Indicates audio channels currently source signal.

2 Sound signal indicators (19, 20)

DIGITAL,

PRO LOGIC II, and DTS

3 Disc indicators (23)

• DVD, CD, VCD, and MP3

4 Playback indicators

3 (play) and 8 (pause)

5 TITLE indicator (23)
6 TRK (track) indicator (23)

VOLUME

PHONES

DSP

SURROUND

SOURCE

STANDBY

STANDBY/ON

D V D D I G I T A L C I N E M A S Y S T E M T H - A 3 5

1

2

8

9

p

q

w

3

4

5

6

7

See pages in the parentheses for details.

Front Panel

1 STANDBY/ON

button and STANDBY lamp (10 – 15)

2 Disc tray (10, 12)
3 Illumination lamp
4 Display window
5 VOLUME control (10, 12, 14)
6 Remote sensor
7 PHONES jack (17)
8

0 (open/close) button (10 – 13, 23, 39)
• Pressing this button also turns on the power and

changes the source to the DVD player.

9

3/8, 7, 4, and ¢ buttons
• Pressing

3/8 also turns on the power and changes the

source to the DVD player.

p SOURCE button (10, 12, 14, 16, 46)
q SURROUND button (11, 13, 15, 17, 20)
w DSP button (11, 13, 15, 17, 20)

7 TUNED indicator (14, 46)
8 CHP (chapter) indicator (23)
9 PROG (program) indicator (29, 36)
p RDS indicator (48)
q Repeat mode indicators (27, 28, 34, 35)

• REPEAT, 1, and A–B

w Sleep indicator (18)
e STEREO indicator (47)
r Main display
t Frequency unit indicators

• MHz (for FM station) and kHz (for AM station)

Display Window

Center Unit

REPEAT 1

MHz

kHz

A–B

RDS

PROG

CHP

TUNED

TRK

TITLE

CD

ProLogic II

DIGITAL

VCD

STEREO

MP3

8

3

RS

R

L

LS

S

C

3

1

e

r

t

5

4

3

2

6

7

8

9

p

q

w
