Operating Weights 310SJ TMC
With Full Fuel Tank, 175-lb. (79 kg) Operator,
and Standard Equipment (Cab, Extend-
able Dipperstick, and 1,250-lb. [567 kg]
Counterweight) . . . . . . . . . . . . . . . . . . . . . . . . 18,017 lb. (8171 kg)
Optional Components
Tool Carrier (includes mechanical-front-
wheel drive) . . . . . . . . . . . . . . . . . . . . . . . 1,062 lb. (482 kg)
Backhoe Bucket Coupler . . . . . . . . . . . . . . . . . 138 lb. (63 kg)

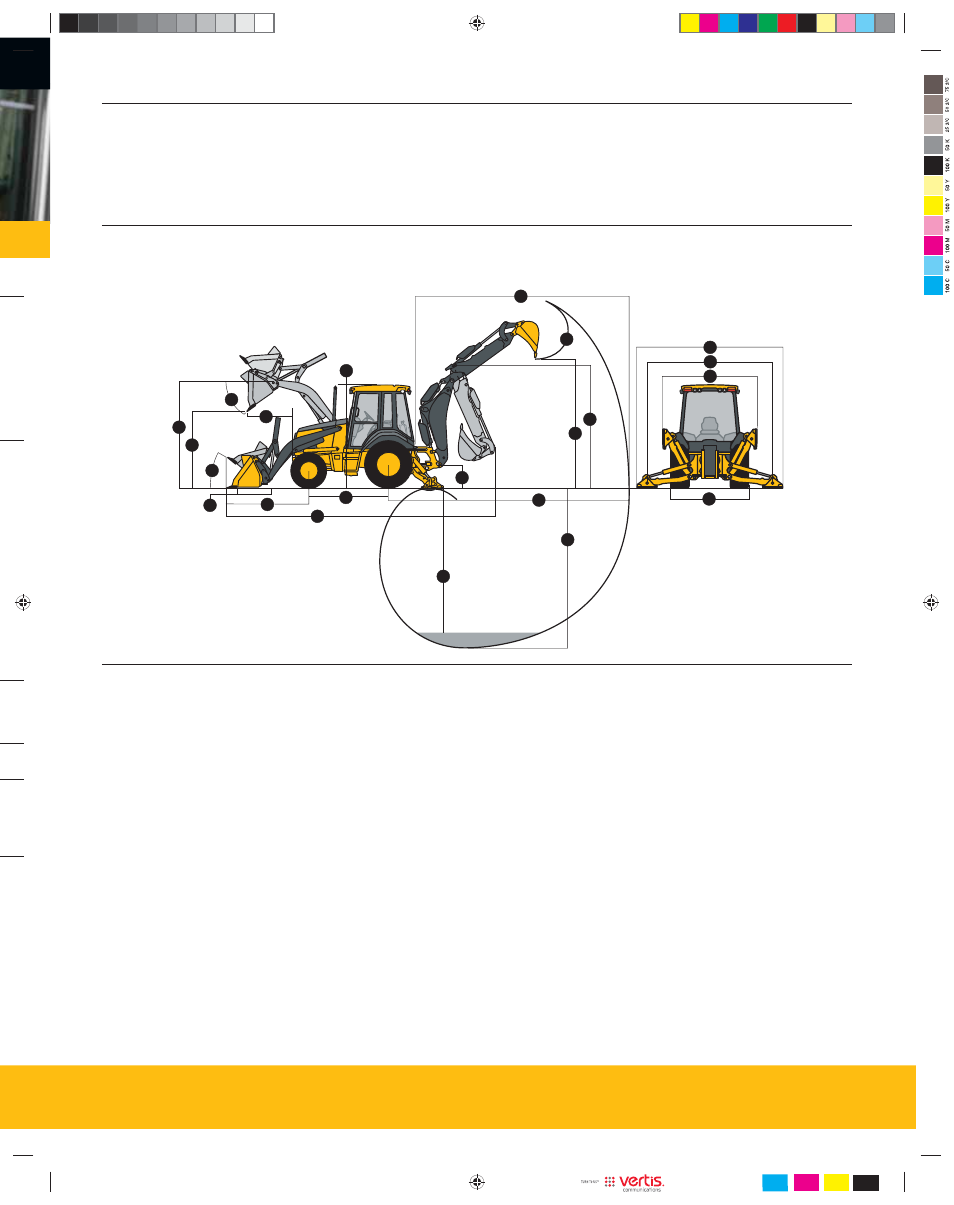

Overall Dimensions
A Ground Clearance (minimum) . . . . . . . . . . . . . . 13 in. (330 mm) E Length from Axle to Axle
B Overall Length (transport) . . . . . . . . . . . . . . . . . 23 ft. 6 in. (7.16 m) Non-Powered Front Axle . . . . . . . . . . . . . . .6 ft. 11 in. (2.11 m)
C Width over Tires . . . . . . . . . . . . . . . . . . . . . . . . 7 ft. 2 in. (2.18 m)
Mechanical-Front-Wheel-Drive Axle . . . . . .7 ft. 0 in. (2.14 m)
D Height to Top of ROPS/Cab . . . . . . . . . . . . . . . . 9 ft. 2 in. (2.79 m)
T
U
R
S
V
B
A
O
F
G
H
I
K
L
C
M
D
E
N
J
Q
P
Backhoe Dimensions / Performance 310SJ TMC
Backhoe specifications are with 24-in. x
7.5-cu.-ft. (610 mm x 0.21 m 3 ) bucket
Bucket Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–30 in. (305–762 mm)
Digging Force
Bucket Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 15,236 lb. (67.8 kN)
Crowd Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 8,090 lb. (36.0 kN)
Swing Arc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 deg.
Operator Control . . . . . . . . . . . . . . . . . . . . . . . . . . two joysticks
With Extendable Dipperstick
Retracted Extended
F Loading Height (truck loading position) . . . . . . . 11 ft. 3 in. (3.43 m) 14 ft. 1 in. (4.29 m)
G Reach from Center of Swing Pivot. . . . . . . . . . . 18 ft. 7 in. (5.66 m) 21 ft. 11 in. (6.68 m)
H Reach from Center of Rear Axle . . . . . . . . . . . . 22 ft. 1 in. (6.73 m) 25 ft. 4 in. (7.72 m)
I Digging Depth (SAE maximum) . . . . . . . . . . . . . 14 ft. 11 in. (4.55 m) 18 ft. 5 in. (5.61 m)
J Digging Depth (SAE)
2-ft. (610 mm) Flat Bottom . . . . . . . . . . . . . . . . 14 ft. 9 in. (4.50 m) 18 ft. 3 in. (5.56 m)
8-ft. (2440 mm) Flat Bottom . . . . . . . . . . . . . . . 13 ft. 9 in. (4.19 m) 17 ft. 6 in. (5.33 m)
K Stabilizer Width (transport) . . . . . . . . . . . . . . . . 7 ft. 2 in. (2.18 m) 7 ft. 2 in. (2.18 m)
L Stabilizer Spread (operating)
Standard Stabilizers . . . . . . . . . . . . . . . . . . . . . 10 ft. 2 in. (3.10 m) 10 ft. 2 in. (3.10 m)
Long Stabilizers . . . . . . . . . . . . . . . . . . . . . . . . 11 ft. 4 in. (3.45 m) 11 ft. 4 in. (3.45 m)
M Stabilizer Overall Width (operating)
Standard Stabilizers . . . . . . . . . . . . . . . . . . . . . 11 ft. 7 in. (3.53 m) 11 ft. 7 in. (3.53 m)
Long Stabilizers . . . . . . . . . . . . . . . . . . . . . . . . 13 ft. 3 in. (4.03 m) 13 ft. 3 in. (4.03 m)
N Bucket Rotation . . . . . . . . . . . . . . . . . . . . . . . . 190 deg. 190 deg.
O Transport Height . . . . . . . . . . . . . . . . . . . . . . . . 11 ft. 5 in. (3.48 m) 11 ft. 5 in. (3.48 m)
