sPeCiFiCations
Technical Specifications
Dimensions
60” L x 30” W x 38-1/2” H
(1524 mm) L x (762 mm) W x (977.9 mm) H
Drain/Overflow
A: 31-1/2” (800 mm) B: 11-11/16” (297 mm)
Cutout
NA
Total Weight
EV95, EW00: 320 lb. (145 kg)
EY20, EY25: 320 lb. (145 kg)
Operating Gallonage
Max: 75 U.S. Gal. (284 liters)
Min: 55 U.S. Gal. (208 liters)
Product Weight
EV95, EW00: 270 lb. (122 kg)
EY20, EY25: 270 lb. (122 kg)
Skirt Mounting
NA
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Blower: 115 VAC, 15 AMP, 60 Hz.
Installation Notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Ordering Information
Product Code:
EV95 Finestra™ 6030 Walk-In 14" Seat Pure Air Bath,
Left Hand
EW00 Finestra™ 6030 Walk-In 14" Seat Pure Air Bath,
Right Hand
EY20 Finestra™ 6030 Walk-In 17" Seat Pure Air Bath,
Left Hand
EY25 Finestra™ 6030 Walk-In 17" Seat Pure Air Bath,
Right Hand
• Left and Right Hand drain locations
• Standard drain kit, No. FB48827
• Accessories / Hardware:
Remote Drain Kit: #FC30XXX
Pillow: #EK91959
• Trim Kit Finishes Available:
Standard Part No. BN21XXX
(827) – Chrome
(829) – Bright Brass
(898) – Brushed Chrome
(826) – Brushed Nickel
(845) – Oil-Rubbed Bronze
(805) – Platinum
(815) – Satin Nickel
DRAIN/OVERFLOW
A
B
BACK
FRONT
LEFT END
RIGHT END
L
H
W
14" or 17"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2"
13-3/4"
Service Access
Service
Access
60"
30"
17-1/2"
5"
15"
6-5/8"
37"
13-3/4"
20"
4" x 16"
Seat
Floor

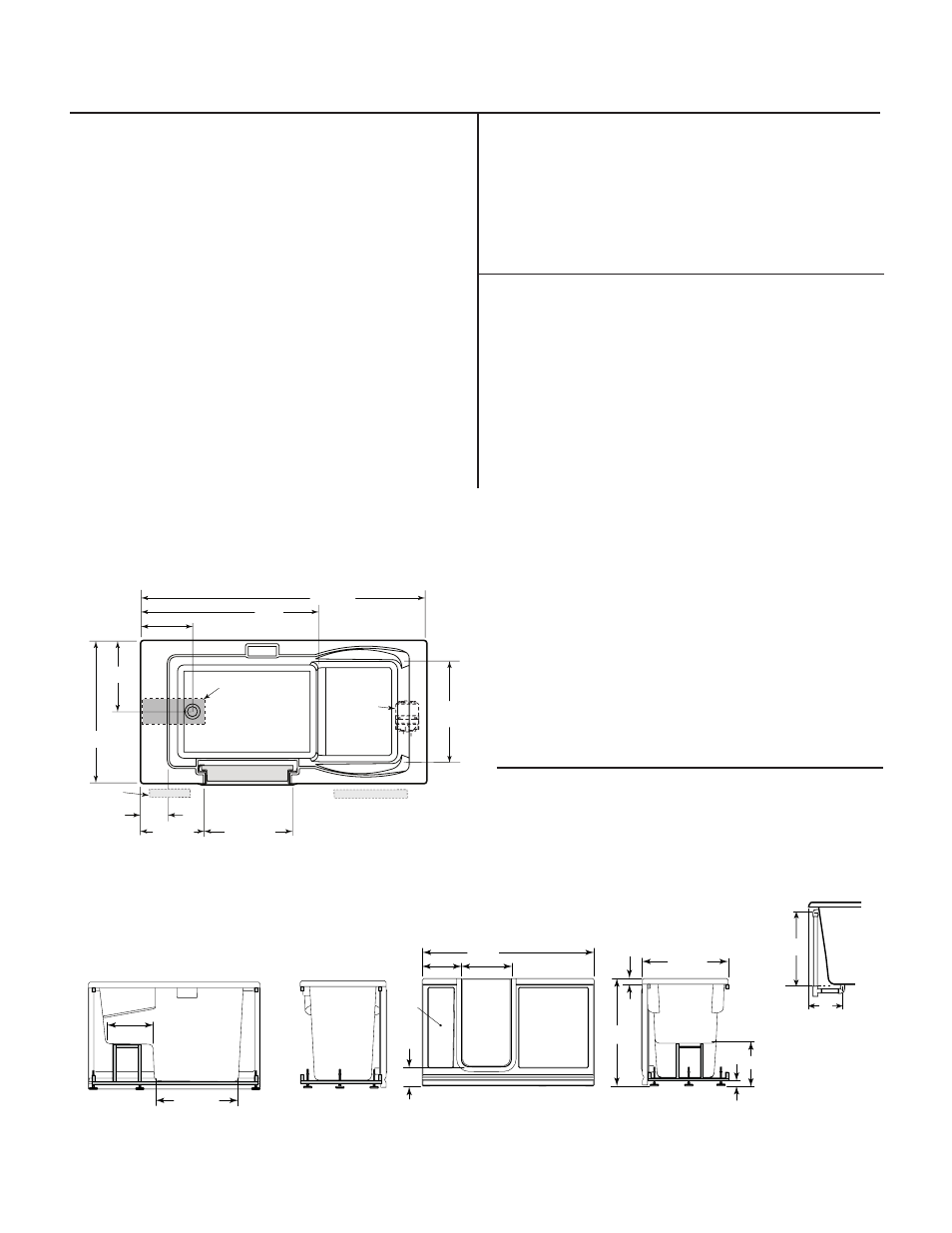

FINESTRA™ 6030
Blower
27" H x 24" L
Service Access
27" H x 9" L
Service Access
Door
Finestra™ 6030 Walk-In 14" Seat Pure Air Bath Left Hand (EV95) shown.
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum service access dimensions given.
