Jacuzzi Whirlpool Bath: finestra Walk-in Bath Page 11 fl61000B • 10/07
sPeCiFiCations
Technical Specifications
Dimensions
60” L x 30” W x 38-1/2” H
(1524 mm) L x (762 mm) W x (977.9 mm) H
Drain/Overflow
A: 31-1/2” (800 mm) B: 11-11/16” (297 mm)
Cutout
NA
Total Weight
EW25, EW30: 350 lb. (159 kg)
EY60, EY65: 350 lb. (159 kg)
Operating Gallonage
Max: 85 U.S. Gal. (322 liters)
Min: 70 U.S. Gal. (265 liters)
Product Weight
EW25, EW30: 300 lb. (136 kg)
EY60, EY65: 300 lb. (136 kg)
Skirt Mounting
NA
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Blower: 115 VAC, 15 AMP, 60 Hz.
Installation Notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Ordering Information
Product Code:
EW25 Finestra™ 6036 Walk-In 14" Seat Pure Air Bath,
Left Hand
EW30 Finestra™ 6036 Walk-In 14" Seat Pure Air Bath,
Right Hand
EY60 Finestra™ 6036 Walk-In 17" Seat Pure Air Bath,
Left Hand
EY65 Finestra™ 6036 Walk-In 17" Seat Pure Air Bath,
Right Hand
• Left and Right Hand drain locations
• Standard drain kit, No. FB48827
• Accessories / Hardware:
Remote Drain Kit: #FC30XXX
Pillow: #EK91959
• Trim Kit Finishes Available:
Standard Part No. BN21XXX
(827) – Chrome
(829) – Bright Brass
(898) – Brushed Chrome
(826) – Brushed Nickel
(845) – Oil-Rubbed Bronze
(805) – Platinum
(815) – Satin Nickel

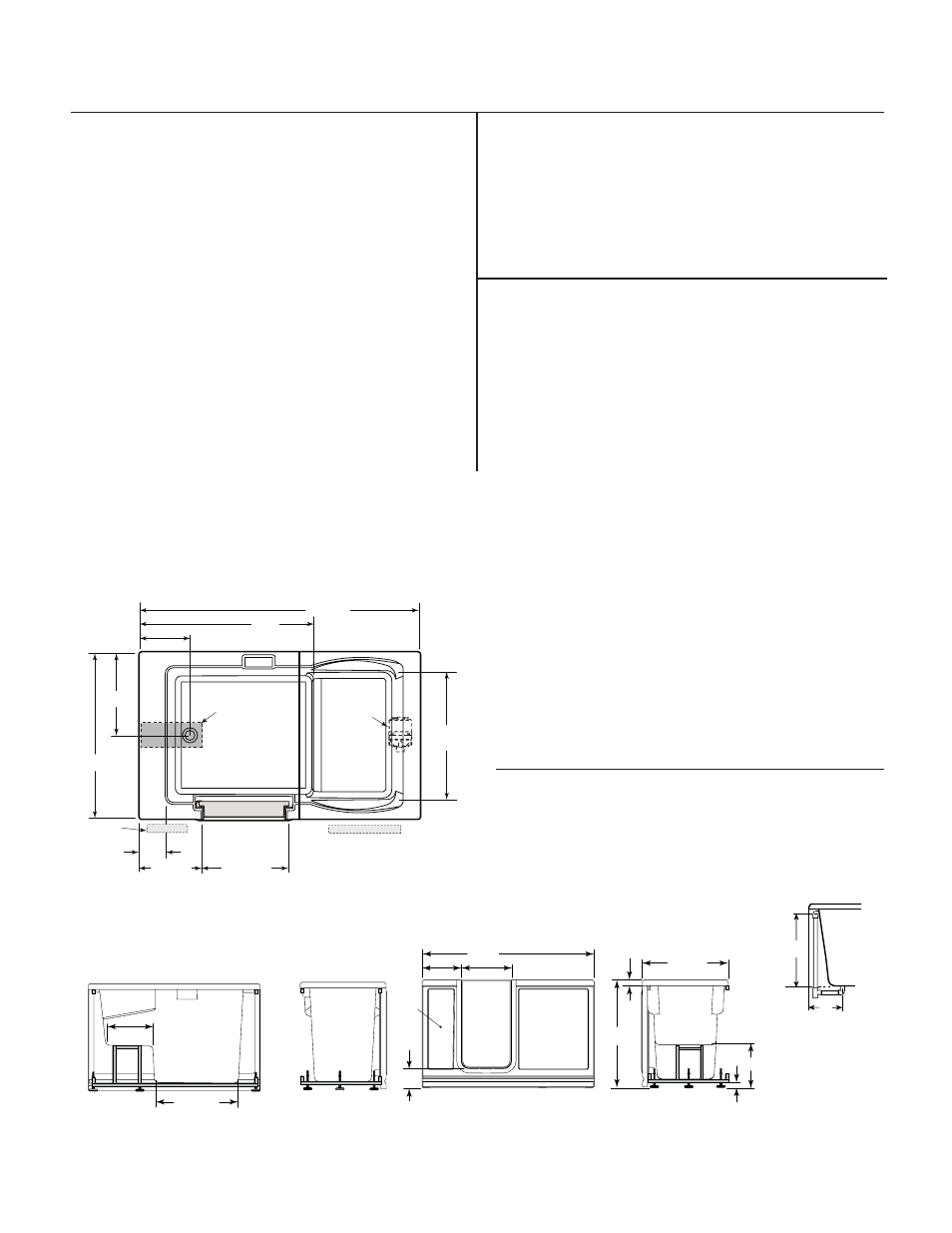

DRAIN/OVERFLOW
A
B
BACK FRONT LEFT END RIGHT END
L
H
W
14" or 17"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2" 13-3/4"
Service Access
Service
Access
60"
36"
17-1/2"
5"
18"
6-5/8"
37"
13-3/4"
26"
4" x 16"
Seat Floor
FINESTRA™ 6036
Blower
27" H x 24" L
Service Access
27" H x 9" L
Service Access
Door
Finestra™ 6036 Walk-In 14" Seat Pure Air Bath Left Hand (EW25) shown.
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum service access dimensions given.
