Jacuzzi Whirlpool Bath: finestra Walk-in Bath Page 17 fl61000B • 10/07
ProPer Door ClosUre
The door uses a magnetic seal with a handle to fasten the
door and a rubber strip with a double seal. The following
instructions provide details on how to make sure the proper
seal is achieve and on the use of the door handle. Proper
closure will will prevent any water leakage.
Warning: The equipment uses a magnetic seal on the
door that is capable of pinching your fingers in the door.
The magnetic door is perfectly safe, but may affect a heath
device as a pacemaker if either the edge of the door or the
inside edge of the door frame come in direct contact with the
immediate area of the device.
The door opens towards the inside of the bath. Note the open
and closed positions of the door handle are illustrated. Use
the handle to fasten the door to reinforce proper closure. The
magnetic strip along the edge of the door and the inside edge
of the door frame is unseen, and ensures a proper seal.
(Continued)

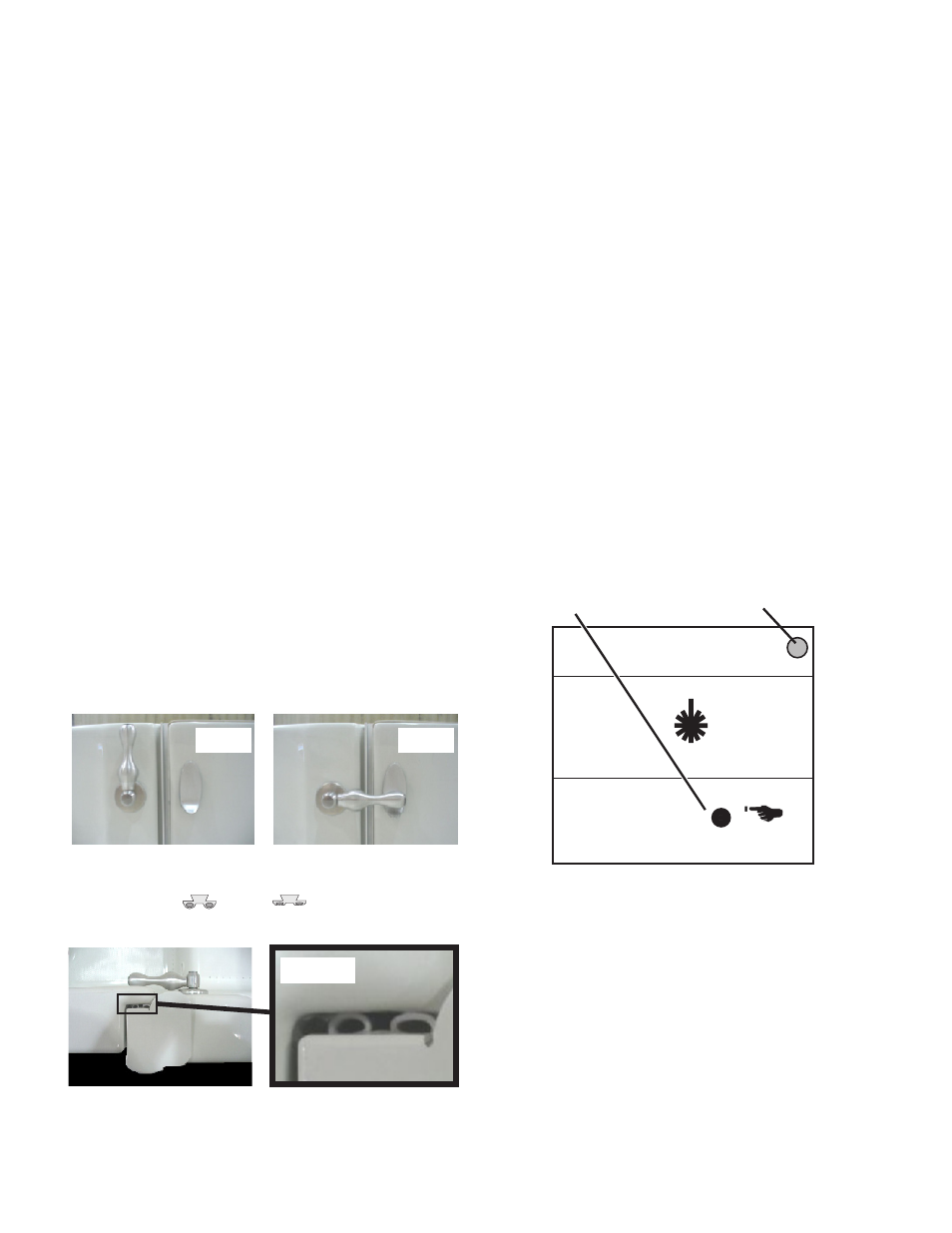

Use of Door Handle
Open
position
Closed
position
Door open Door closed
Check seal Closure
Detail of double seals closed
Double seals
fully closed
Door is closed (see detail at right
• Pressing a toggle button after pressing both
the Pump/Motor button first and then the Wave
Function button will increase or decrease wave
action on both air valves.
Pressing a toggle button after pressing either
Air Valve buttons increase or decrease wave
action on that air valve.
• Pressing a toggle button after pressing the Air
Bath Switch increase or decrease the air flow
through the bottom air channels
note: When switching between functions, the LED for
the inactive functions will dim and the active function will
brighten.
The rubber strip with a double seal will prevent leakage and
also provide a visual check before filling the bath with water.
The figure shows the rubber strip in a fully closed position. The
view shows the rubber seal from the top.
note: The rubber strip has a double seal. When the door is
open the seals are open (left); with the door closed, the seals
are closed (right).
raPiDHeat ™
These units have a RapidHeat ™ heater installed on the
intake or discharge lines. the heater will help maintain the
temperature of the water in the bath. RapidHeat™ requires
a separate dedicated 120 VAC, 15 A GFCI receptacle.
operation
With the heater installed and the whirlpool pump is operating,
the heating function is totally automatic. No user control
required.
Vacuum/Pressure switch
The heater is equipped with a preset vacuum/pressure switch
which will not allow the heater to turn ON if the pump is not
running with water flowing through the whirlpool system.
High-limit switch
The heater includes an exclusive High-Limit switch. This
safety circuit will not false trip from hot tap water. It will only
turn off the heater if the thermostat fails. To reset, press the
button.
If the high-limit trips frequently, contact your Authorized
Electrical/Mechanical Service Provider. Visit our web site at
http://www.jacuzzi.com/.
To find service agent listings for:
Electrical or Mechanical Repairs visit
http://jacuzzi.com/pdf/ASA.PDF
Finish, Surface, or Shell-Related Repairs visit
http://jacuzzi.com/pdf/AFC.PDF
Repair Parts or Accessories visit
http://jacuzzi.com/pdf/MPD.PDF
rapid Heat Controls
Heater on
oVerHeat
ProteCtion
PUsH to reset
rapid heat
Reset switch Heater ON indicator
