INDEX

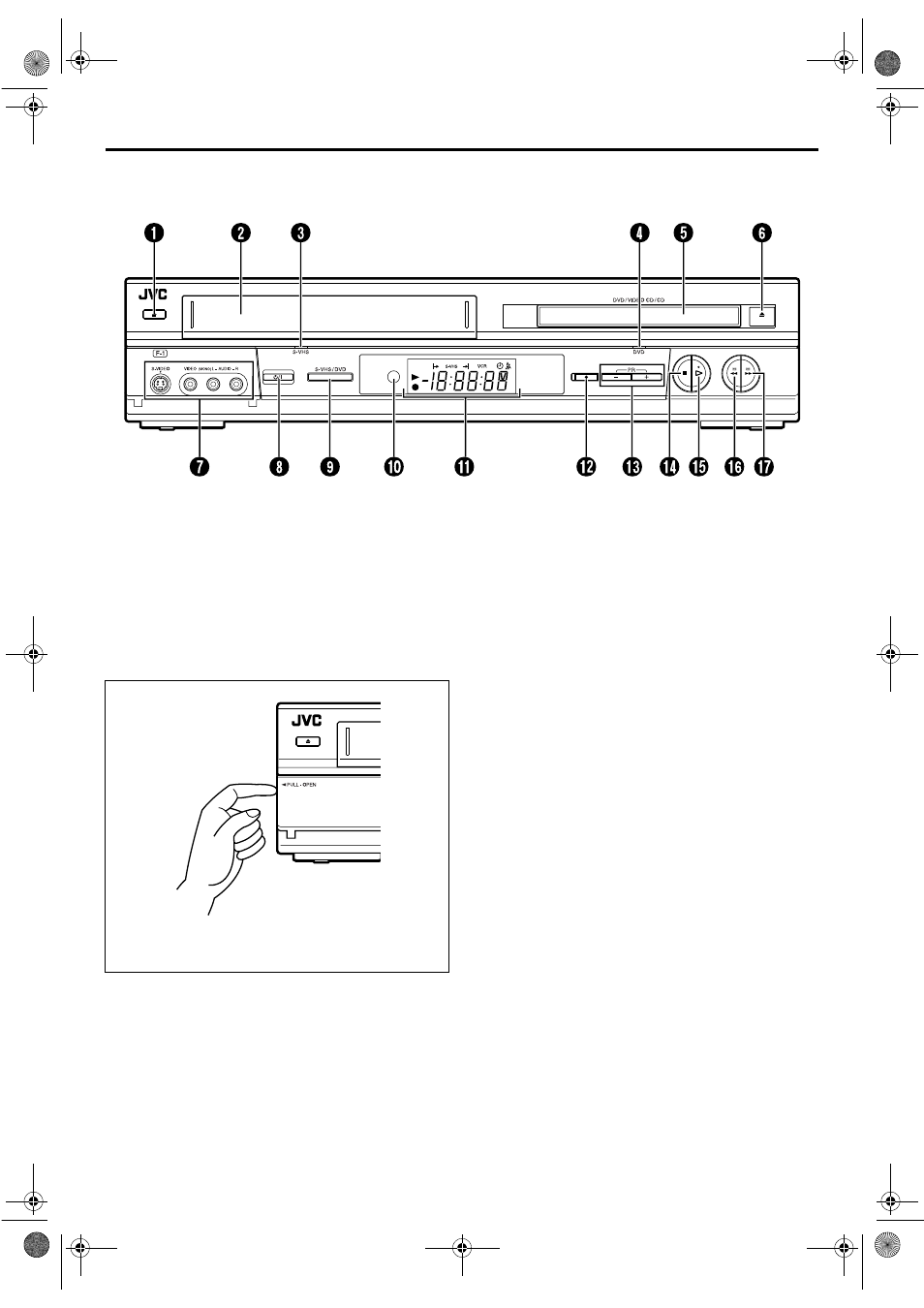

FRONT VIEW
A S-VHS Eject Button (x) ੬ pg. 22, 26
B S-VHS Cassette Loading Slot
C S-VHS Indicator
੬ pg. 22, 26
D DVD Indicator ੬ pg. 36
E Disc Tray
F DVD Eject Button (x)
੬ pg. 36
G S-video/Video/Audio Input Connectors
(S-VIDEO/VIDEO/AUDIO) ੬ pg. 58
H STANDBY/ON Button (1) ੬ pg. 13
I S-VHS/DVD Button ੬ pg. 22, 26, 36
J Infrared Beam Receiving Window
K Front Display Panel
੬ pg. 9
L Record Button (7) ੬ pg. 26
M Programme Button (PR +/–) ੬ pg. 26
N Stop Button (8) ੬ pg. 22, 26, 36
O Play Button (4) ੬ pg. 22, 36
P Rewind Button (3) ੬ pg. 22, 23, 38
Q Fast Forward Button (5) ੬ pg. 22, 23, 38
To access covered connectors, pull and open the
connector cover.
