Perfect Connections

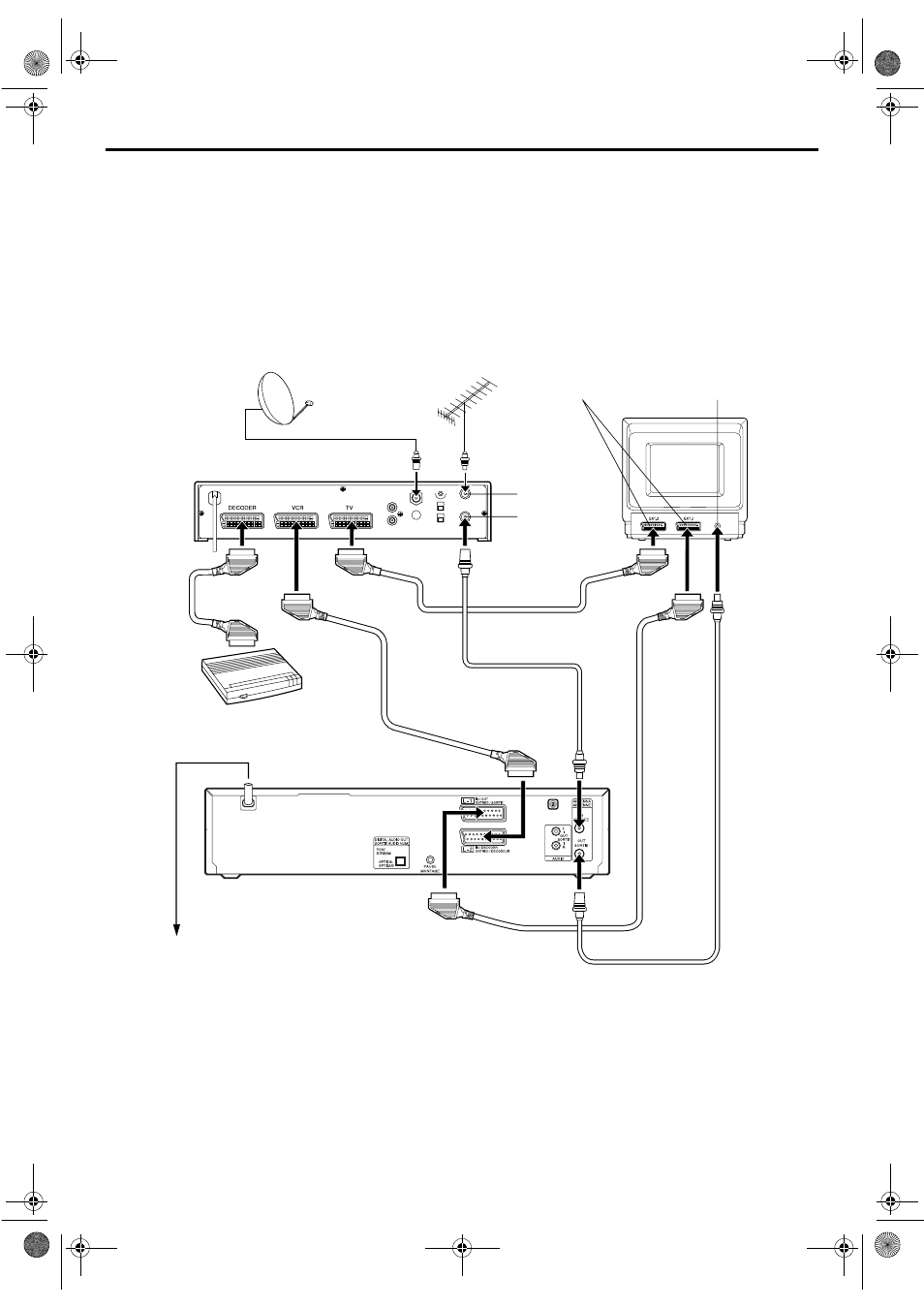

This is an example of recommended connection if your
TV has two 21-pin AV input (SCART) connectors.
Connect the decoder to the satellite receiver’s connector
if you have a decoder, L-1 IN/OUT connector to TV’s
connector, and L-2 IN/DECODER connector to the
satellite receiver’s connector. Then connect the satellite
receiver and TV.
NOTES:
● Set “L-2 SELECT” to “A/V”. ( ੬
pg. 61)
● You can use Automatic Satellite Programme Recording
function (
੬
pg. 35) with this connection. (S-VHS deck only)
● To record a programme via the satellite receiver, select L-2
mode by pressing AUX (number key “0”) and/or PR so that
“L-2” appears on the front display panel. (S-VHS deck only)
● To receive a scrambled broadcast, descramble the signal with
the decoder connected to the satellite receiver.
● For details, refer to the instruction manual of the satellite
receiver and decoder.
Outdoor unit
Satellite cable
Satellite receiver
Aerial
TV aerial cable
21-pin SCART
connector
Back of TV
ANTENNA IN
ANTENNA OUT
Aerial
connector
Decoder
Mains outlet
Back of unit
