8.0 Control Functions

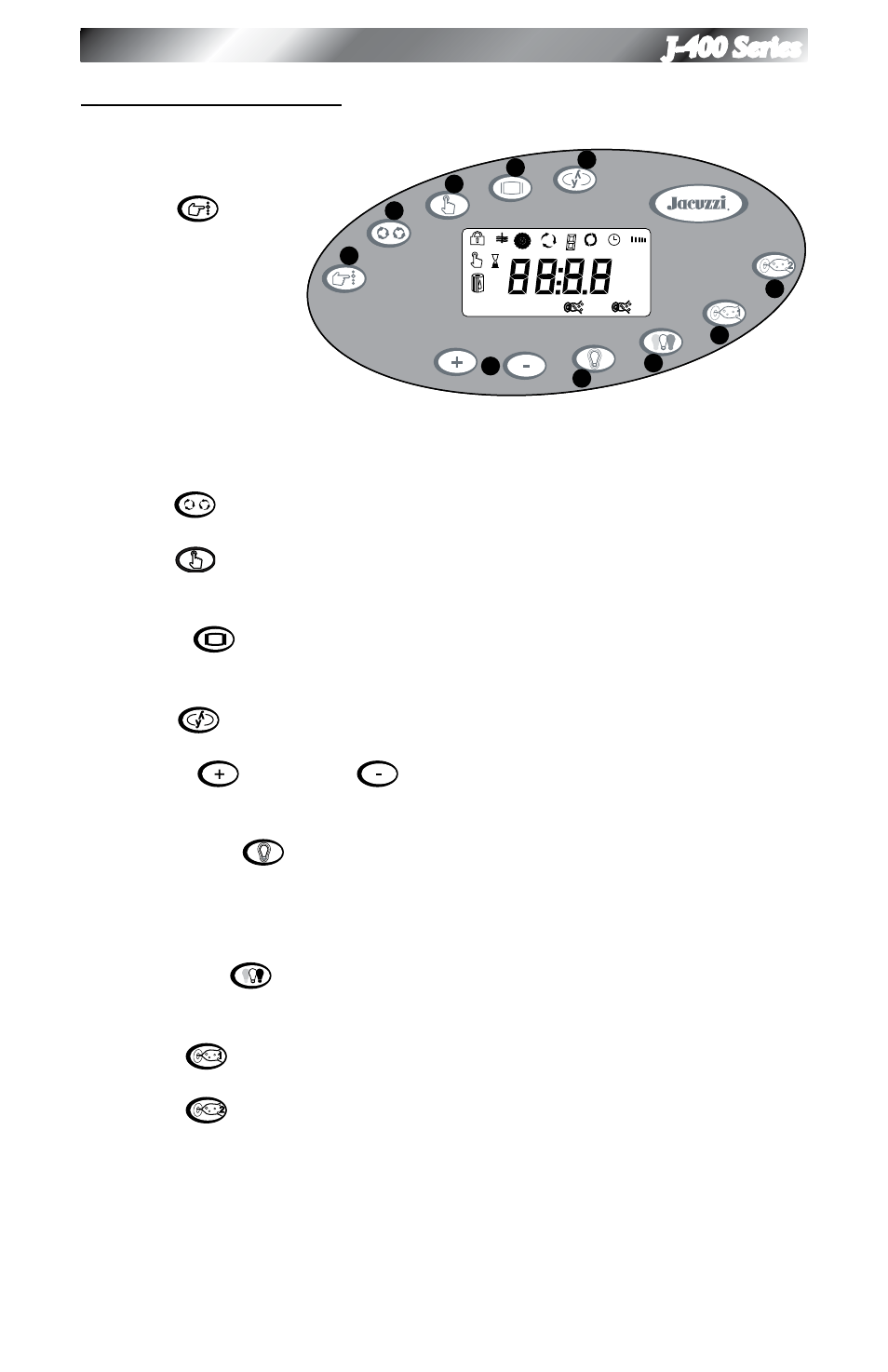

8.1 Control Panel
A. Select
Button: Filter
cycle program-
ming features.
Pressing the select
button also allows
you to turn on/off
the circulation
pump, when it is in an off state. If the circulation pump was turned on
automatically, it cannot be manually turned off.
B. Cycle Button: Accesses filter cycle program mode and next cycle.
C. Mode Button: Switches between standard and economy filtration/
heating modes sections.
D. Display Button: Displays time of day and initiates time setting and
locking functions.
E. Invert Button: Inverts the main 4-digit LCD display.
F. Warmer and Cooler Buttons: Press these to display, increase or
decrease the temperature. They also display other programmable features.
G. Light On/Off Button: Turns waterfall, footwell and logo lights on in
unison. Press once for high intensity; press a second time for medium inten-
sity; press a third time for low intensity; press a fourth time to turn off. The
displayed color is changed using the light mode button (H) below.
H. Light Mode Button: Selects one of 5 color modes for waterfall,
footwell, and logo lights. See page 24 for additional information.
I. JETS 1 Button: Controls jets pump #1 (On, Off).
J. JETS 2 Button: Controls jets pump #2 (On, Off).
