Jacuzzi J - 480 - Manual (Page 15)

Page 11
J-400 Series
BLK
RED
RED
RED
BLK
BLK
1
2

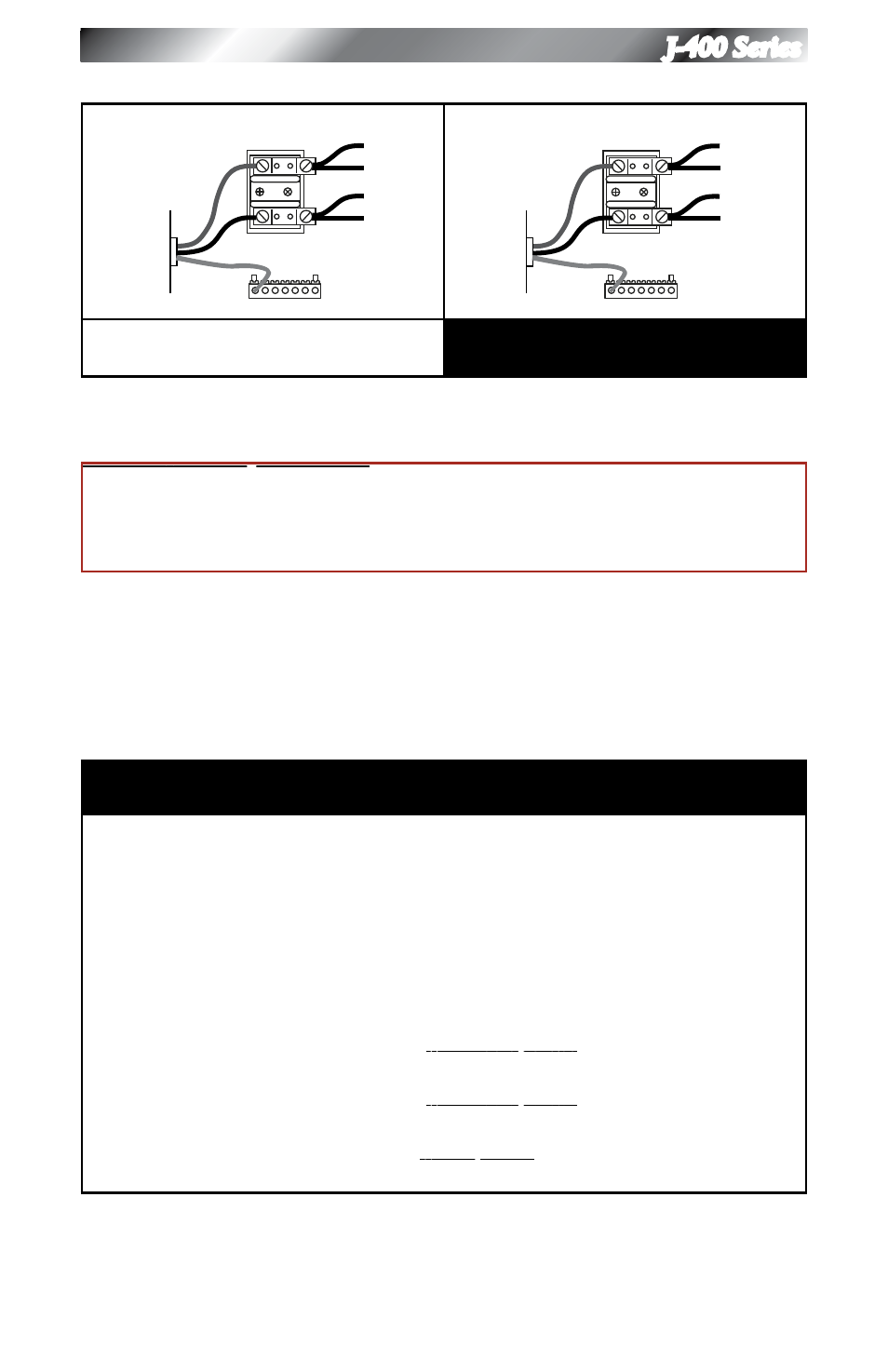

Figure-C TB1
to Circuit
Board
Power In
Green
TB3
1
2
BLUE
BLUE
BROWN
BROWN
Figure-D TB1
to Circuit
Board
Power In
Green
TB3
All North American 240V Models:
120/240 VAC, 3-Wire Connection 60Hz
All Export Models:
230 VAC, 3-Wire Connection 50Hz
6.0 Power Requirements
Jacuzzi® spas are designed to provide optimum performance and flexibility of
use when connected to their maximum electrical service. They are configured at
the factory.
The most common electrical connections are listed below :
• All North American 60Hz Models: 240VAC/50A**
• All Export 50Hz Models: 240VAC/30A**
If you prefer, your qualified technician can perform a minor circuit board modi-
fication that allows the hot tub to operate on a different electrical service (see
table footnotes below).
North American J-460/J-465/J-470/J-480 Models (60Hz)
Voltage: 240VAC 240VAC 240VAC
Max. Current Draw: 23A 36A 45A
Frequency: 60Hz 60Hz 60Hz
Number of Wires: 3 3 3
Circuit Breaker (2-Pole): 30A* 50A** 60A***
* In 30A configuration, the heater will not operate while either jets pump
is running.
** In 50A configuration, the heater will not operate while both jets pumps
are running. This is the factory setting.
*** In 60A configuration the heater will operate while both jets pumps are
running.
