SECTION 4: ELECTRICAL SCHEMATICS

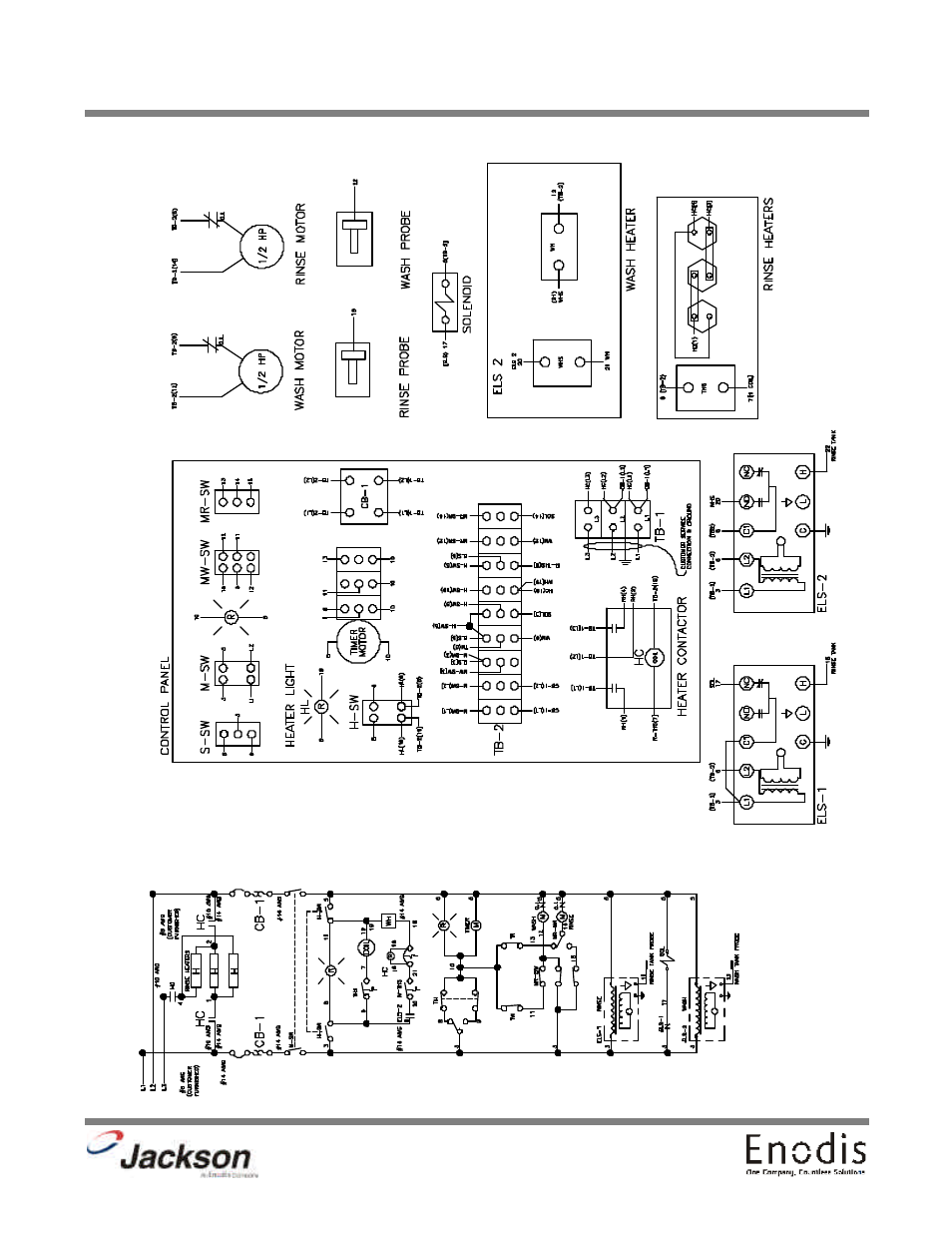

10APRB WIRING DIAGRAM (208-230 VOLT, 60HZ, THREE PHASE)

9905-002-55-92a
