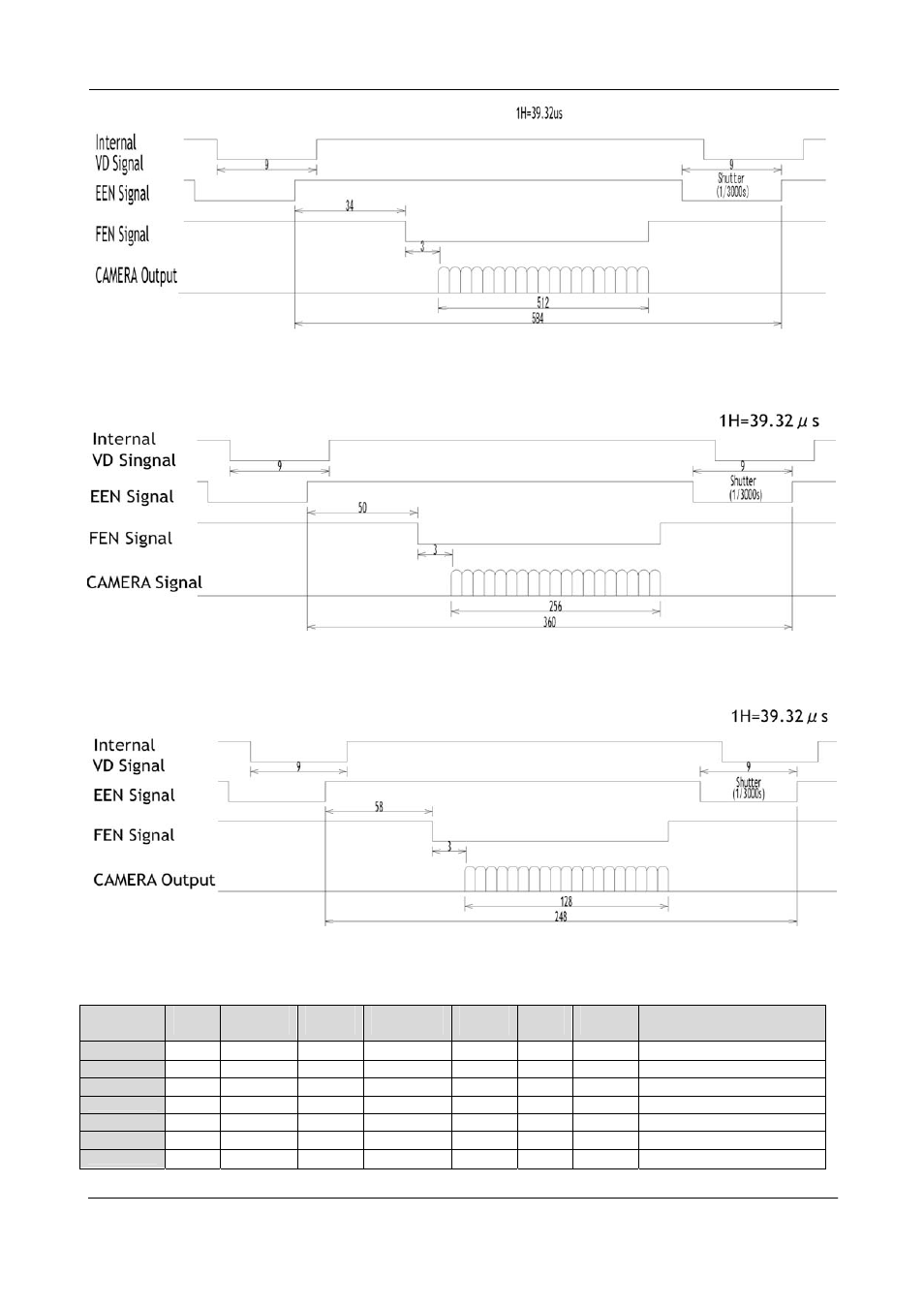

Fig. 18. Vertical timing details with 1/2 partial scanning.
Fig. 18A. Vertical timing details with 1/4 partial scanning.
Fig. 18B. Vertical timing details with 1/8 partial scanning.
Table showing timing figures for continuous modes
Scanning
mode Lines/
frame Lines in
video out Pixels/
line Pixels/line
in video out H time
µs Rate
fps Pix clk
MHz Remarks
Full 1060 1030 1592 1380 39.32 24 40.49
H binning removed on rev. B
V binning 565 515 1752 1380 43.27 44 40.49
H binning removed on rev. B
1/2 partial 588 512 1552 1380 39.32 44 40.49
1/4 partial 360 256 1552 1380 39.32 70 40.49
1/8 partial 248 128 1552 1380 39.32 102 40.49
