Intel Desktop Board D845PESV Product Guide
66
Back Panel Connectors

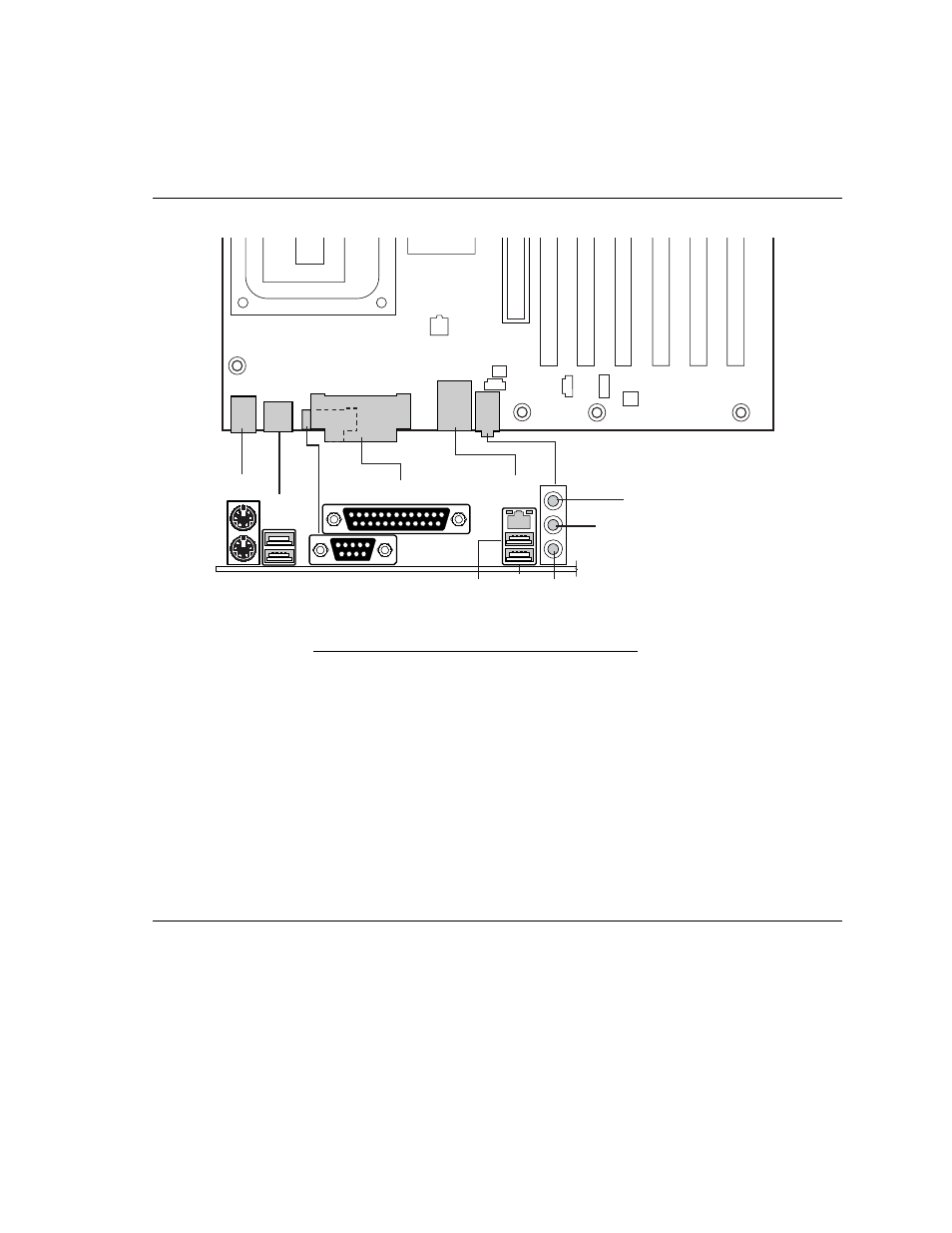

Figure 14 shows the back panel connectors.
OM14732
A
B
C
D
E
F
G
H I
J
K
L
Item Description Color
A PS/2 mouse port Green
B PS/2 keyboard port Purple
C USB 2.0 port 0 Black
D USB 2.0 port 1 Black
E Parallel port Burgundy
F Serial port A Teal
G RJ-45 (optional) Black
H USB 2.0 port 2 Black
I USB 2.0 port 3 Black
J Mic in Pink
K Audio line out Lime green
L Audio line in Light blue
Figure 14. Back Panel Connectors
✏
NOTE
The line out connector, located on the back panel, is designed to power either headphones or
amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
