BATTERY CHARGING
5

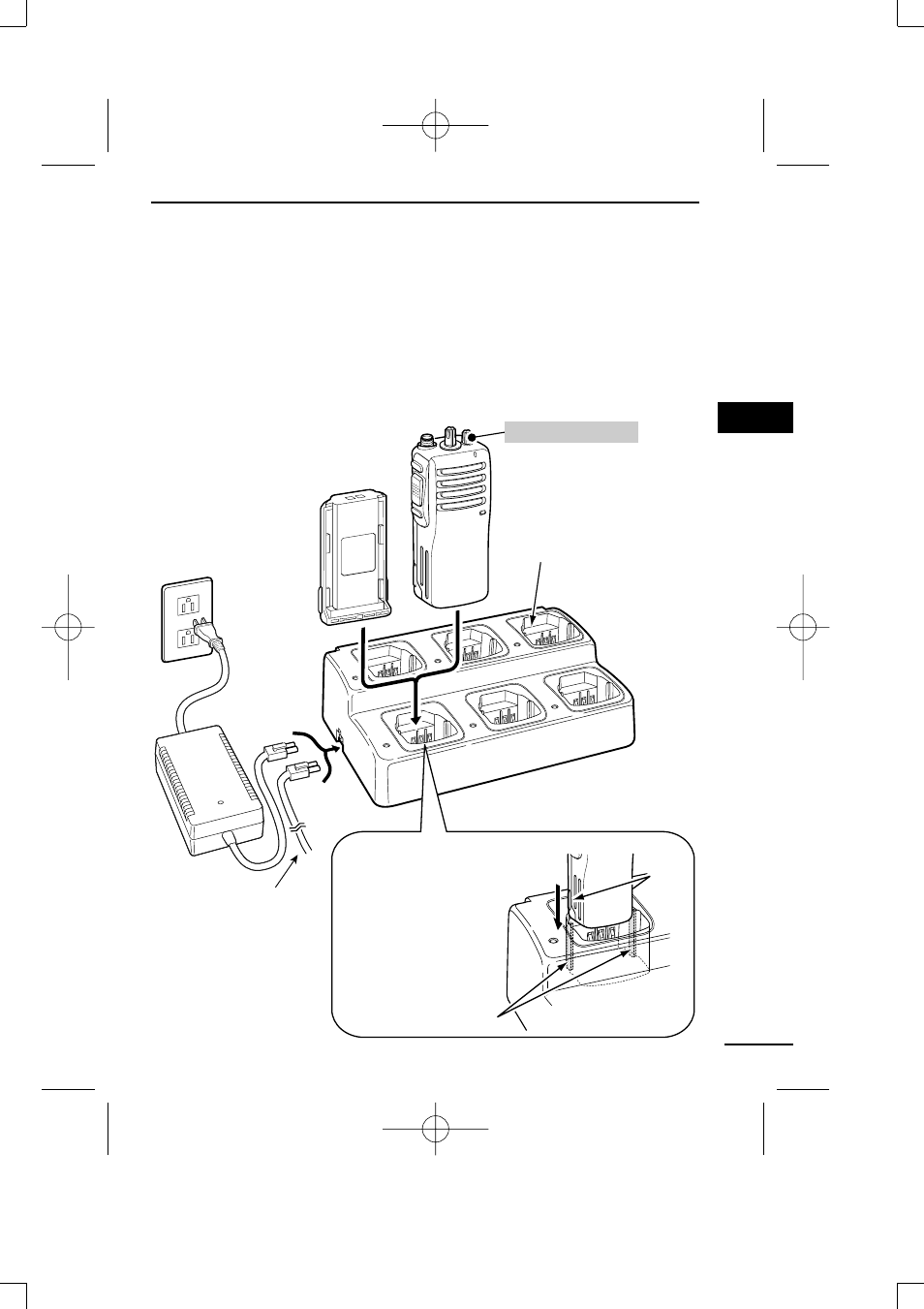

D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be charged
simultaneously. The following items are additionally required.
• Six AD-106.
• An AC adapter (BC-157) or the DC power cable (OPC-656)
AC adapter
(Purchase
separately)
AD-106 charger
adapters are installed
in each slot.
DC power cable
(OPC-656)
(Connect with the
DC power supply;
13.8 V/at least 7 A)
IMPORTANT!:
Ensure the guide
lobs on the bat-
tery pack are
correctly aligned
with the guide
rails inside the
charger adapter.
Guide rails
Lobs
Battery pack
Transceiver
Turn power OFF
