BATTERY CHARGING
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of optional Li-Ion
battery packs.
The following items are additionally required:
• One AD-106
(purchase separately) .
• An AC adapter (may be supplied with BC-119N depending on ver-
sion) or the DC power cable (OPC-515L/CP-17L).

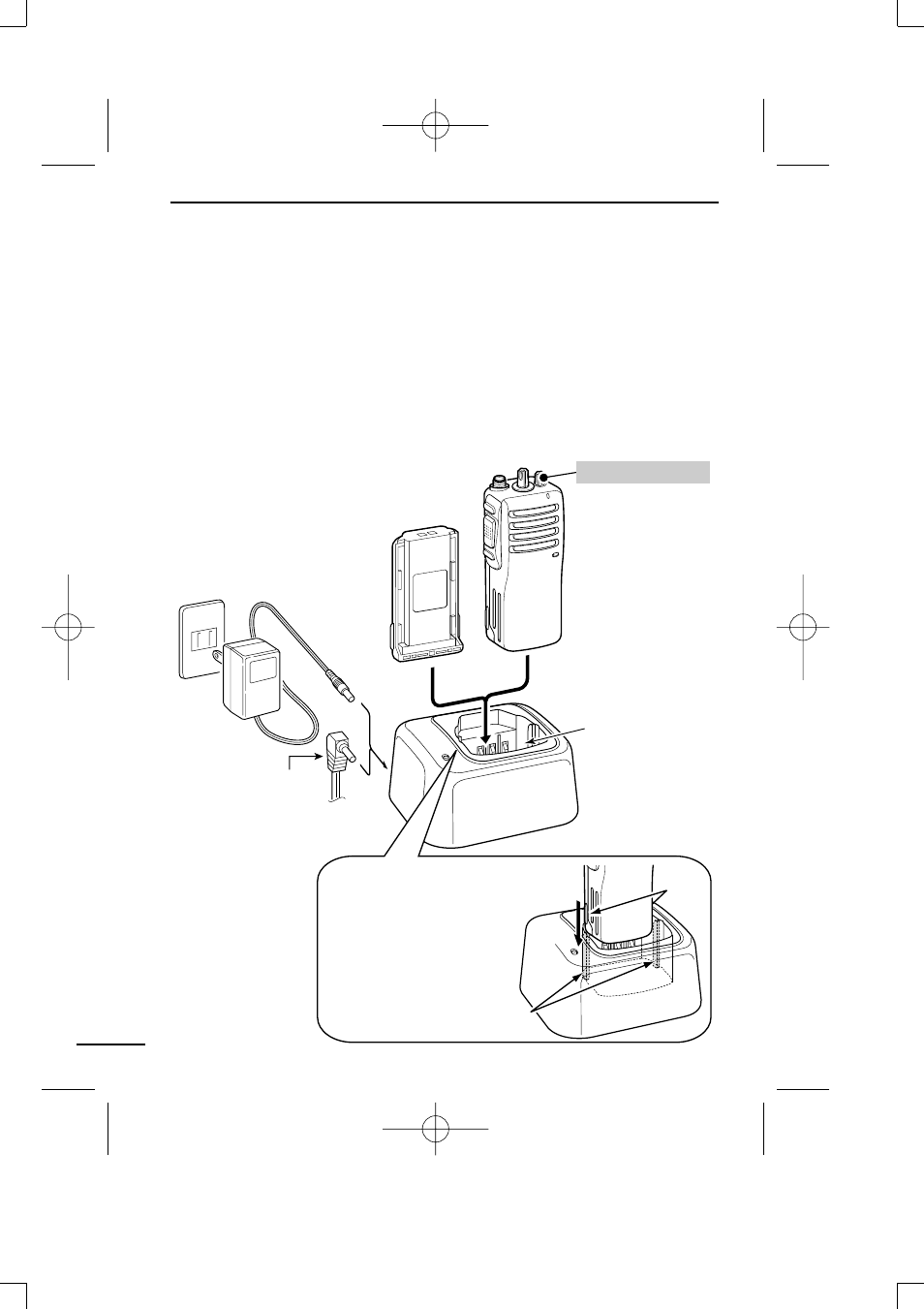

AD-106 charger
adapter is installed
in BC-119N.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
Battery pack
Transceiver
IMPORTANT!:
Ensure the guide
lobs on the bat-
tery pack are
correctly aligned
with the guide
rails inside the
charger adapter.
Lobs
Guide rails
Turn power OFF
