18
4
OPTIONAL UNIT INSTALLATION
■ Optional unit installation
Install the optional unit as follows:
q Rotate [VOL] to turn the power OFF, and remove the battery
pack. (p. 3)

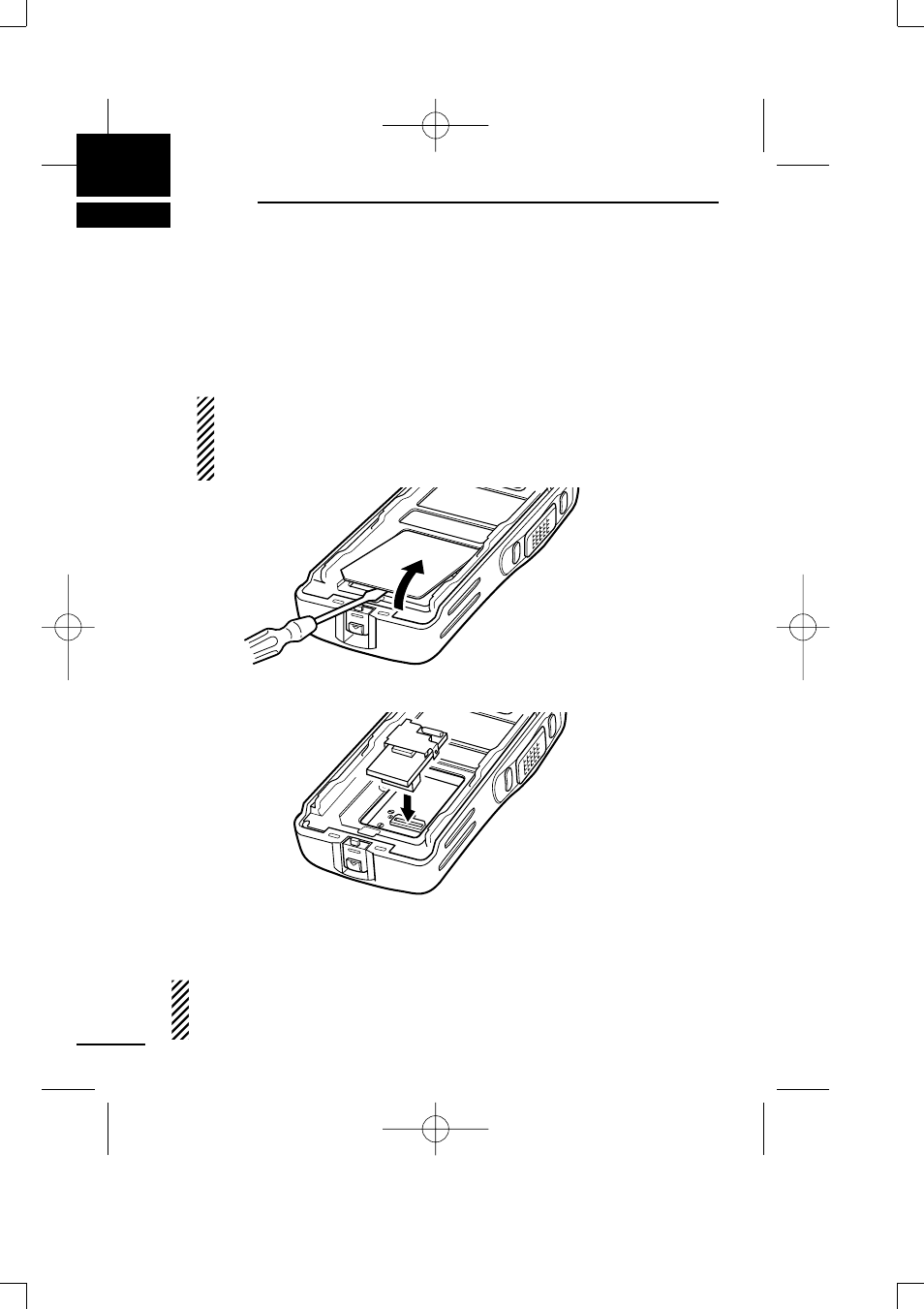

w Remove the unit cover.
NOTE: Use a flat head screw driver or a similar flat instru-
ment, and insert into the hollow of the chassis, then lift and
take away the unit cover. (The removed cover cannot be used
again.)
e Install the unit as shown below.
r Replace the unit cover and the battery pack, then rotate [VOL] to
turn the power ON.
NOTE: The optional UT-109/UT-110
SCRAMBLER UNITS
requires
some PC board modifications. Please refer to the additional in-
stallation as at right.
*This illustration is
described with the
UT-110.
