BATTERY CHARGING
■ Optional battery chargers
D Rapid charging with the BC-160

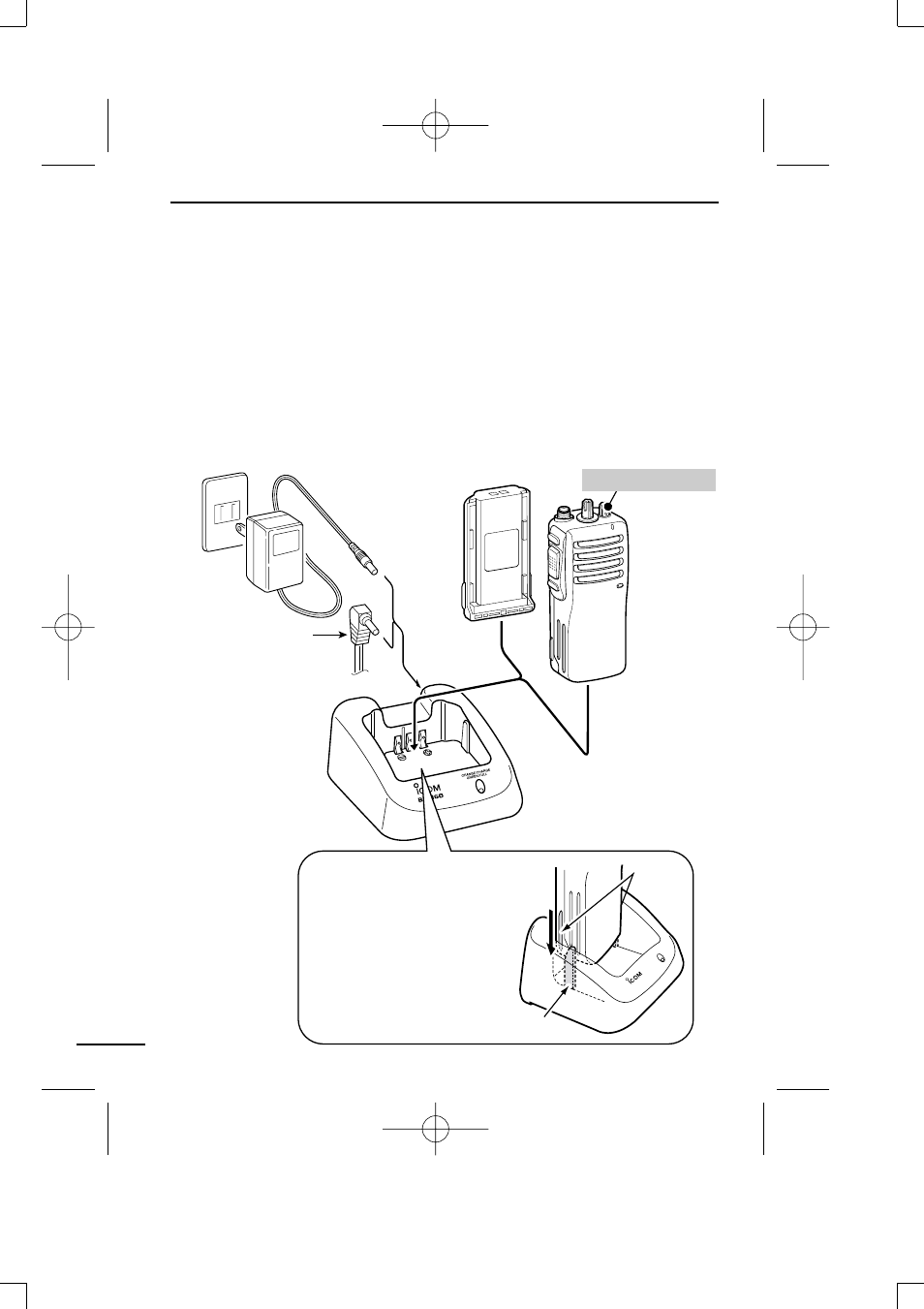

The optional BC-160 provides rapid charging of optional Li-Ion bat-
tery packs.
• An AC adapter (may be supplied with BC-160 depending on ver-
sion) or the DC power cable (OPC-515L/CP-17L) is additionally
required.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
Battery pack
Transceiver
Turn power OFF
b c -16
0
IMPORTANT!:
Ensure the guide lobs
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Guide rail
Lobs
