STEP 4 (SEE DIAGRAM 4)
A.) Attach the hole-side of the Backrest Supports (#28) onto both ends of the Pivot on the
Main Seat Support (#32). The other side rest against the Backrest Adjustment Bar
(#10).
B.) Place the Backrest Board (#33) onto the Backrest Support (#28). Fasten it with four M6
x 1 3/8” Bolts (#31) and
∅
½” Washers (#30).
C.) Place Seat Cushion (#34) onto the bracket on the Main Seat Support (#32). Align the
holes and fasten the Seat with four M6 x 1 3/8” Bolts (#31) and
∅
½” Washers (#30).
D.) Insert the Arm Curl Stand (#44) into the opening on the top of the Front Stabilizer (#49).
Secure it with a Knob Bolt (#41).
E.) Attach the Arm Curl Pad (#35) to the Arm Curl Stand (#44). Secure it with two M8 x 5/8”
Bolts (#27) and
∅
¾” Washers (#37).

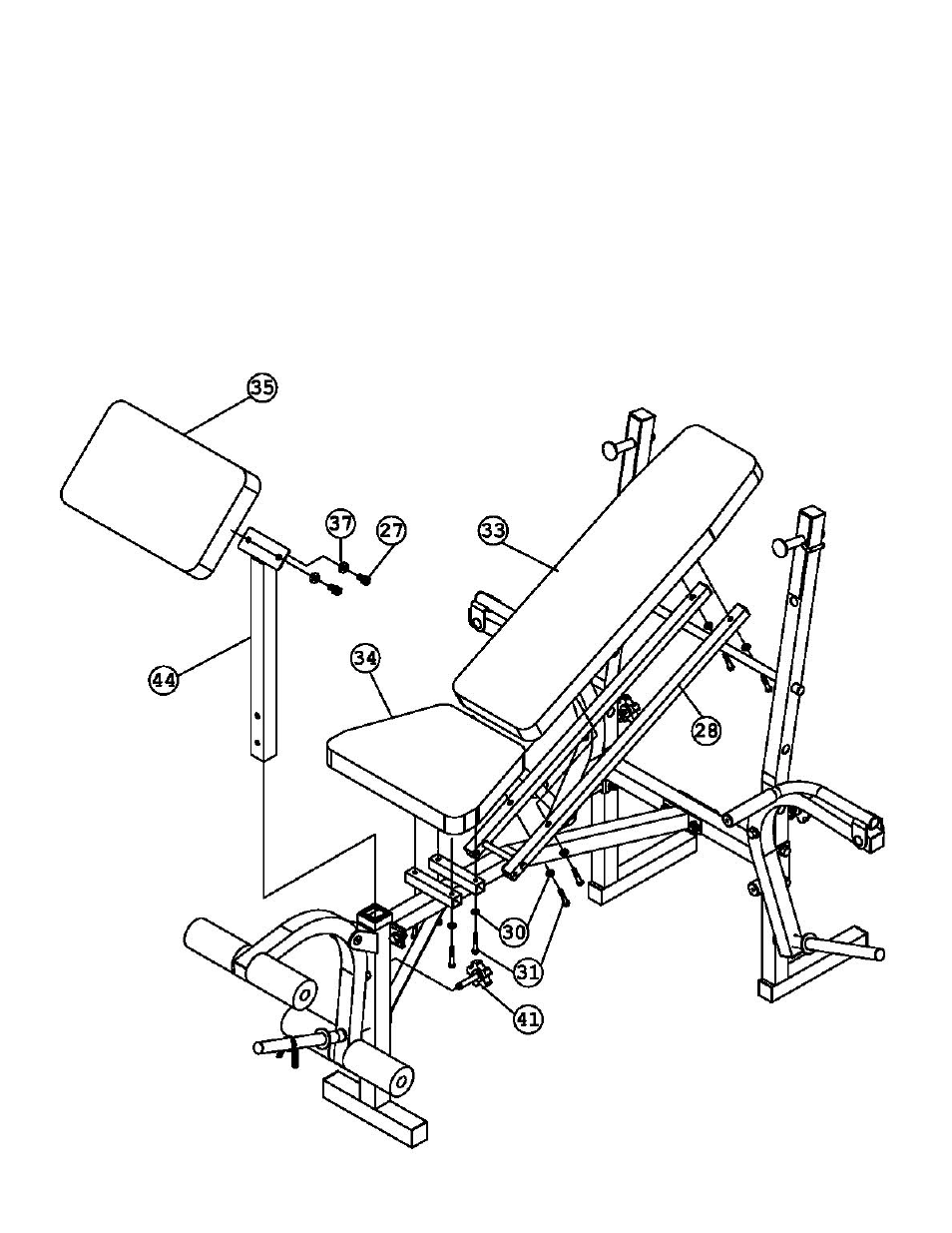

DIAGRAM 4
