STEP 3 (SEE DIAGRAM 3)
A.) Attach a
∅
7/8” Washer (#13) onto a M10 x 4 ½” Bolt (#24). Insert the Bolt through the
Butterfly (#22). Place a M10 Regular Nut onto the Bolt. Then insert the Bolt through
the hole on the Rear Upright Beam (#1). Secure the Bolt with a Knob (#11) behind
the Upright Beam. Repeat the same step to install the other Butterfly.
B.) Attach the Left Butterfly Handle (#19) to the Left Butterfly (#22). Secure it with a M10
x 2 ¼” Bolt (#18),
∅
7/8” Washer (#13), and M10 Aircraft Nut (#15). Repeat the same
step to install the Right Butterfly Handle (#21).
C.) Attach the Leg Developer (#47) onto the bracket on the Front Stabilizer (#49).
Secure it with a Hex Socket Axle (#43) and Hex Socket Screw (#46).
D.) Insert two Foam Roll Tubes (#48) halfway through the holes on the Leg Developer
(#47). Push four Foam Rolls (#39) onto the tubes from both sides.
E.) Place a Spring Clip (#4) onto the weight holder on the Leg Developer.

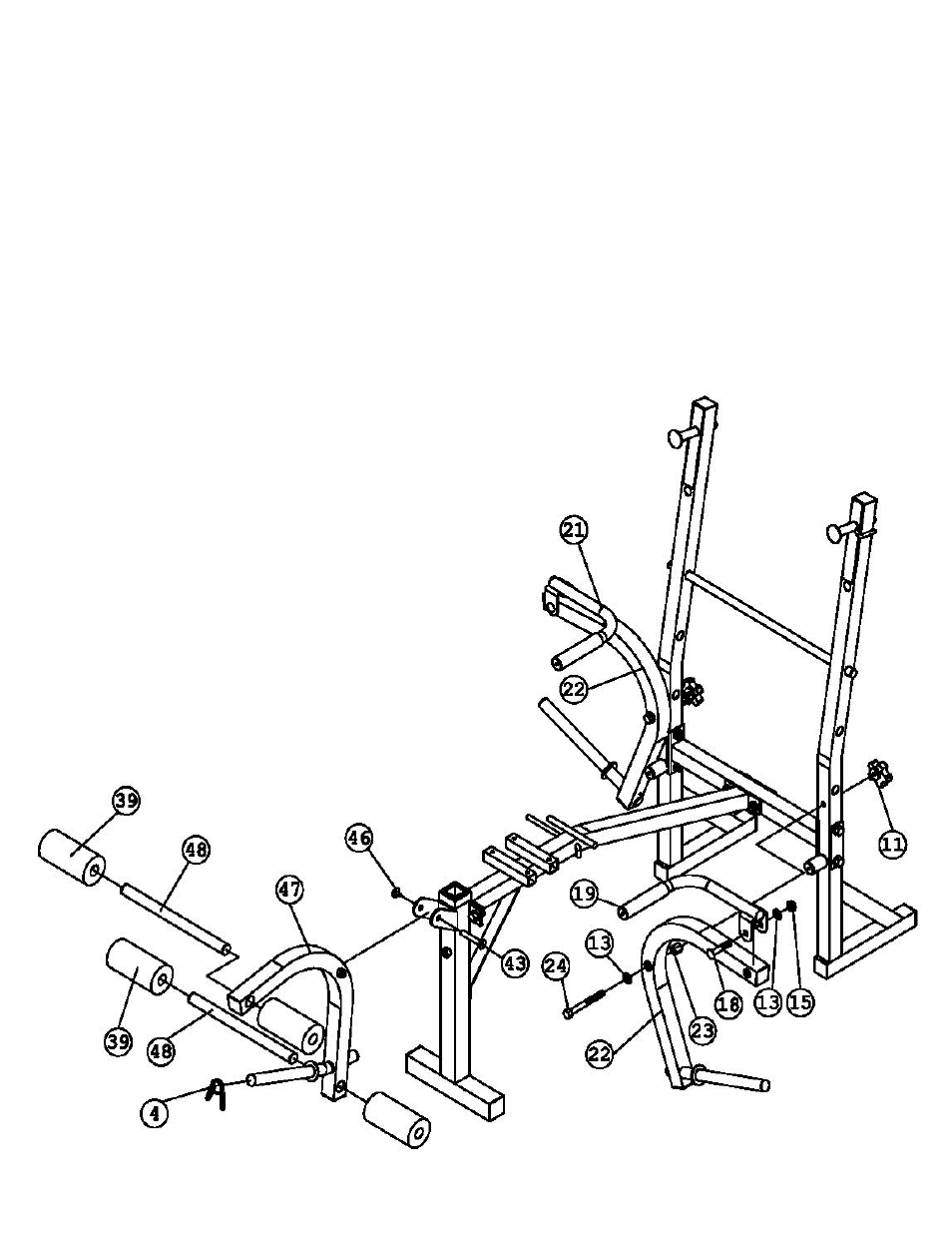

DIAGRAM 3
