Page 5

ASSEMBLY INSTRUCTION

Tools required to assembly the machine:
Two Adjustable Wrenches

STEP 1

(SEE Diagram 1)

A.) Connect the two Rear Upright Beams (#1) by a Cross Brace (#25) in the Mid-span.

Fasten them by two M10x 2 3/8” Bolts (#14), four

∅

7/8” Washers (#13), one Bracket

(#12), and two M10 Aircraft Nuts (#15) on each side of the Cross Brace. DO NOT
tighten the nuts and bolts yet.

B.) Insert the Backrest Adjustment Bar (#10) through a selected hole to obtain desired

incline of Backrest.

C.) Insert two Bar Catches (#2) & (#6) into the selected hole on the Rear Upright Beams

(#1) to obtain the desired height to hold the weight bar.

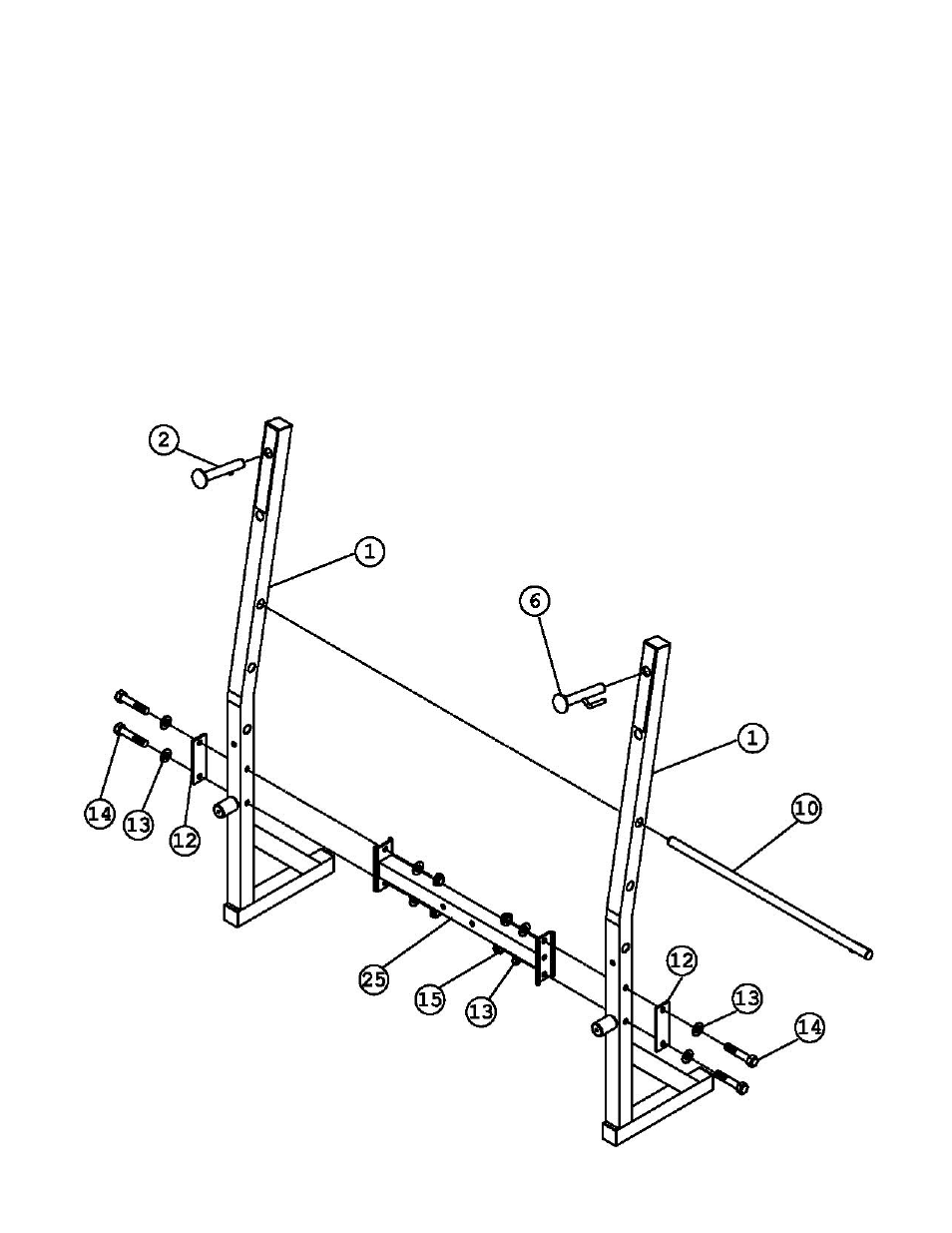

DIAGRAM 1
