Intel U3-1L User Manual
Page 6
6
Intel Server RAID Controller U3-1L (SRCU31L)
Quick Start Guide

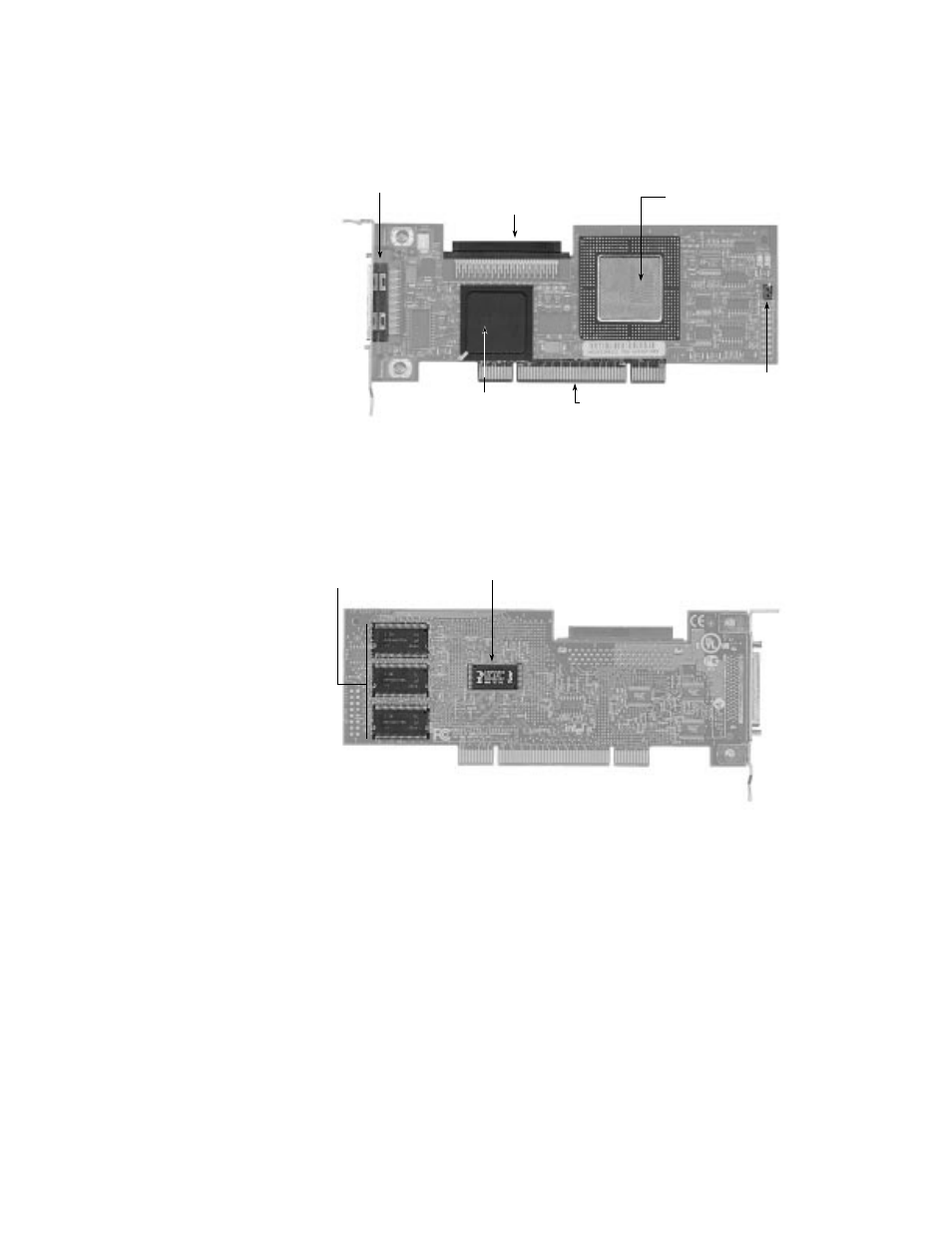

Intel Server RAID Controller U3-1L Low Profile Adapter Card
Front View
A
B
C
D
E
F
OM10805
A
External VHDCI
Connector
D
Flash Recovery
(FRU) Jumper
B
Internal 68-pin Connector
E
PCI 32-bit 33 MHz
C
Intel i960 RS I/O
Processor
F
Ultra 160 SCSI LSI
Logic SYM53C 1000
Back View
B
A
OM10806
A
SDRAM 16 MB
Unbuffered PC 100, ECC
B
16 Mb Flash
