STEP 3 (See Diagram 3)

A.) Attach the Seat Pad (#40) to the Seat Adjustment Frame (#41). Secure it with four

M8 x 1 3/8” Allen Bolts (#43) and

5/8” Washers (#42).

B.) Slide a

2” Washer (#49) onto the rod on the Swing Arm (#34). Push the Large

Foam Roll (#37) onto the rod. Secure it with a

2” End Cap (#38) and M10 x ¾”

Allen Bolt (#32).

C.) Insert two Foam Roll Tubes (#6) halfway through the holes on the Foot Adjustment

Frame (#5). Push two Foam Rolls (#8) onto the top tube. Plug two

1” Foam Roll

End Caps (#9) to the ends.

D.) Slide two Handle Grips onto the bottom tube.

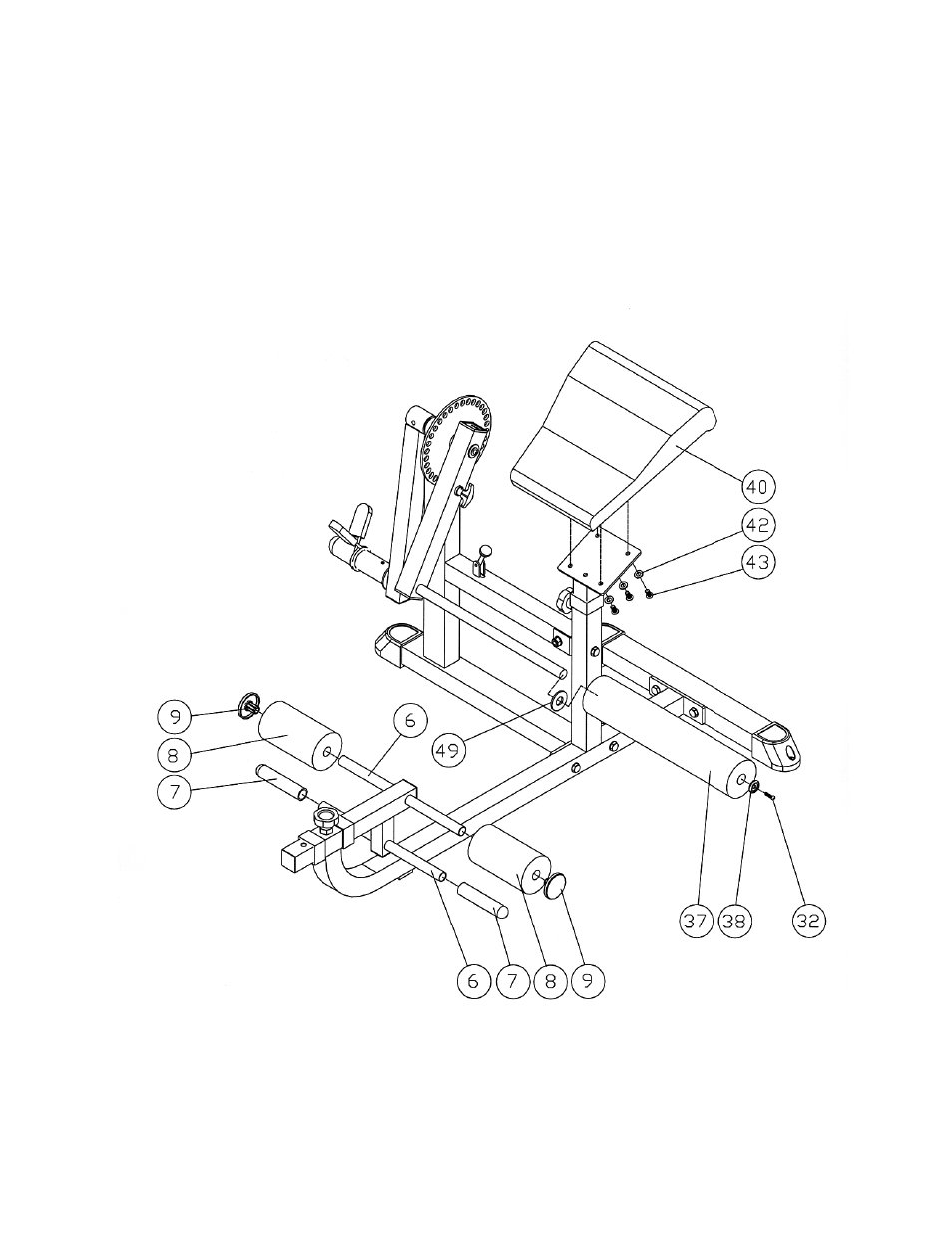

DIAGRAM 3
