STEP 2 (See Diagram 2)
A.) Slide a
∅
1 ½” Plastic Washer (#23) onto the axle on the Adjustment Plate (#25).
Insert the axle through the barrel on the Main Frame. Slide another
∅
1 ½” Plastic
Washer (#23) onto the axle.
B.) Slide the Weight Holder Bar (#13) onto the axle. Align the holes and insert a Roll
Pin (#22) through the hole. Use a hammer to drive in the Roll Pin.
C.) Attach the Swing Arm (#34) to the axle. Secure it with a M10 x ¾” Allen Bolt (#32)
and
∅
1 3/8” Washer (#31). Attach the T-shaped Pull Pin (#33) onto the Swing
Arm to lock the plate in position.
D.) Slide the Olympic Sleeve (#14) onto the Weight Holder (#13). Clip the Spring Clip
(#17) onto the Olympic Sleeve. Plug the Olympic Sleeve End Cap (#15) into the
end.

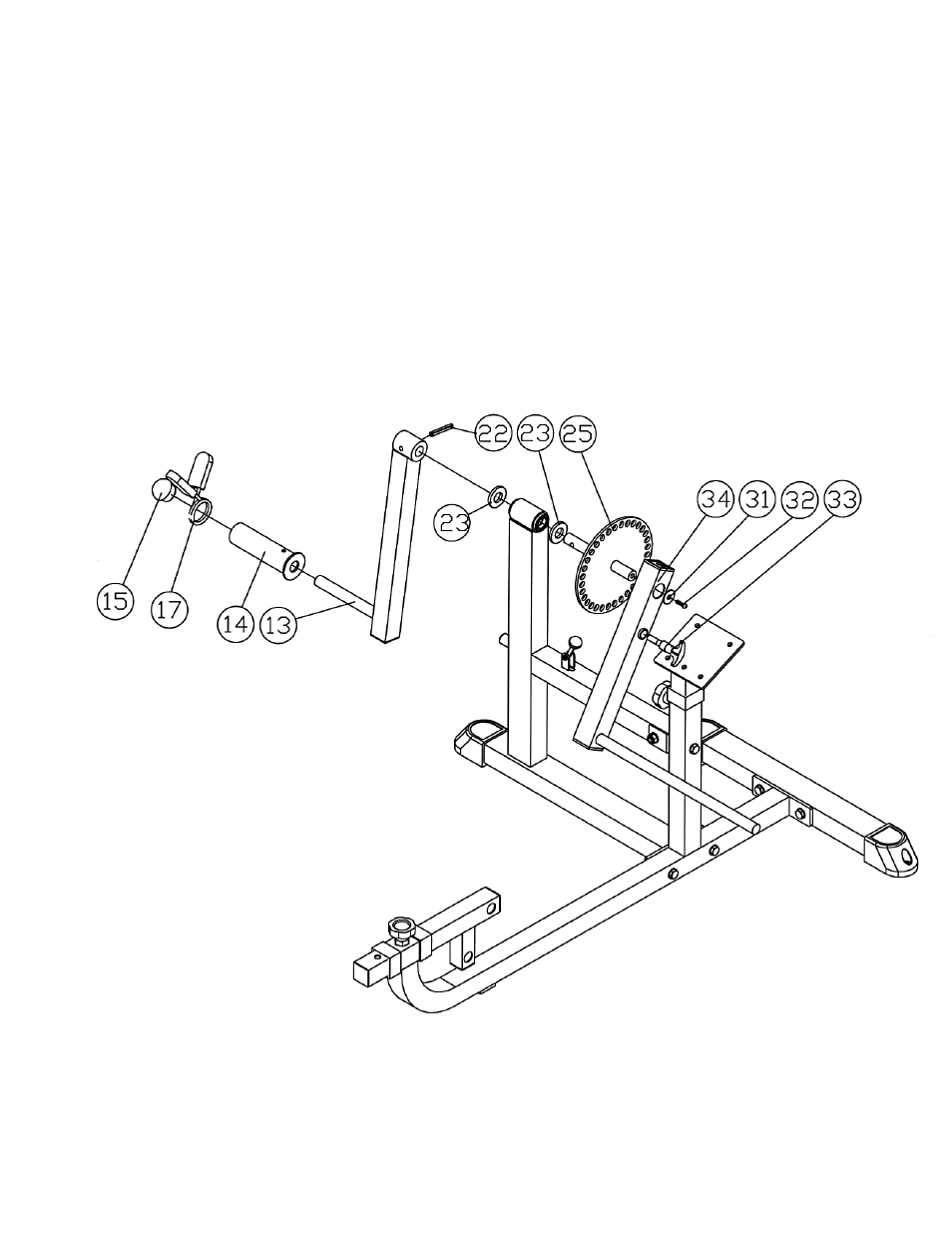

DIAGRAM 2
5
