ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Adjustable Wrench, Allen Wrench
and Hammer
NOTE: It is strongly recommended this machine to be assembled by two or
more people to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Attach the Rear Stabilizer (#45) to the Base Frame (#1). Secure it with two M10 x
3 ½” Carriage Bolts (#48),
∅
¾” Washers (#10) and M10 Aircraft Nuts (#11).
B.) Attach a U-shaped Bracket (#36) to the Base Frame (#1). Secure it with a M10 x
2 ¾” Allen Bolt (#44), two
∅
3/4” Washers (#10) and a M10 Aircraft Nut (#11).
C.) Attach the Main Frame (#12) to the Base Frame (#1). Secure the bottom beam
with two M10 x 2 ¾” Carriage Bolts (#35),
∅
3/4” Washers (#10), and M10 Aircraft
Nuts (#11). Secure the upper beam to the U-shaped Bracket (#36) with a M10 x
2 ¾” Allen Bolts (#44), two
∅
¾” Washers (#10), and one M10 Aircraft Nut (#11).
D.) Insert the Seat Adjustment Frame (#41) into the opening on the Base Frame
(#1). Insert a Lock Knob (#3) to secure the seat position.
E.) Insert the Foot Adjustment Frame (#5) into the opening on the front of the Base
Frame. Insert a Lock Knob (#3) to secure the position.

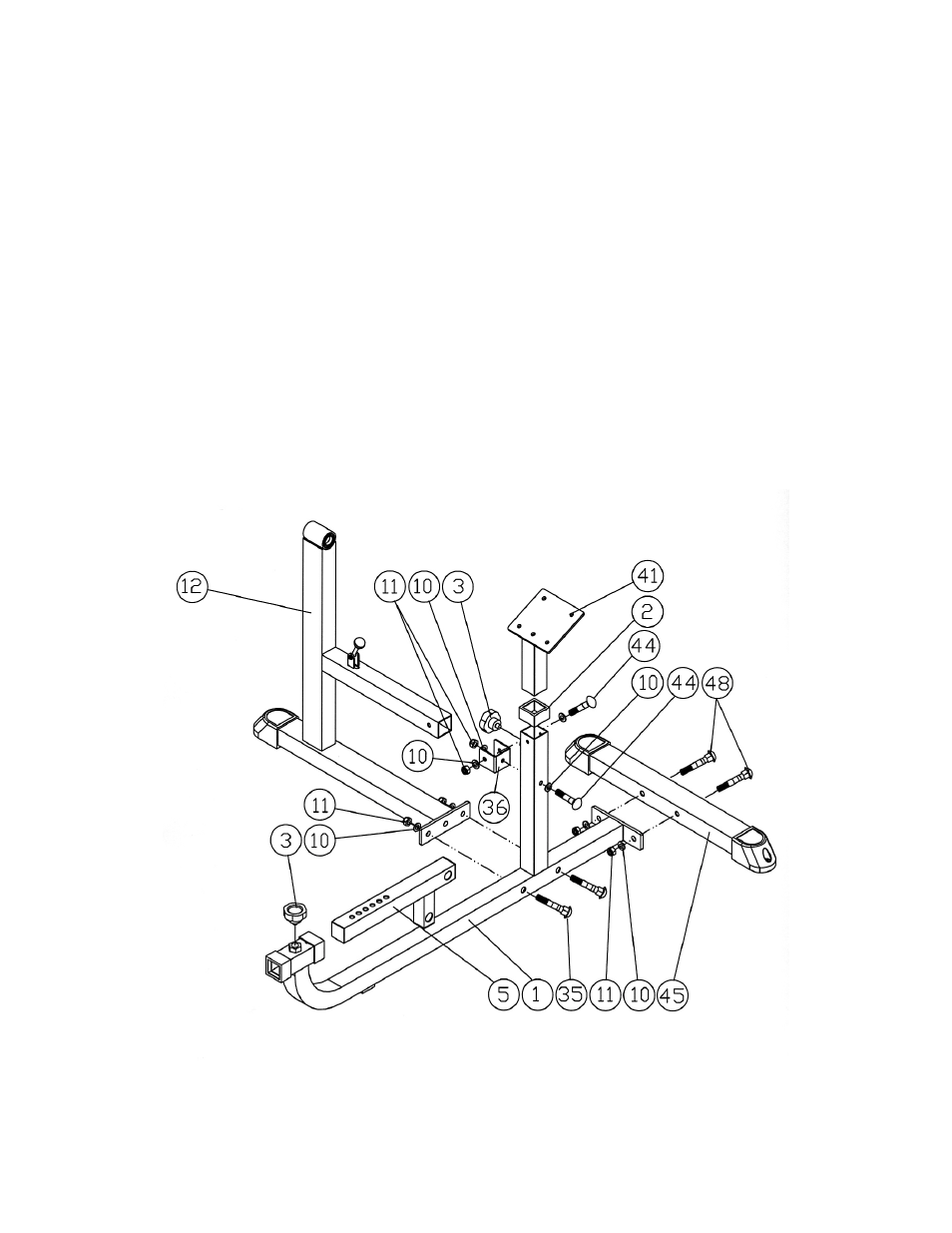

DIAGRAM 1
4
