Please note:
1.
This wall bracket may be secured onto the wall by using mounting holes “B” and
“D”
2.
Lugs to break off before wall mounting the phone.

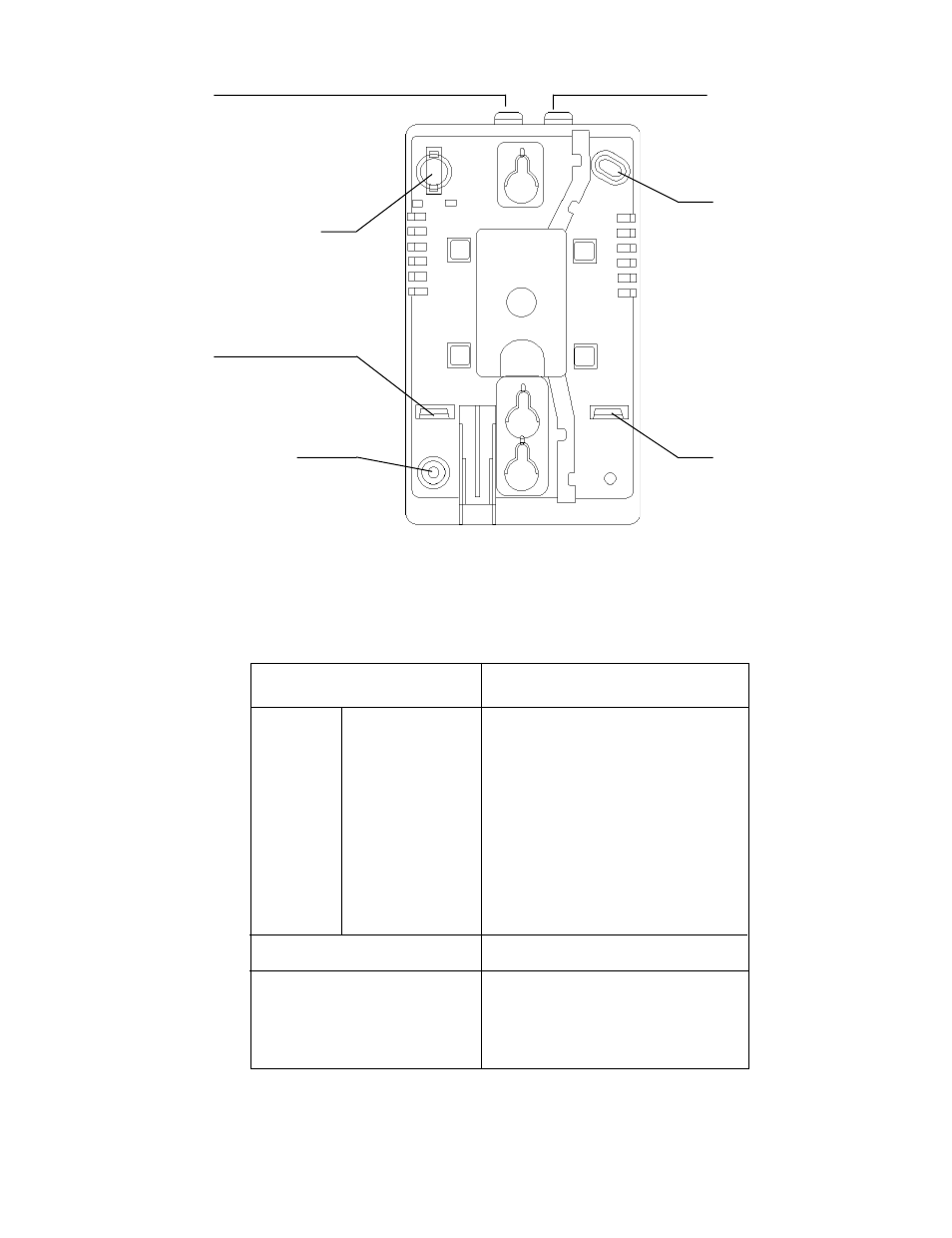

FIGURE 7: IQ235 WALL MOUNT BRACKET - BREAK-OFF LUGS
MOUNTING HOLE "F"
MOUNTING
HOLE "E"
LUG "D"
PIVOT FOR SWING-OUT
PLATE USED FOR
MODEL IQTEL 25
LUG "A"
LUG "C"
LUG "B"
IQ750
IQTEL 80
IQTEL 300
IQTEL 500
IQTEL E1
IQTEL E2
IQTEL E3
IQTEL ET
STUDIO 20
GEMINI SERIES
IQ 90
IQ 150
IQ 250
IQ 260
IQ 360
IQ 350
IQ 450
IQ 550
IQ 560E
IQ E2
IQ E3
BREAK OFF LUGS
"B" and "D"
"A" and "C"
"A" ONLY
TELEPHONE MODELS
IQTEL 25
IQ 300
9853 XT
9835 MKII
9836
9837
