Connecting to the internal headers, Internal headers – Intel D425KT User Manual
Page 30
Intel Desktop Board D425KT Product Guide
30
Connecting to the Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page 23. Figure 9 shows the location of the board’s internal headers.

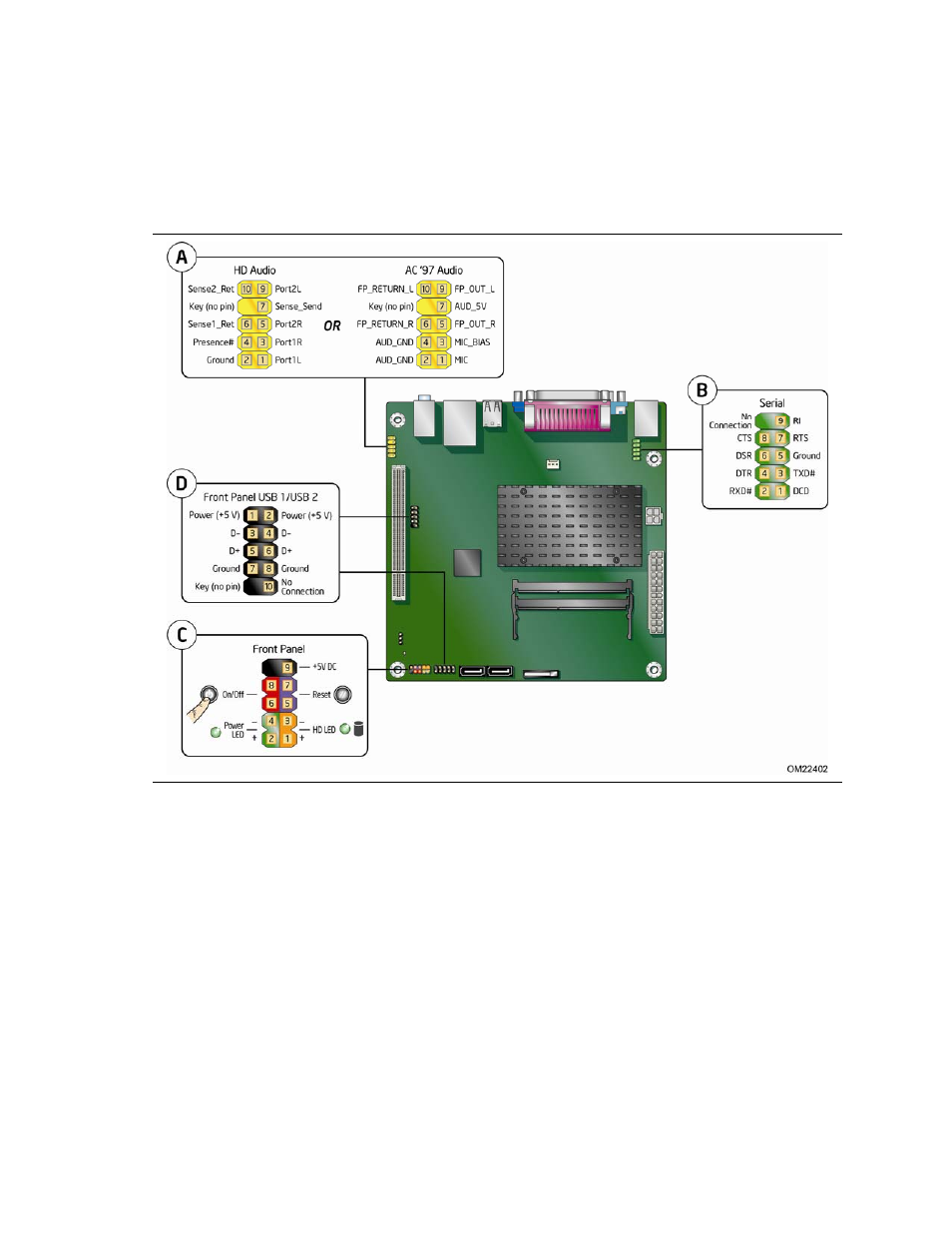

Figure 9. Internal Headers
