Location of the standby power indicator, 5 v standby power indicator – Intel D425KT User Manual
Page 19
Desktop Board Features
19
+5 V Standby Power Indicator
CAUTION
If the AC power has been switched off and the standby power indicator is still lit,
disconnect the power cord before installing or removing any devices connected to the
board. Failure to do so could damage the board and any attached devices.
The Desktop Board’s standby power indicator, shown in Figure 4, is lit when there is
standby power to the system. This includes the DIMM sockets and the PCI bus
connector, even though the computer appears to be off.

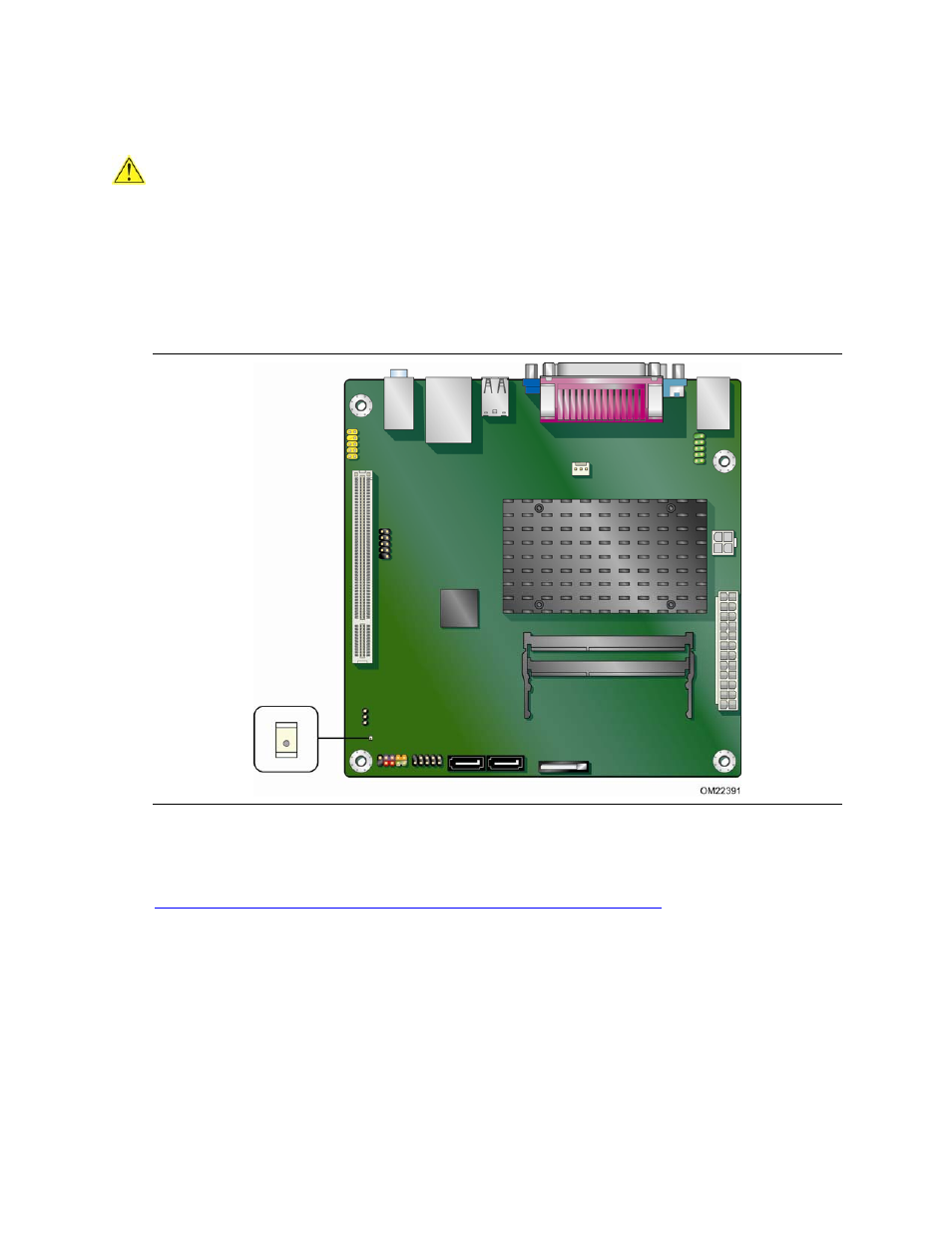

Figure 4. Location of the Standby Power Indicator
For more information on standby current requirements for the Desktop Board, refer to
the Technical Product Specification on the Intel Desktop D425KT web page at
.
